Glass Hatch Lock Actuator Check

1. Turn ignition switch OFF.
2. Check voltage between BCM connector M19 terminal 53 and ground.
   TERMINALS VOLTAGE CHART



   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   M19	53	Ground	Glass hatch switch is turned to depressed	0 --> Battery voltage for 300 ms

OK or NG

• OK : GO TO 2.
• NG : Replace BCM. Refer to "BCM ".

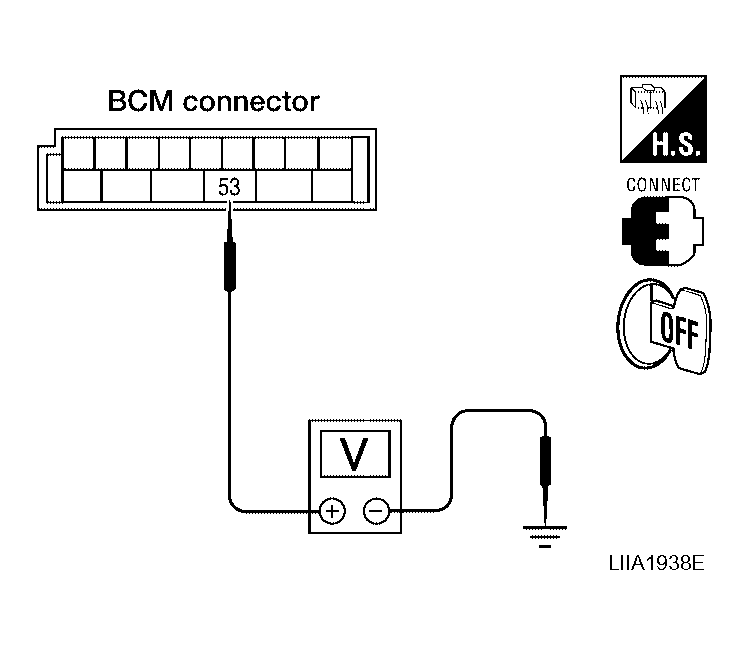

  Fig 1: Identifying Voltage Between BCM Connector M19 Terminal 53 And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect BCM and glass hatch lock actuator.
2. Check continuity between BCM connector M19 terminal 53 and glass hatch lock actuator connector D711 terminal 3.
   TERMINALS CONTINUITY CHART



   Terminals		Continuity
   53	3	Yes

3. Check continuity between BCM connector M19 terminals 53 and ground.
   TERMINALS CONTINUITY CHART



   Terminals		Continuity
   53	Ground	No

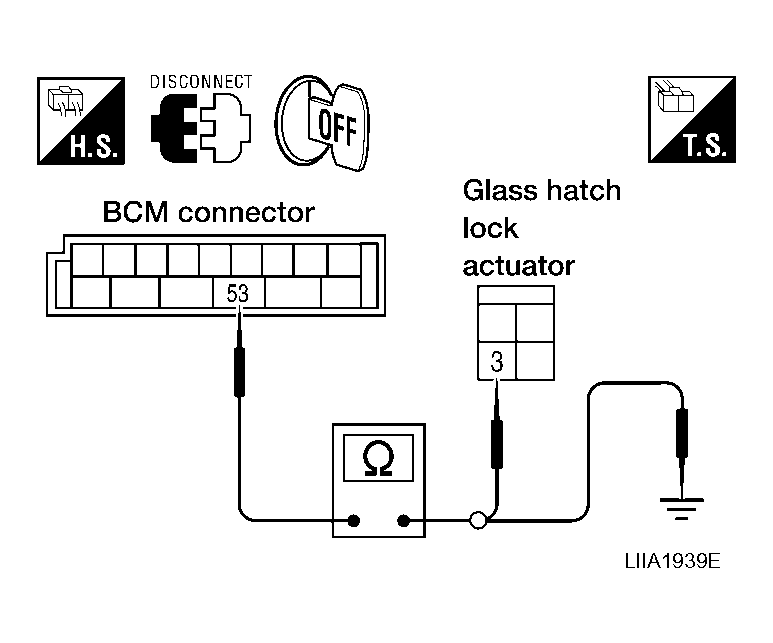

   Fig 2: Identifying Continuity Between BCM Connector M19 Terminal 53 And Glass Hatch Lock Actuator Connector D711 Terminal 3

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : GO TO 3.
• NG : Repair or replace harness.

1. Disconnect glass hatch lock actuator.
2. Check continuity between glass hatch lock actuator connector D711 terminal 1 and ground.
   TERMINALS CONTINUITY CHART



   Terminals		Continuity
   1	Ground	Yes

OK or NG

• OK : Replace glass hatch lock actuator. Refer to "BACK DOOR LOCK ".
• NG : Repair or replace harness.

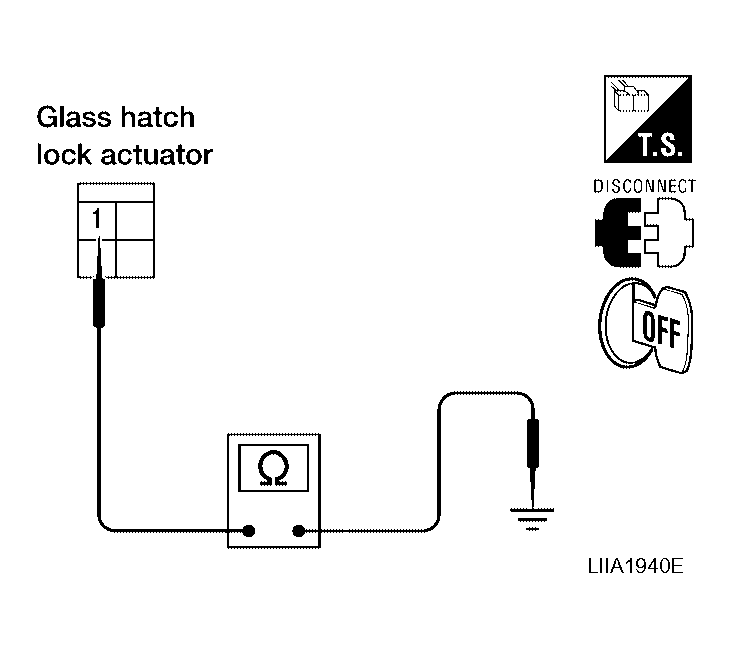

  Fig 3: Identifying Continuity Between Glass Hatch Lock Actuator Connector D711 Terminal 1 And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.
