Body Mounting

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

When removing, be sure to replace bolts and nuts (sealant applied bolts or self-lock nuts are used for all mounting).

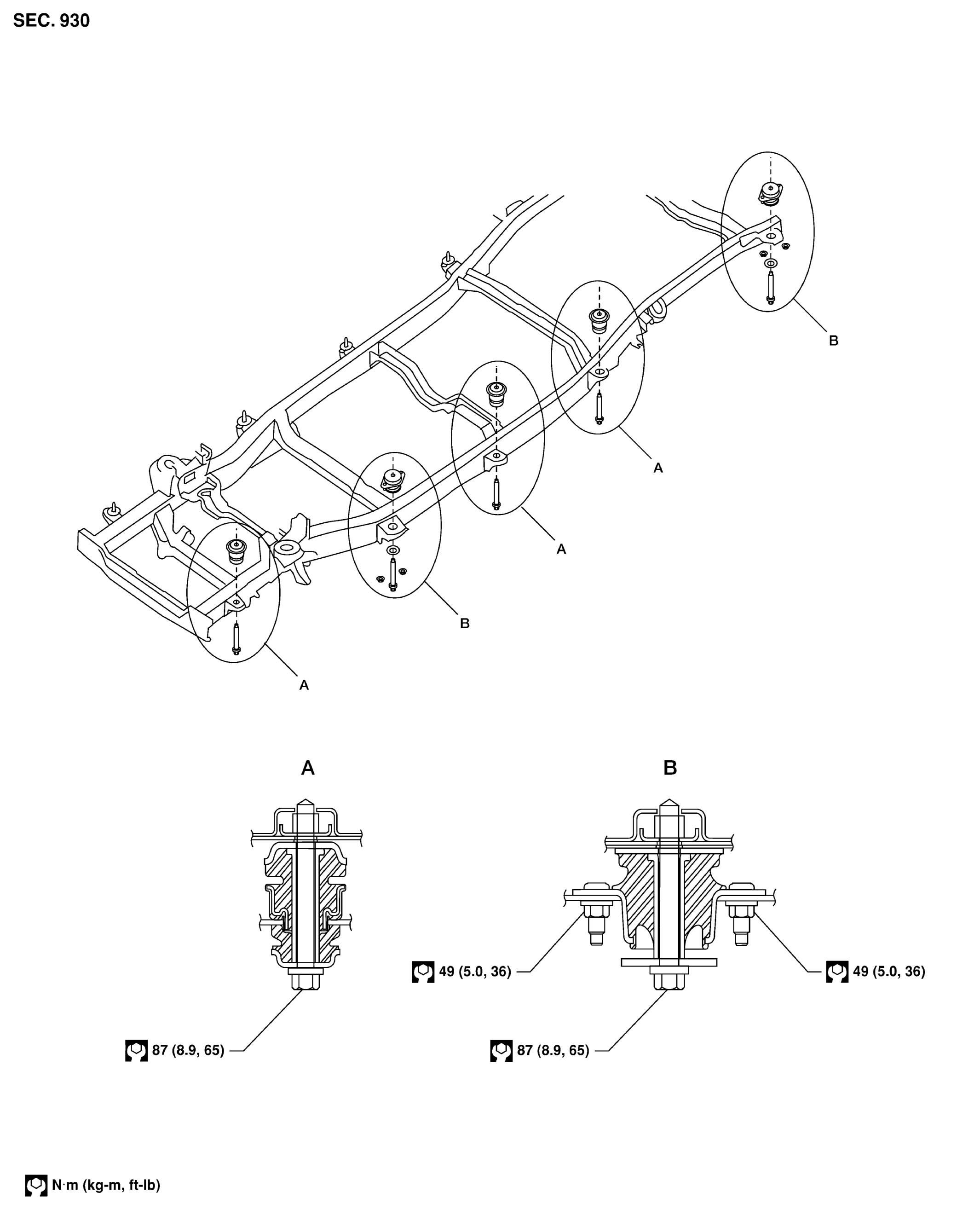

Fig 1: Body Mounting With Torque Specifications (Cab And Rear Body)
G04135183Courtesy of NISSAN MOTOR CO., U.S.A.
