Back Door Warning Chime System Inspection

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

BACK DOOR WARNING CHIME CIRCUIT INSPECTION
1. Disconnect back door warning chime and back door control unit.
2. Check continuity between back door warning chime connector D514 terminal 1 and back door control unit connector B55 terminal 6.
  1 - 6 : Continuity should exist.

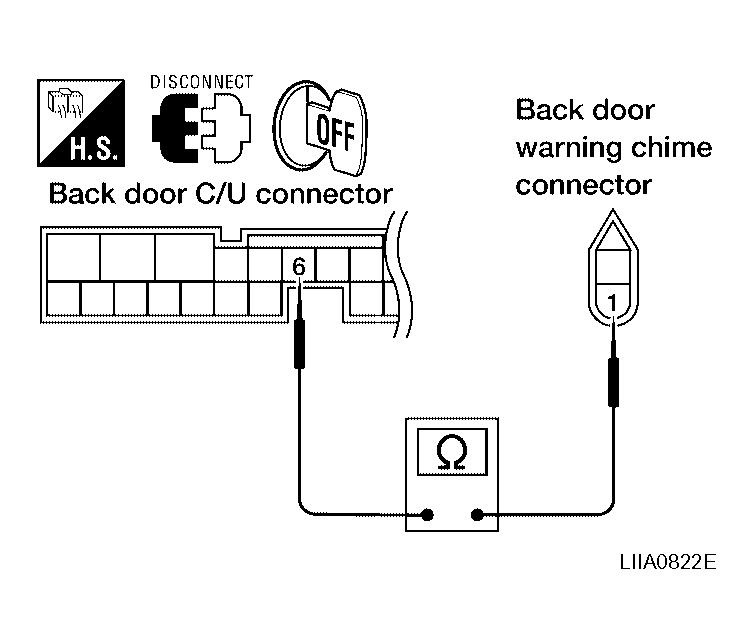

  Fig 1: Identifying Continuity Between Back Door Warning Chime Connector D514 Terminal 1 And Connector B55 Terminal 6
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : GO TO 2.
- NG : Repair or replace harness.
WARNING CHIME CIRCUIT INSPECTION
Check continuity between back door warning chime connector D514 terminal 2 and back door control unit connector B55 terminal 9.

2 - 9 : Continuity should exist.

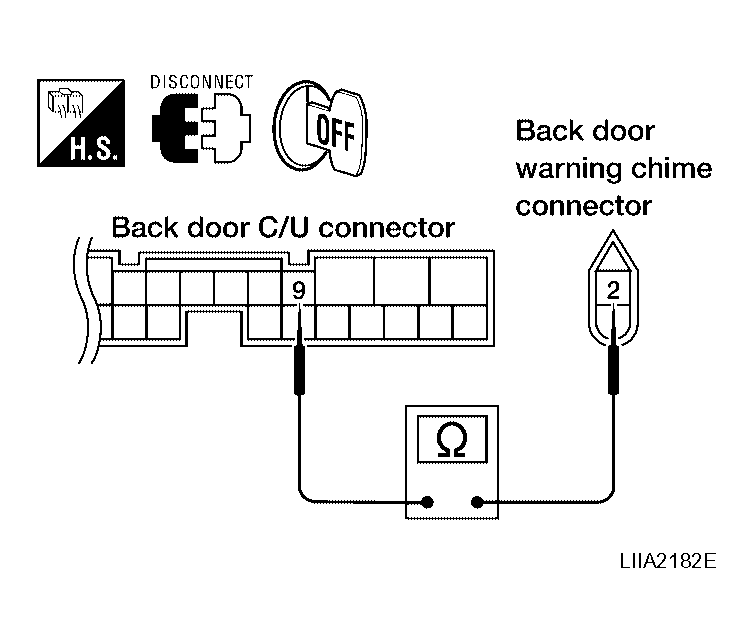

Fig 2: Identifying Continuity Between Connector D514 Terminal 2 And Back Door Control Unit Connector B55 Terminal 9
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : Replace warning chime.
- NG : Repair or replace harness.
