Climate Controlled Seat Switch Circuit Inspection

  1. CHECK CLIMATE CONTROLLED SEAT SWITCH
    1. Turn ignition switch OFF.
    2. Disconnect climate controlled seat switch connector.
    3. Check continuity between climate controlled seat switch.
    CLIMATE CONTROLLED SEAT SWITCH CONTINUITY

    Climate controlled seat switch connector Terminal Condition Continuity
    B20 (driver side)*
    B19 (passenger side)    		 1 3 Climate controlled seat switch HEAT Yes
    Other than above. No
    2 Climate controlled seat switch COOL Yes
    Other than above. No
    Fig 1: Identifying Continuity Between Climate Controlled Seat Switch
    G04146089Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 2.

    NG: Replace climate controlled seat switch.

  2. CHECK CLIMATE CONTROLLED SEAT SWITCH HARNESS CIRCUIT
    1. Disconnect climate controlled seat control unit connector.
    2. Check continuity between climate controlled seat control unit connector and climate controlled seat switch connector.
      • Driver side
        CLIMATE CONTROLLED SEAT CONTROL UNIT AND CLIMATE CONTROLLED SEAT SWITCH CONNECTOR CONTINUITY (DRIVER SIDE)

        A B Continuity
        Climate controlled seat control unit connector Terminal Climate controlled seat switch connector Terminal
        B283 10 E20 3 Yes
        20 2
      • Passenger side
      CLIMATE CONTROLLED SEAT CONTROL UNIT AND CLIMATE CONTROLLED SEAT SWITCH CONNECTOR CONTINUITY (PASSENGER SIDE)

      A C Continuity
      Climate controlled seat control unit connector Terminal Climate controlled seat switch connector Terminal
      B293 10 E19 3 Yes
      20 2
    3. Check continuity between climate controlled seat control unit connector and ground.

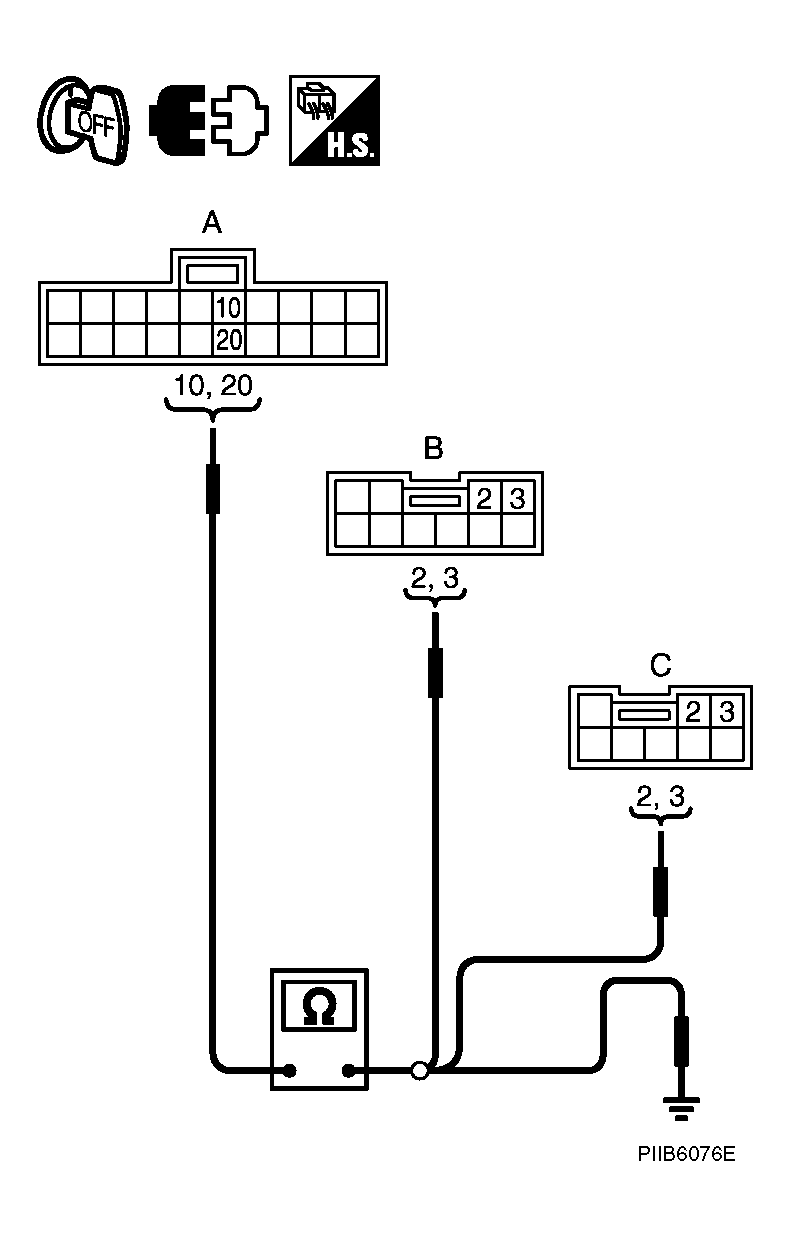

      Fig 2: Identifying Continuity Between Climate Controlled Seat Control Unit And Climate Controlled Seat Switch Connector
      G04146090Courtesy of NISSAN MOTOR CO., U.S.A.
      CLIMATE CONTROLLED SEAT CONTROL UNIT CONNECTOR AND GROUND CONTINUITY

      A Ground Continuity
      Climate controlled seat control unit connector Terminal
      B283 (driver side) B293 (passenger side) 10 No
      20

    OK or NG

    OK: Replace climate controlled seat control unit.

    NG: Repair or replace harness between climate controlled seat control unit and climate controlled seat switch.
