Removal and Installation of BCM: Removal

1. Remove glove box cover. Refer to "INSTRUMENT PANEL ASSEMBLY ".
2. Remove screws (A), and pull out the BCM (1).
3. Disconnect connector.
4. Remove BCM (1).

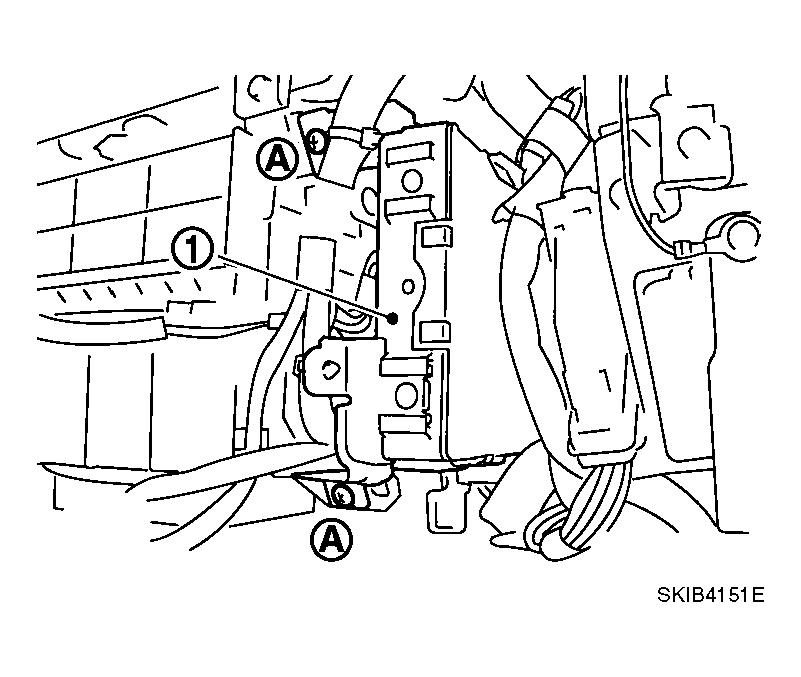

Fig 1: Identifying BCM

Courtesy of NISSAN MOTOR CO., U.S.A.
