Removal and Installation (2WD Models): Components

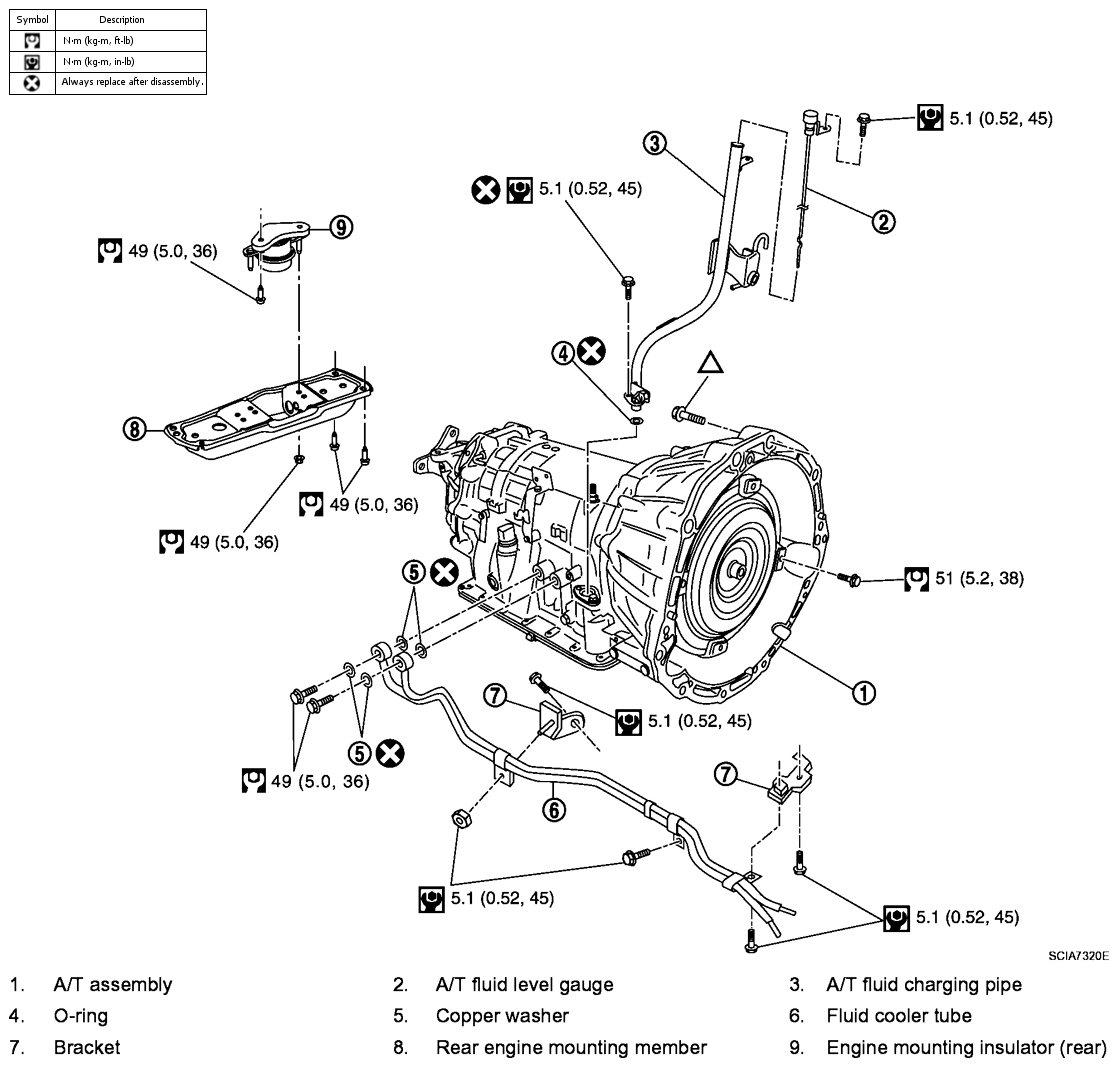

Fig 1: Transmission Assembly With Torque Specifications (2WD Models) -- VQ35DE Models

Courtesy of NISSAN MOTOR CO., U.S.A.

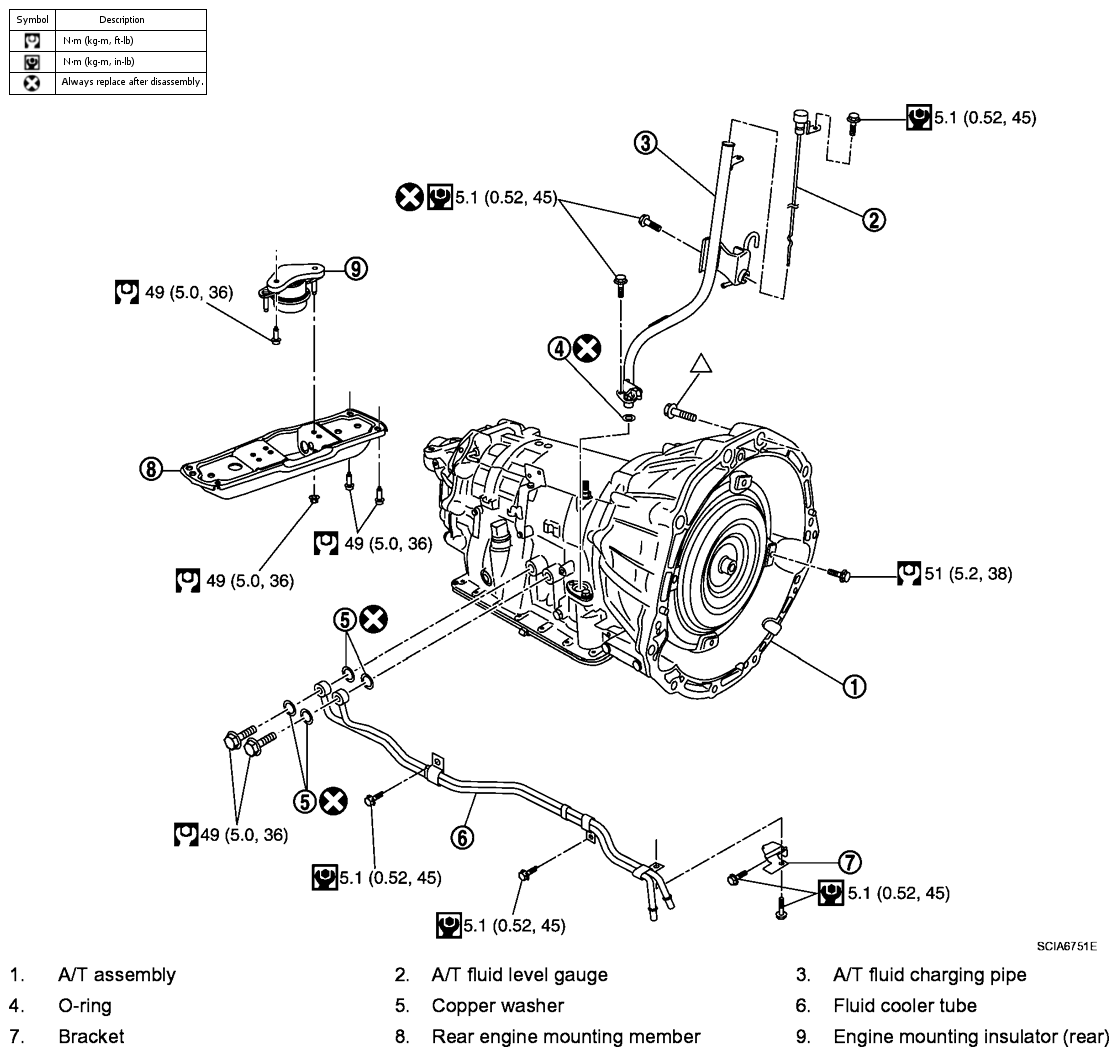

Fig 2: Transmission Assembly With Torque Specifications (2WD Models) -- VK45DE Models

Courtesy of NISSAN MOTOR CO., U.S.A.
