Oil Pump: Disassembly

  1. Remove oil pump housing from oil pump cover.

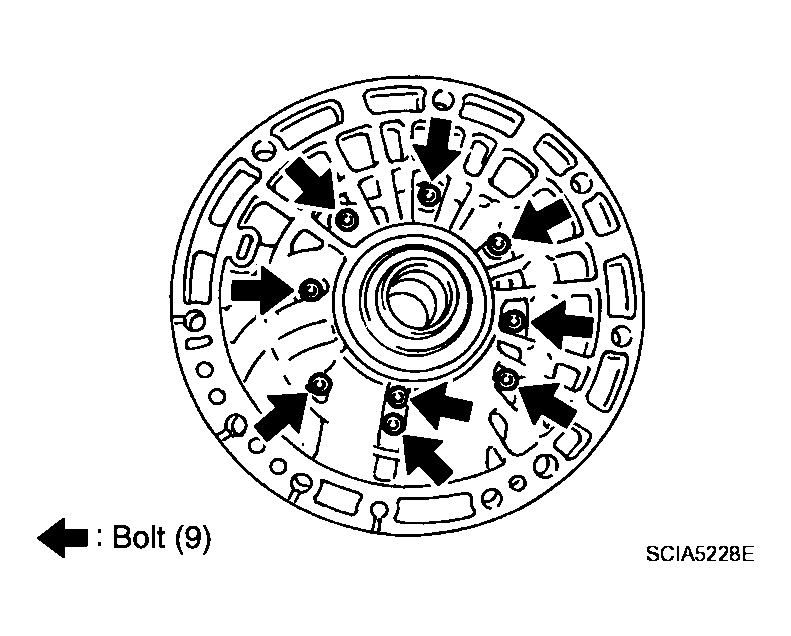

    Fig 1: Identifying Oil Pump Housing From Oil Pump Cover
    G04139523Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove oil pump housing oil seal using a flat-bladed screwdriver.
    Fig 2: Identifying Oil Pump Housing Oil Seal
    G04139524Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful not to scratch oil pump housing.
  3. Remove O-ring from oil pump housing.
    Fig 3: Removing O-Ring From Oil Pump Housing
    G04139525Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove O-ring from oil pump cover.

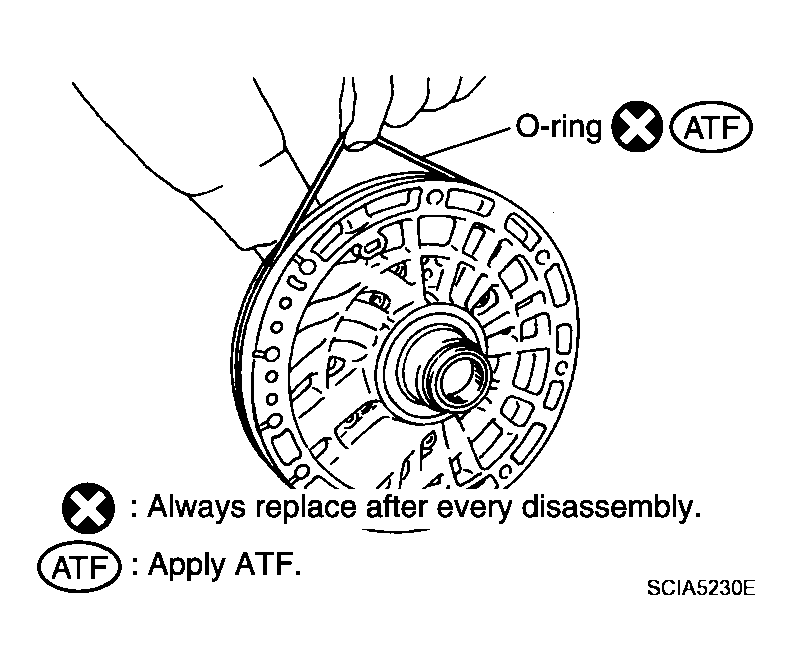

    Fig 4: Removing O-Ring From Oil Pump Cover
    G04139526Courtesy of NISSAN MOTOR CO., U.S.A.
