Oil Pump: Assembly

Install O-ring to oil pump cover.

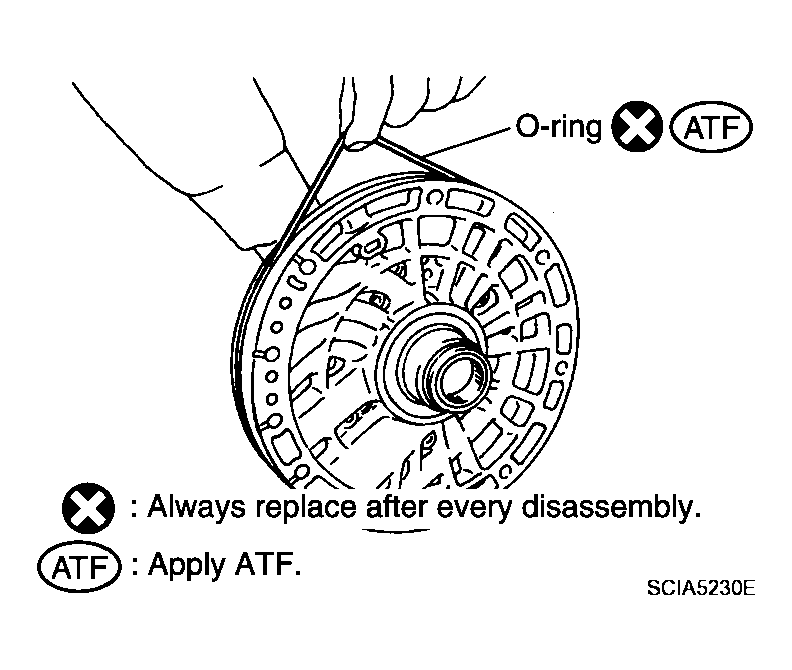

Fig 1: Installing O-Ring To Oil Pump Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Install O-ring to oil pump housing.

Fig 2: Installing O-Ring To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.
Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush.

Fig 3: Installing Oil Pump Housing Oil Seal To Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.
Install oil pump housing to oil pump cover.
Tighten bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Refer to "COMPONENTS ".

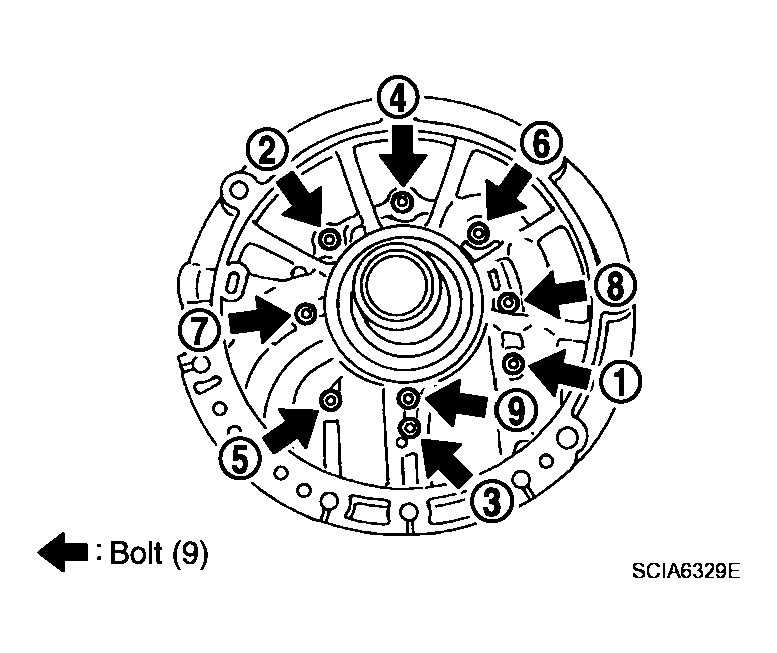

Fig 4: Identifying Oil Pump Housing To Oil Pump Cover Bolts Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
