Direct Clutch: Disassembly

  1. Using a flat-bladed screwdriver, remove snap ring from direct clutch drum.
  2. Remove drive plates, driven plates, dish plate and retaining plates from direct clutch drum.

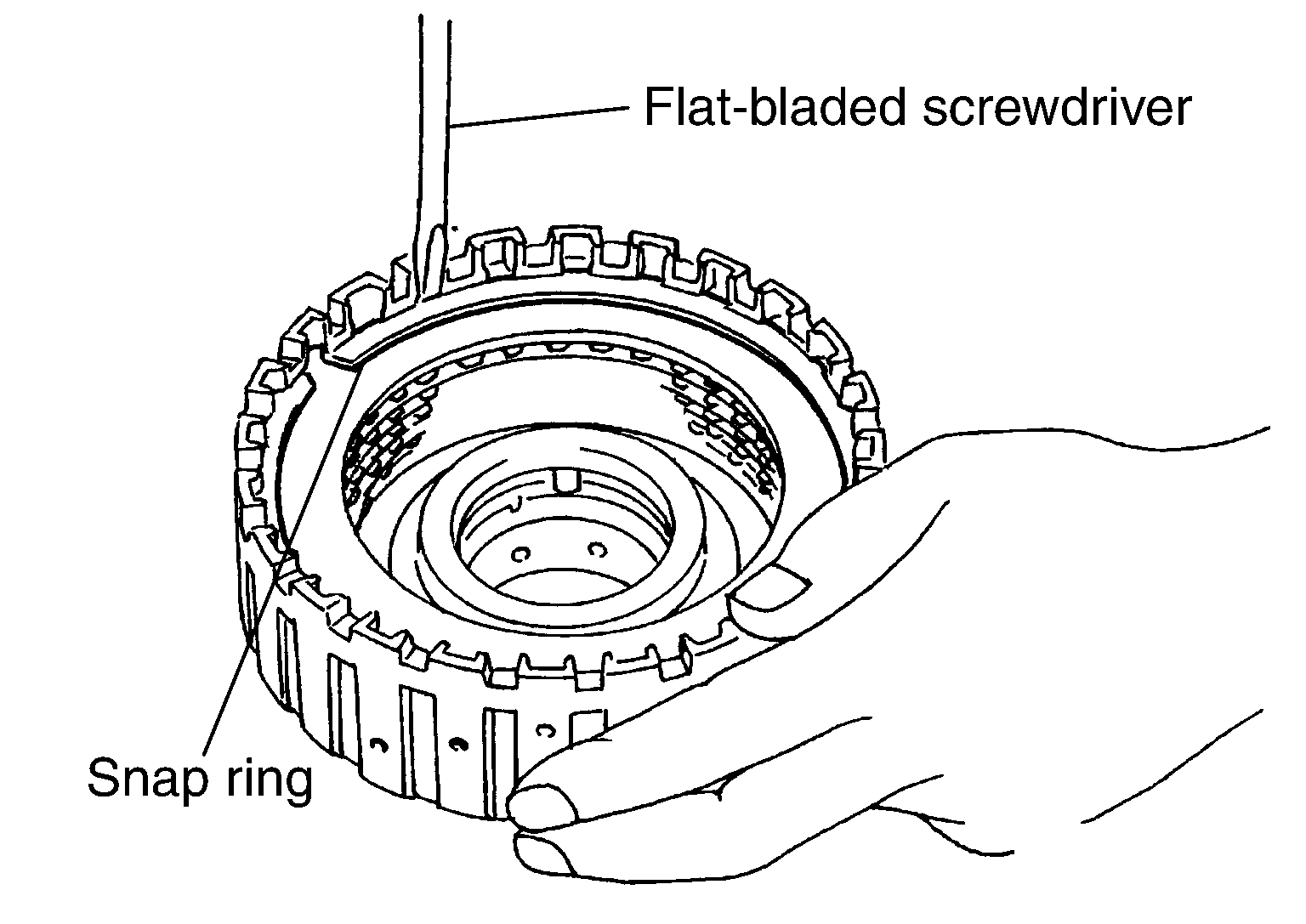

Fig 1: Identifying Direct Clutch Drum Snap Ring
G04075903Courtesy of NISSAN MOTOR CO., U.S.A.
