Assembly (2)

  1. Install O-ring to oil pump assembly.

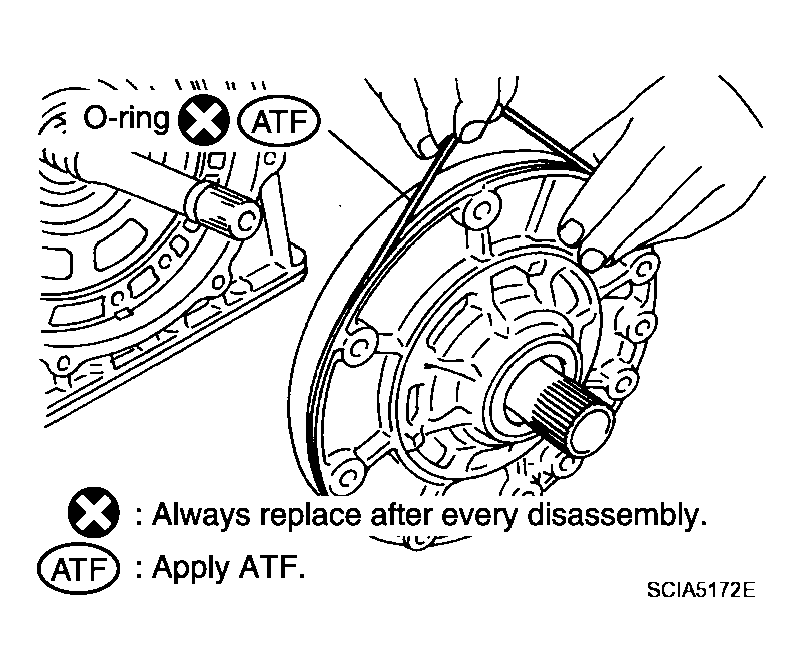

    Fig 1: Installing O-Ring To Oil Pump Assembly
    G04139668Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
  2. Install bearing race to oil pump assembly.

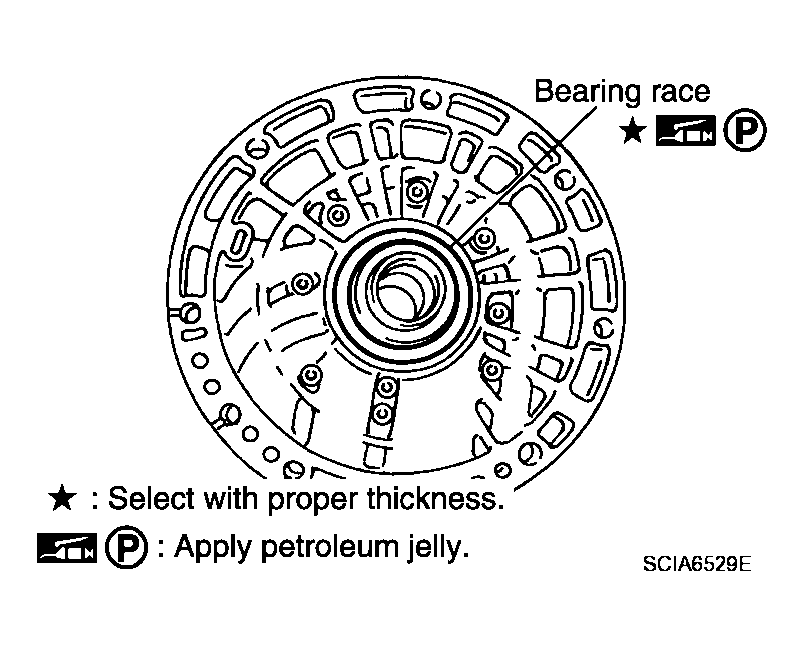

    Fig 2: Identifying Bearing Race To Oil Pump Assembly
    G04139669Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply petroleum jelly to bearing race.
  3. Install oil pump assembly in transmission case.
    Fig 3: Installing Oil Pump Assembly In Transmission Case
    G04139670Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply ATF to oil pump baring.
  4. Apply recommended sealant (Genuine RTV Silicone Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to oil pump assembly as shown in the figure.

    For GI, go to GENERAL INFORMATION .

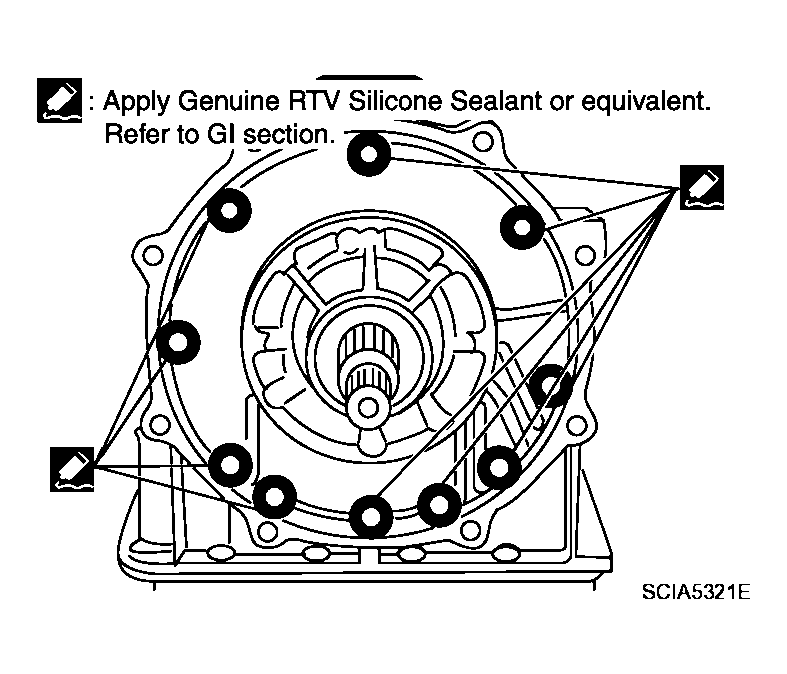

    Fig 4: Applying Recommended Sealant To Oil Pump Assembly
    G04139671Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.
  5. Tighten oil pump bolts to the specified torque. Refer to "COMPONENTS ".

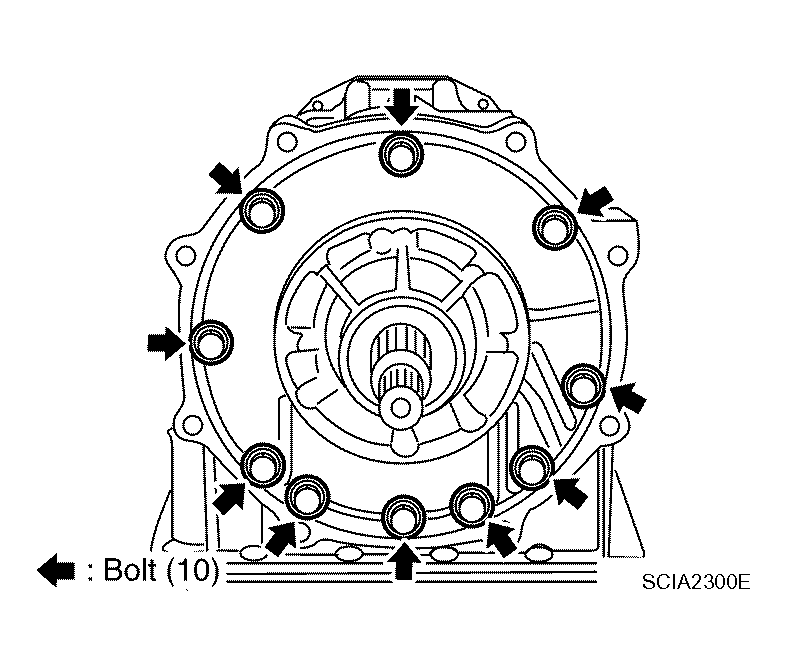

    Fig 5: Identifying Tightening Oil Pump Bolts
    G04139672Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Apply ATF to oil pump bushing.
  6. Install O-ring to input clutch assembly.

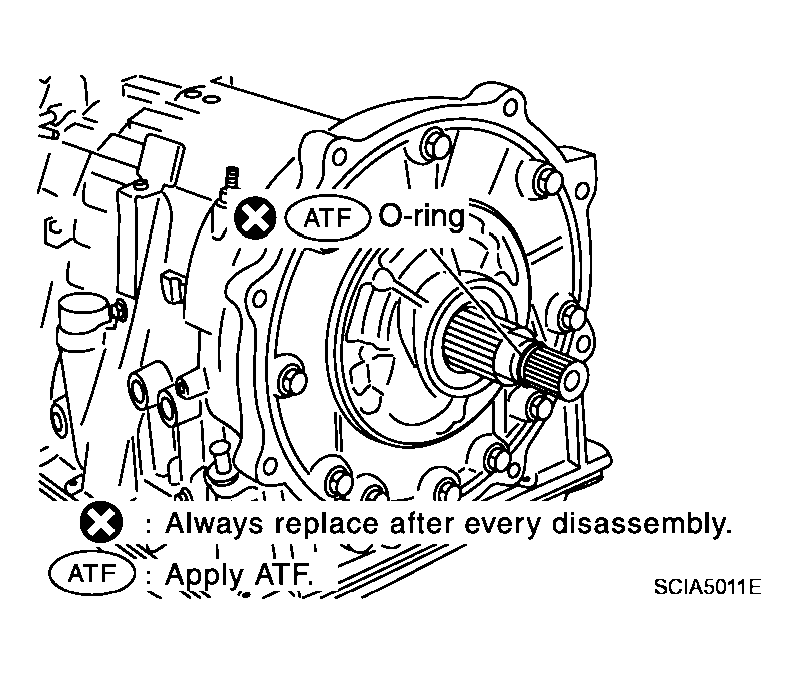

    Fig 6: Identifying O-Ring To Input Clutch Assembly
    G04139673Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.
  7. Install converter housing to transmission case. Tighten converter housing bolts to the specified torque. Refer to "COMPONENTS ".

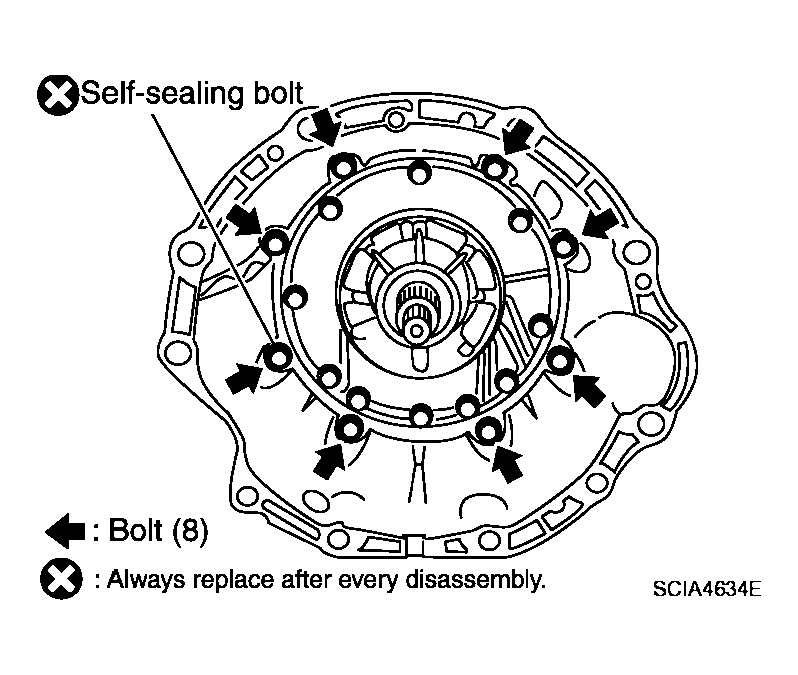

    Fig 7: Identifying Converter Housing To Transmission Case
    G04139674Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse self-sealing bolt.
  8. Make sure that brake band does not close turbine revolution sensor hole.

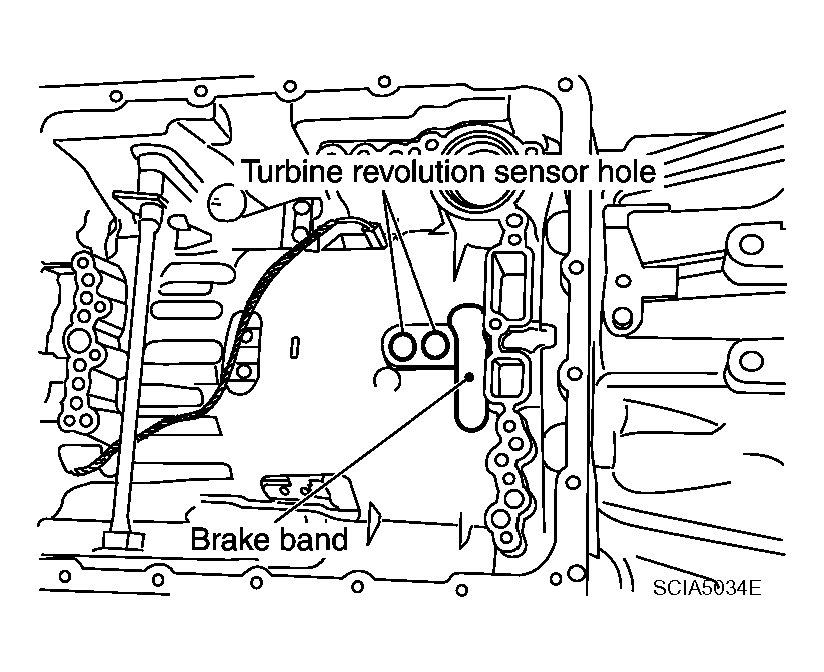

    Fig 8: Locating Turbine Revolution Sensor Hole And Brake Band
    G04075663Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install control valve with TCM.
    1. Connect TCM connector and park/neutral position switch connector.
      Fig 9: Locating TCM And Park Neutral Position Switch Connectors
      G04075656Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install A/T assembly harness connector to control valve with TCM.
      Fig 10: Identifying A/T Assembly Harness Connector To Control Valve With TCM
      G04139677Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Connect TCM connectors.

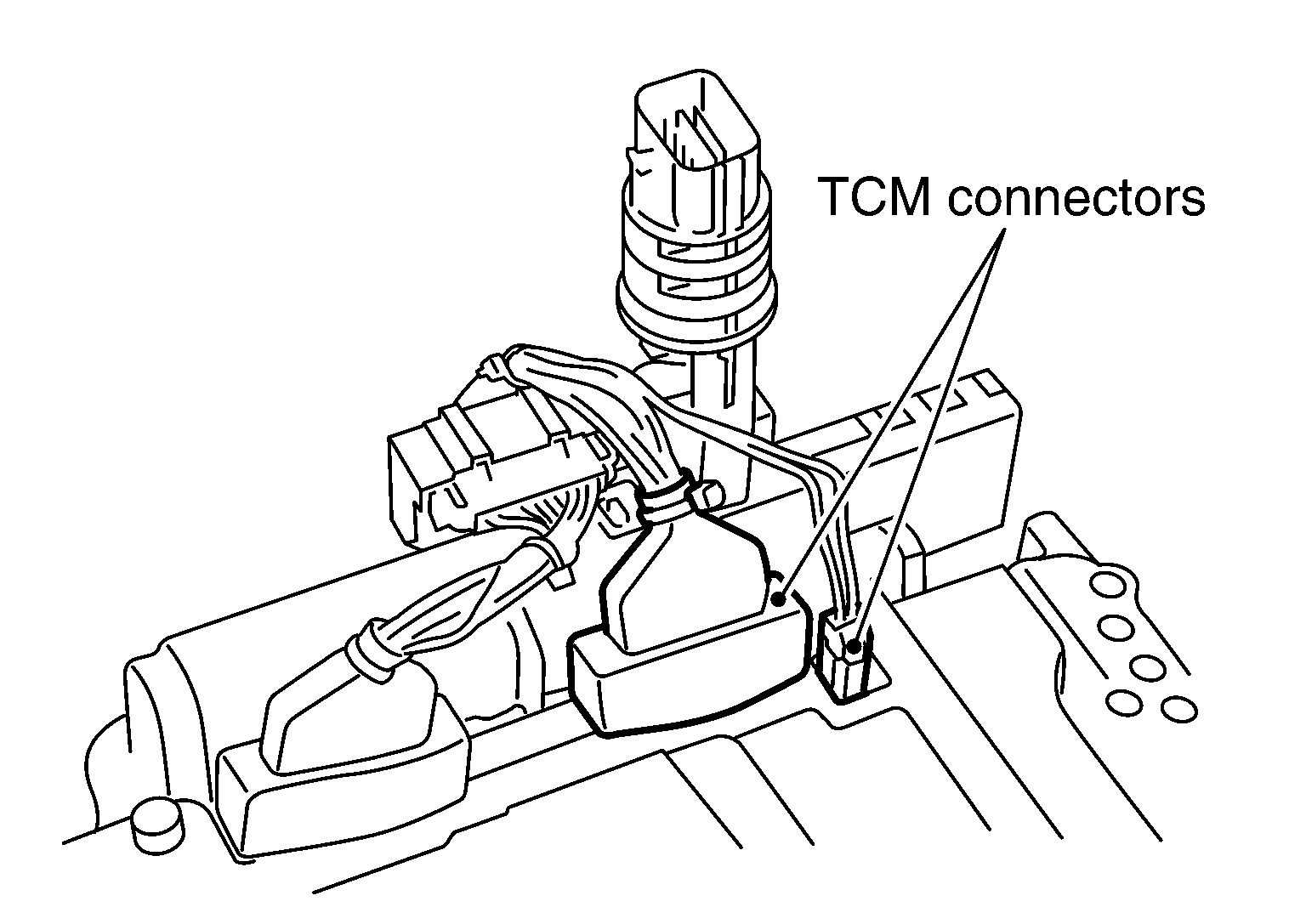

      Fig 11: Locating TCM Connectors
      G04075654Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Install O-ring to A/T assembly harness connector.

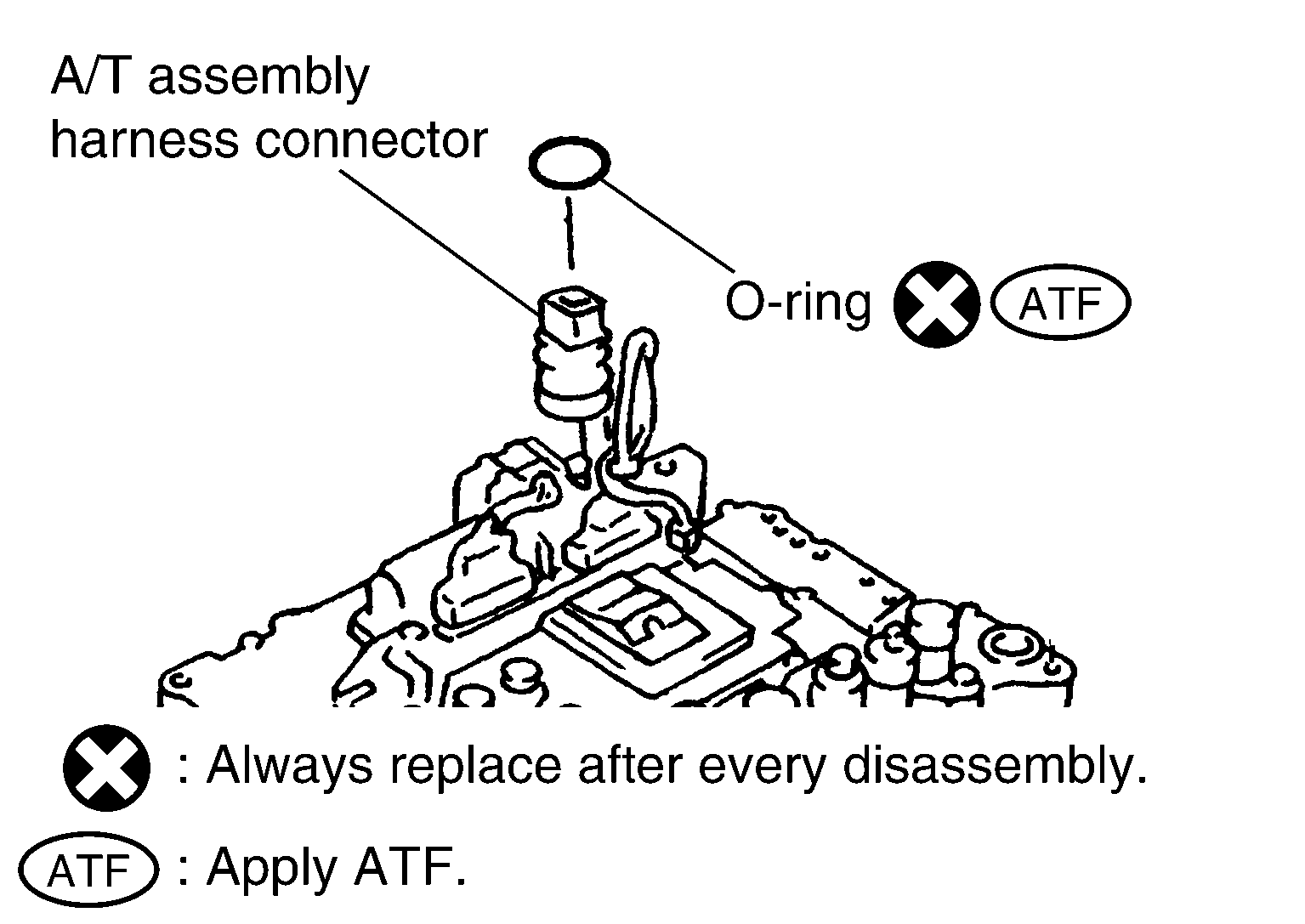

      Fig 12: Locating Harness Connector O Ring
      G04075653Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • Do not reuse O-ring.
      • Apply ATF to O-ring.
    5. Install A/T fluid temperature sensor 2 to bracket.

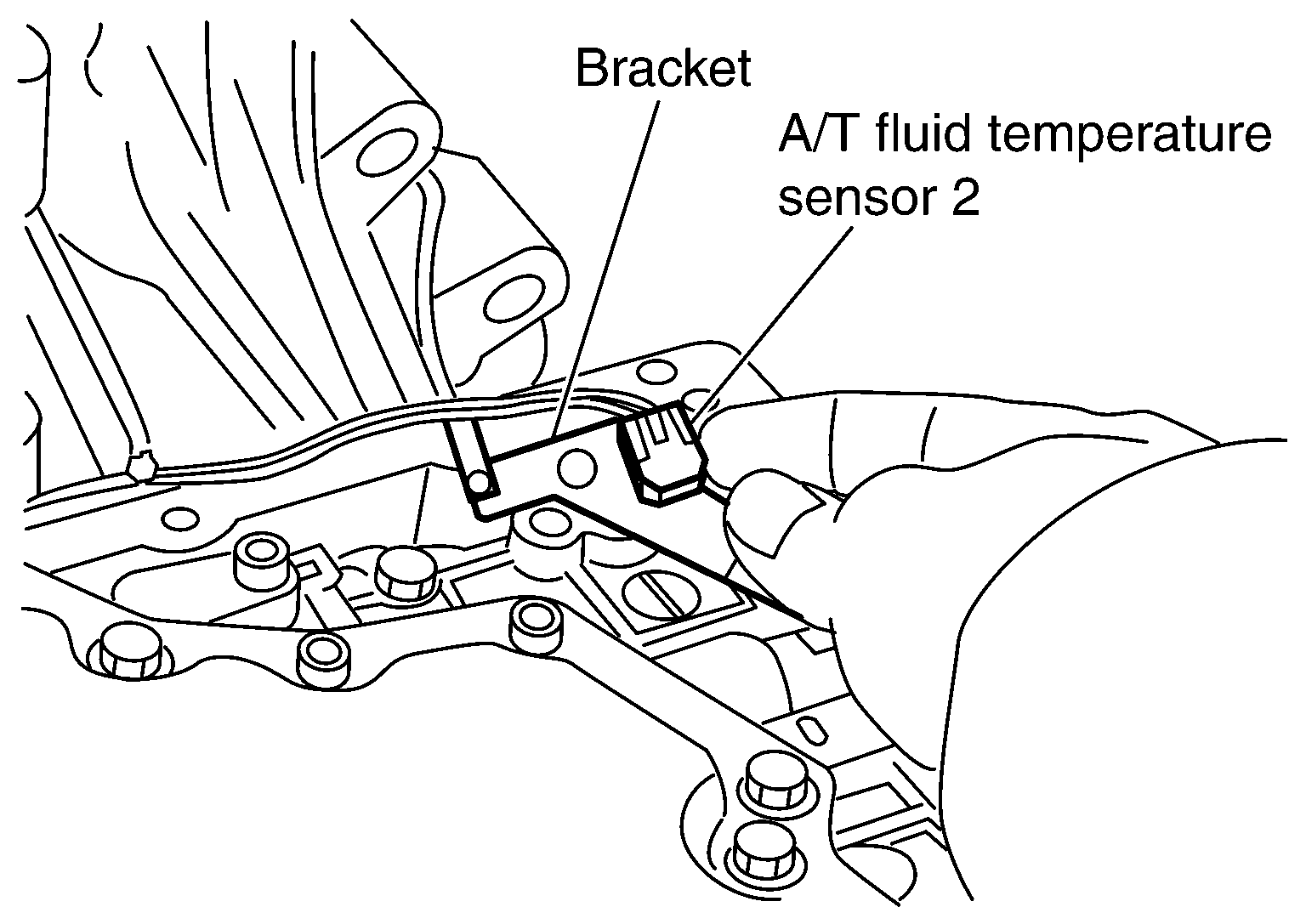

      Fig 13: Locating A/T Fluid Temperature Sensor
      G04075652Courtesy of NISSAN MOTOR CO., U.S.A.
    6. Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to the specified torque. Refer to "COMPONENTS ".

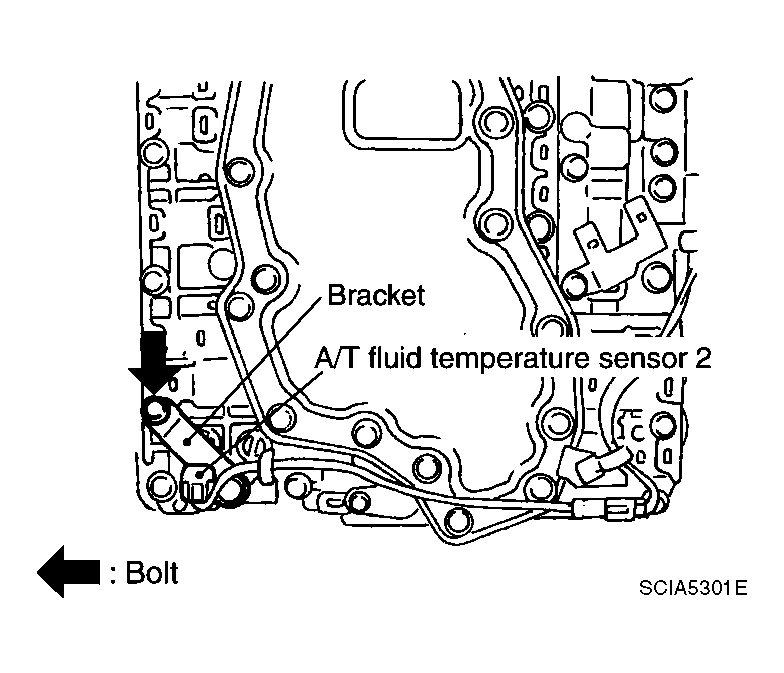

      Fig 14: Identifying A/T Temperature Sensor 2
      G04128443Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: Adjust bolt hole of bracket to bolt hole of control valve.
    7. Install control valve with TCM in transmission case.
      Fig 15: Locating Turbine Revolution Sensor Hole And Brake Band
      G04075663Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.
      • Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
      • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
      • Assemble it so that manual valve cutout is engaged with manual plate projection.

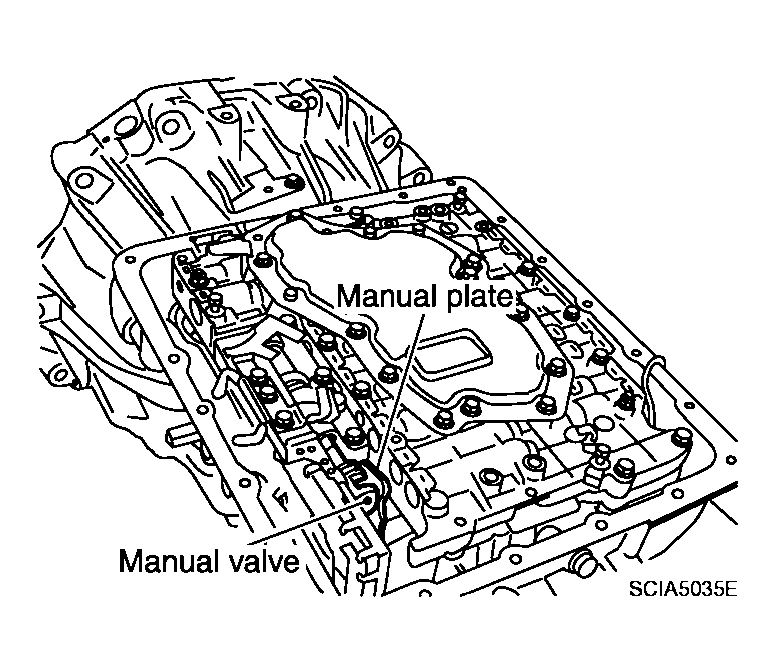

      Fig 16: Engaging Manual Valve Cutout To Manual Plate Projection
      G04139683Courtesy of NISSAN MOTOR CO., U.S.A.
    8. Install bolts A, B and C to control valve with TCM.
      BOLTS SPECIFICATIONS

      Bolt symbol Length mm (in) Number of bolts
      A 42 (1.65) 5
      B 55 (2.17) 6
      C 40 (1.57) 1

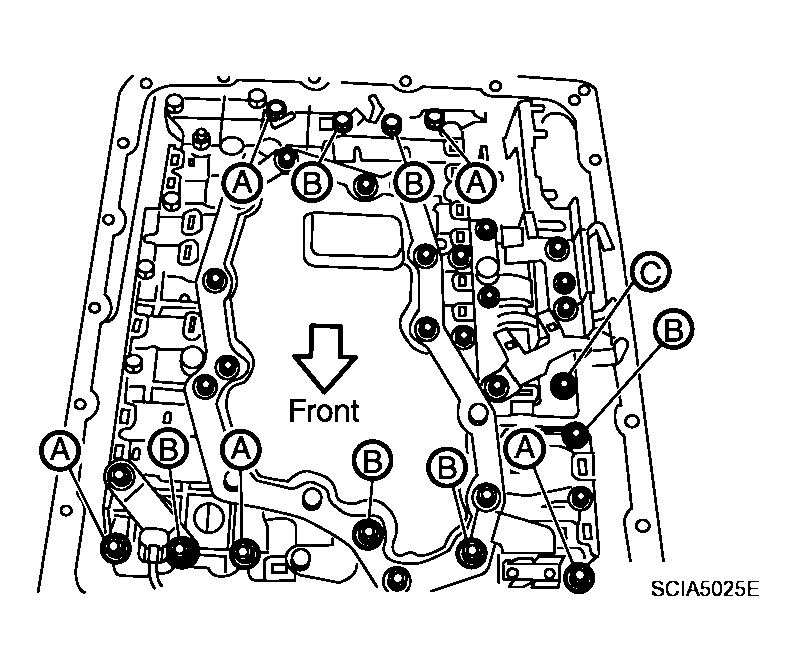

      Fig 17: Identifying Bolts A, B And C To Control Valve With TCM
      G04139684Courtesy of NISSAN MOTOR CO., U.S.A.
    9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 => 2 => 3), and then tighten other bolts. Tighten control valve bolts to the TCM with specified torque. Refer to "COMPONENTS ".

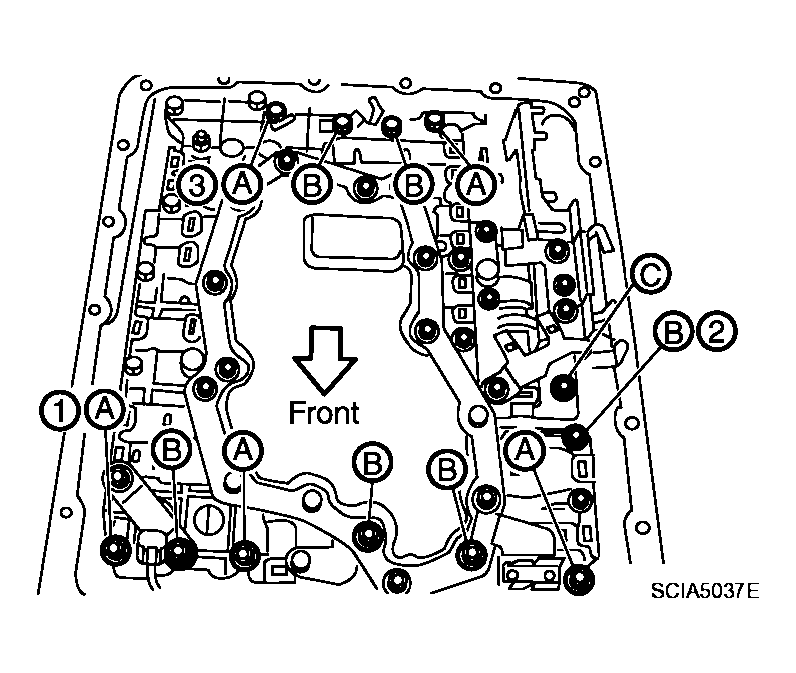

      Fig 18: Identifying Bolts Tightening Sequence
      G04139685Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect A/T fluid temperature sensor 2 connector.

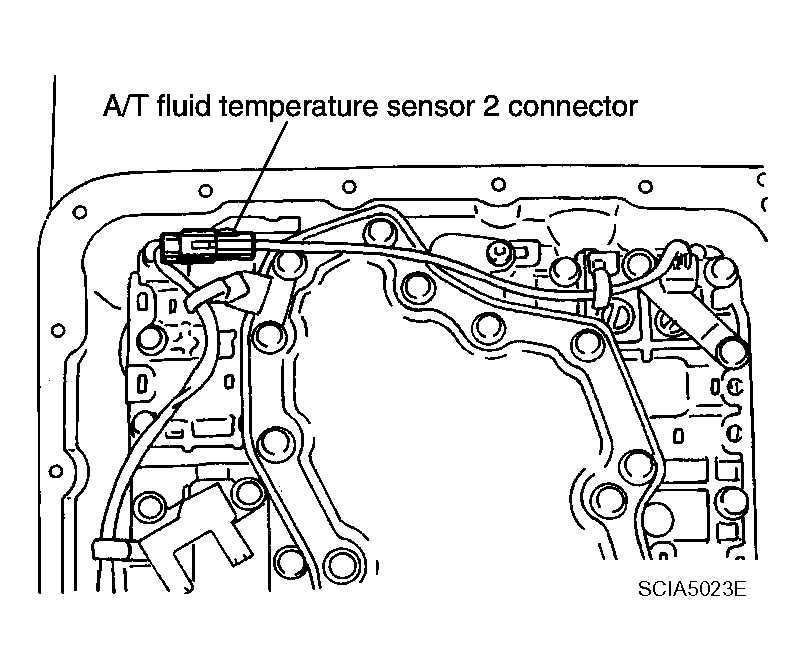

    Fig 19: Locating A/T Fluid Temperature Sensor 2
    G04075645Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips.

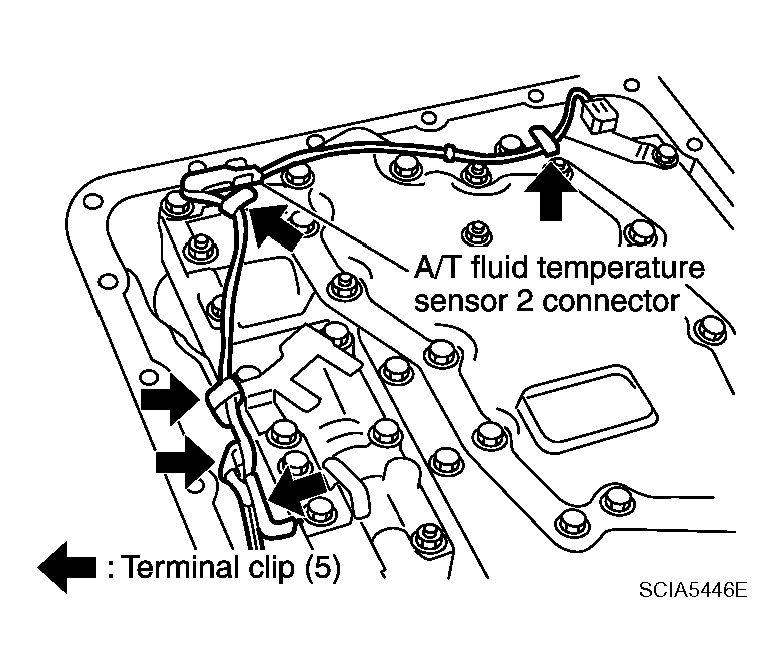

    Fig 20: Locating A/T Fluid Temperature Sensor 2 And Terminal Clips
    G04075646Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Connect revolution sensor connector.

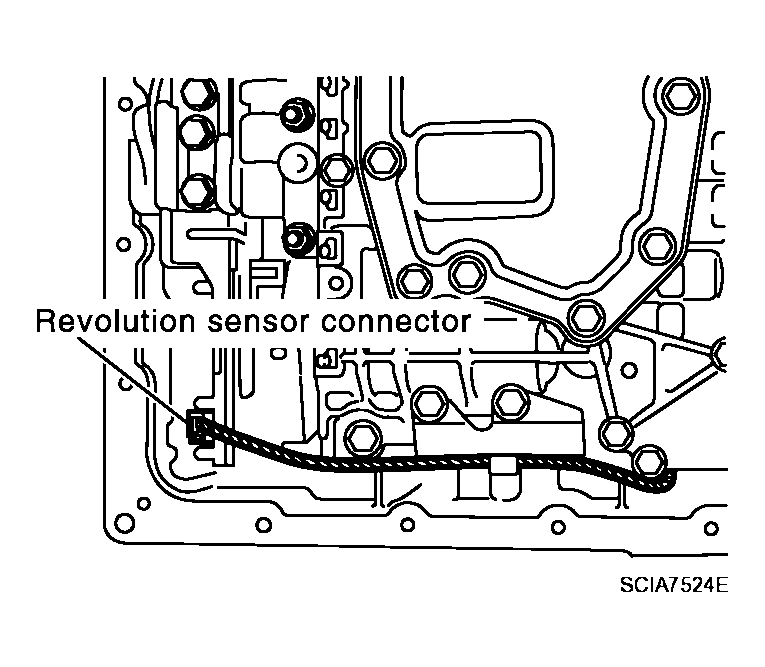

    Fig 21: Identifying Revolution Sensor Connector
    G04139688Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Securely fasten revolution sensor harness with terminal clip.

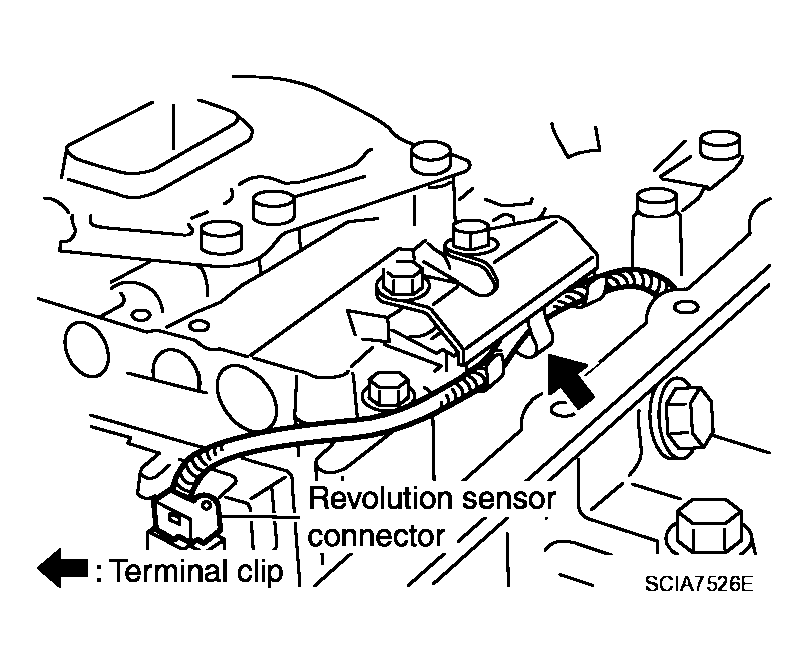

    Fig 22: Identifying Revolution Sensor Harness With Terminal Clip
    G04139689Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Pull down A/T assembly harness connector.

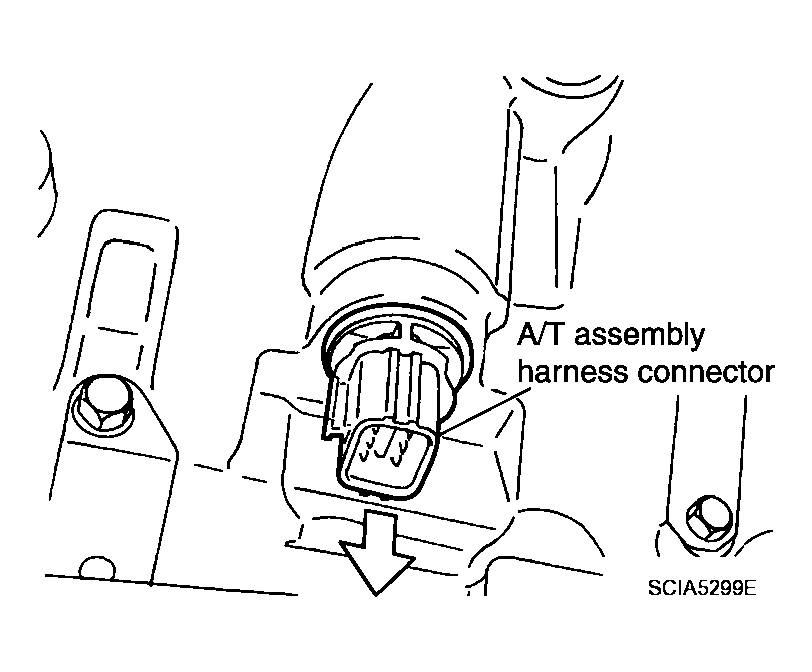

    Fig 23: Pulling Down A/T Assembly Harness Connector
    G04139690Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful not to damage connector.
  15. Install snap ring to A/T assembly harness connector.

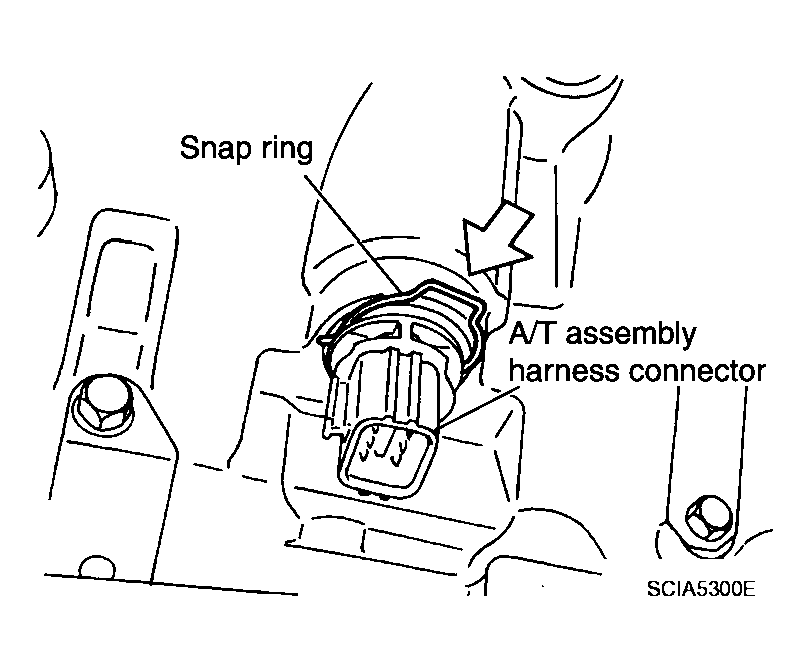

    Fig 24: Identifying Snap Ring To A/T Assembly Harness Connector
    G04139691Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Install magnets in oil pan.

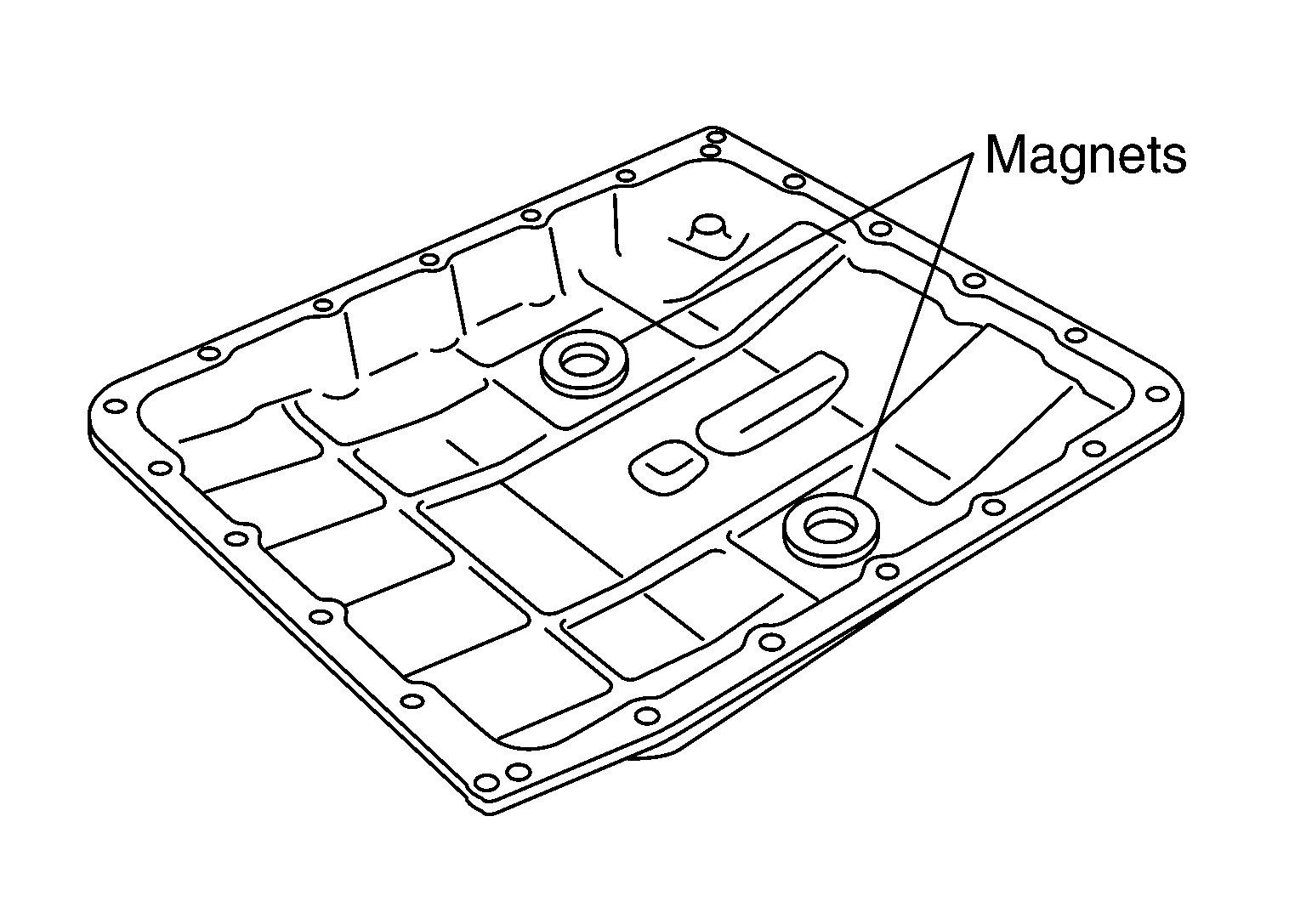

    Fig 25: View Of Magnets In Oil Pan
    G04075644Courtesy of NISSAN MOTOR CO., U.S.A.
  17. Install oil pan to transmission case.
    1. Install oil pan gasket to transmission case.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
    2. Install oil pan to transmission case.
      Fig 26: Identifying Oil Pan Bolts
      G04075672Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Do not reuse oil pan mounting bolts.
  18. Install drain plug to oil pan. Tighten drain plug to the specified torque. Refer to "COMPONENTS ".

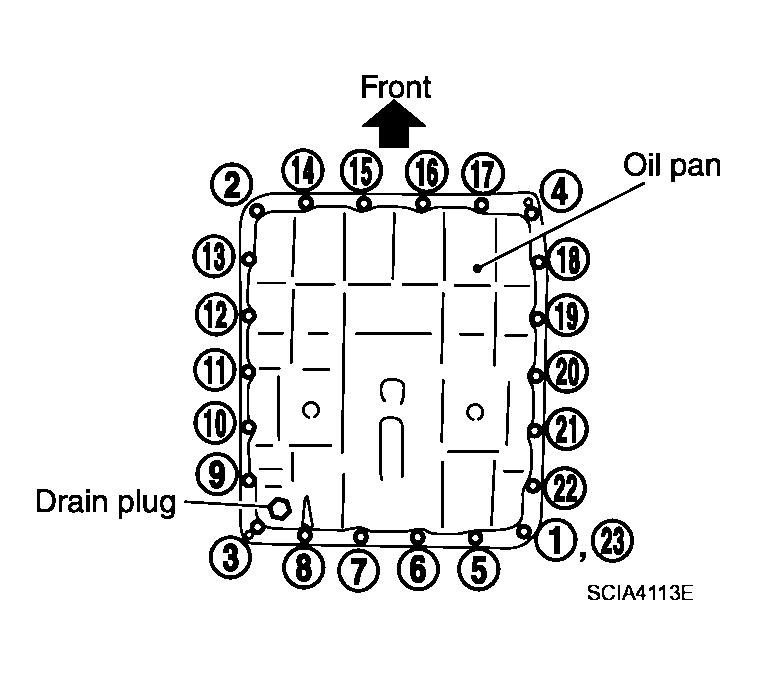

    Fig 27: Identifying Oil Pan Bolts Tightening Sequence
    G04139694Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse drain plug gasket.
  19. Install torque converter.
    1. Pour ATF into torque converter.
      • Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is required for a new torque converter.
      • When reusing old torque converter, add the same amount of ATF as was drained.
      Fig 28: Pouring ATF Into Torque Converter
      G04139695Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install torque converter while aligning notches of torque converter with notches of oil pump.

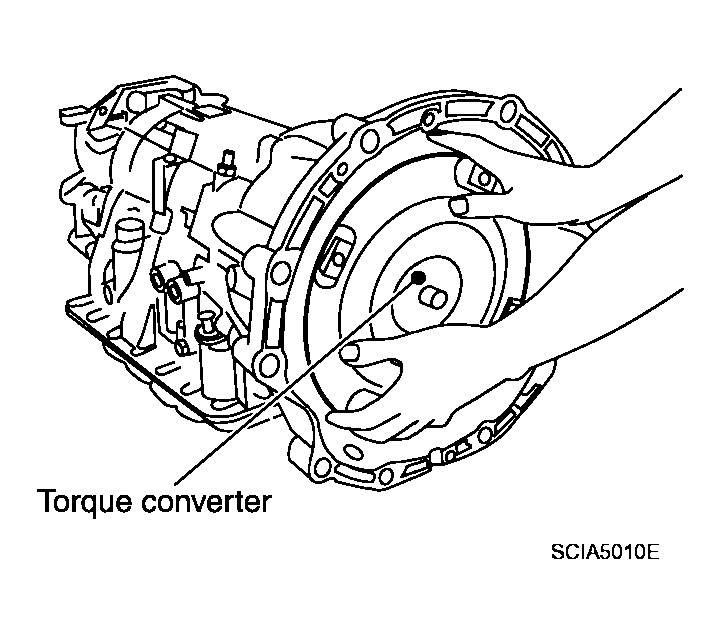

      Fig 29: Installing Torque Converter
      G04139696Courtesy of NISSAN MOTOR CO., U.S.A.
      CAUTION: Install torque converter while rotating it.
    3. Measure distance "A" to make sure that torque converter is in proper position.

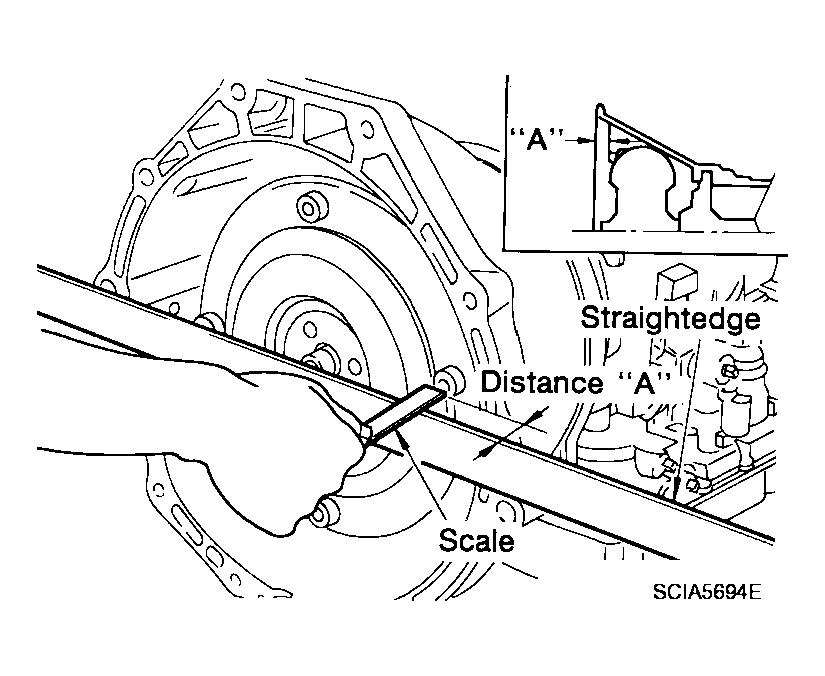

      Fig 30: Measuring Distance "A" Of Torque Converter
      G04139697Courtesy of NISSAN MOTOR CO., U.S.A.

      Distance "A"

      VQ35DE models: 25.0 mm (0.98 in) or more

      VK45DE models: 22.0 mm (0.87 in) or more
