Oil Channel

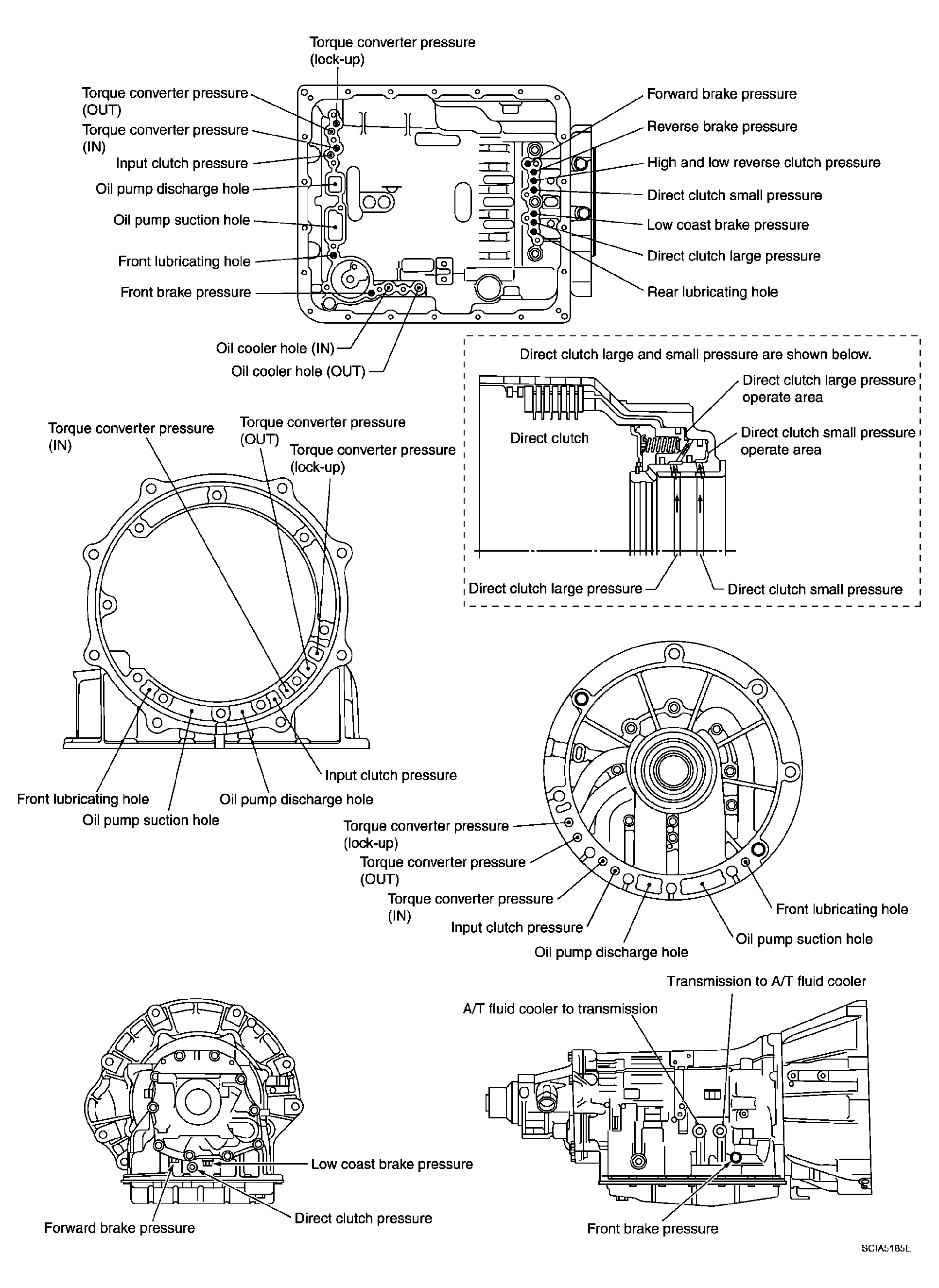

Fig 1: Identifying Oil Channel (VQ35DE Models - 2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.

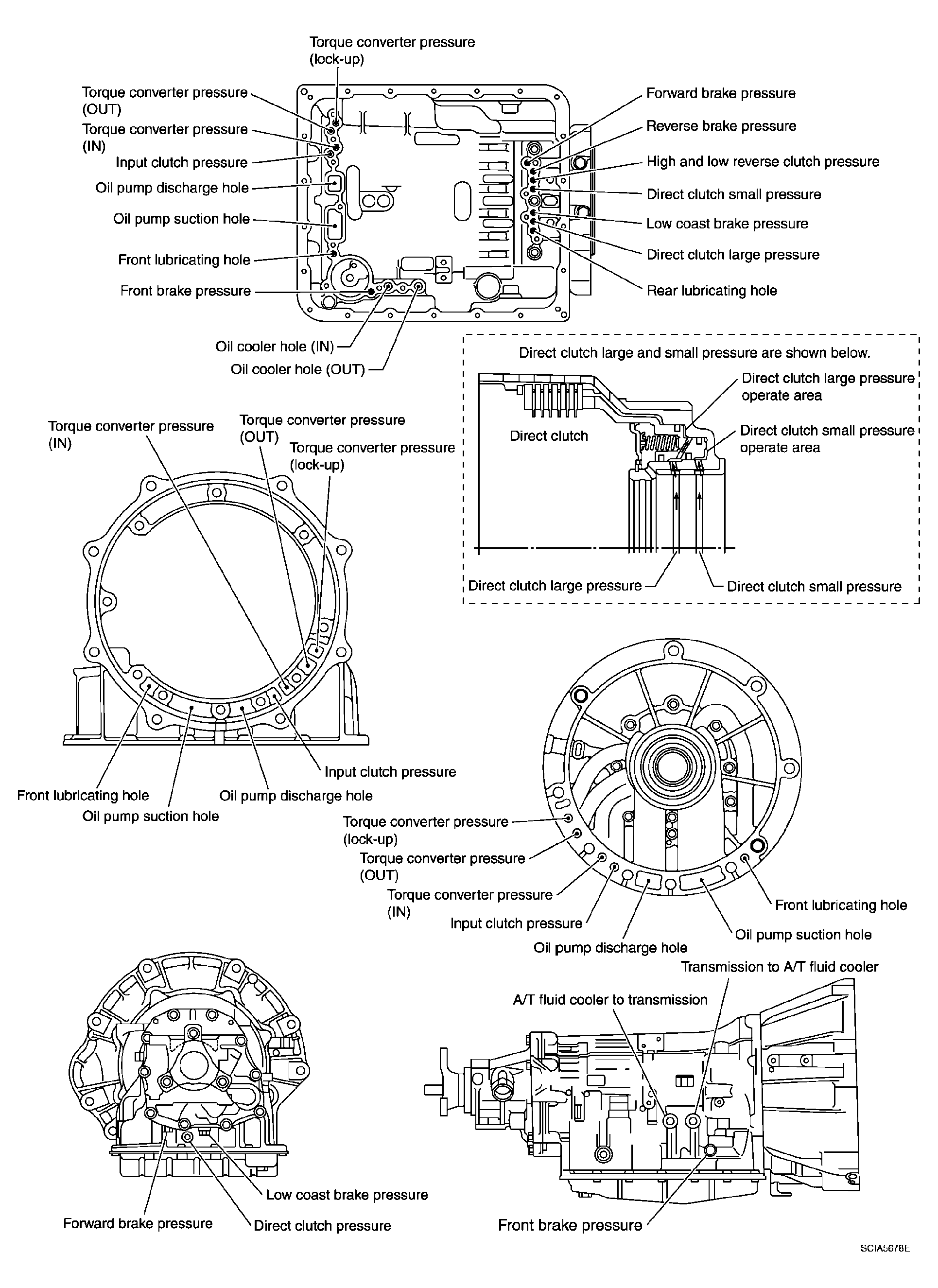

Fig 2: Identifying Oil Channel (VK45DE Models - 2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.

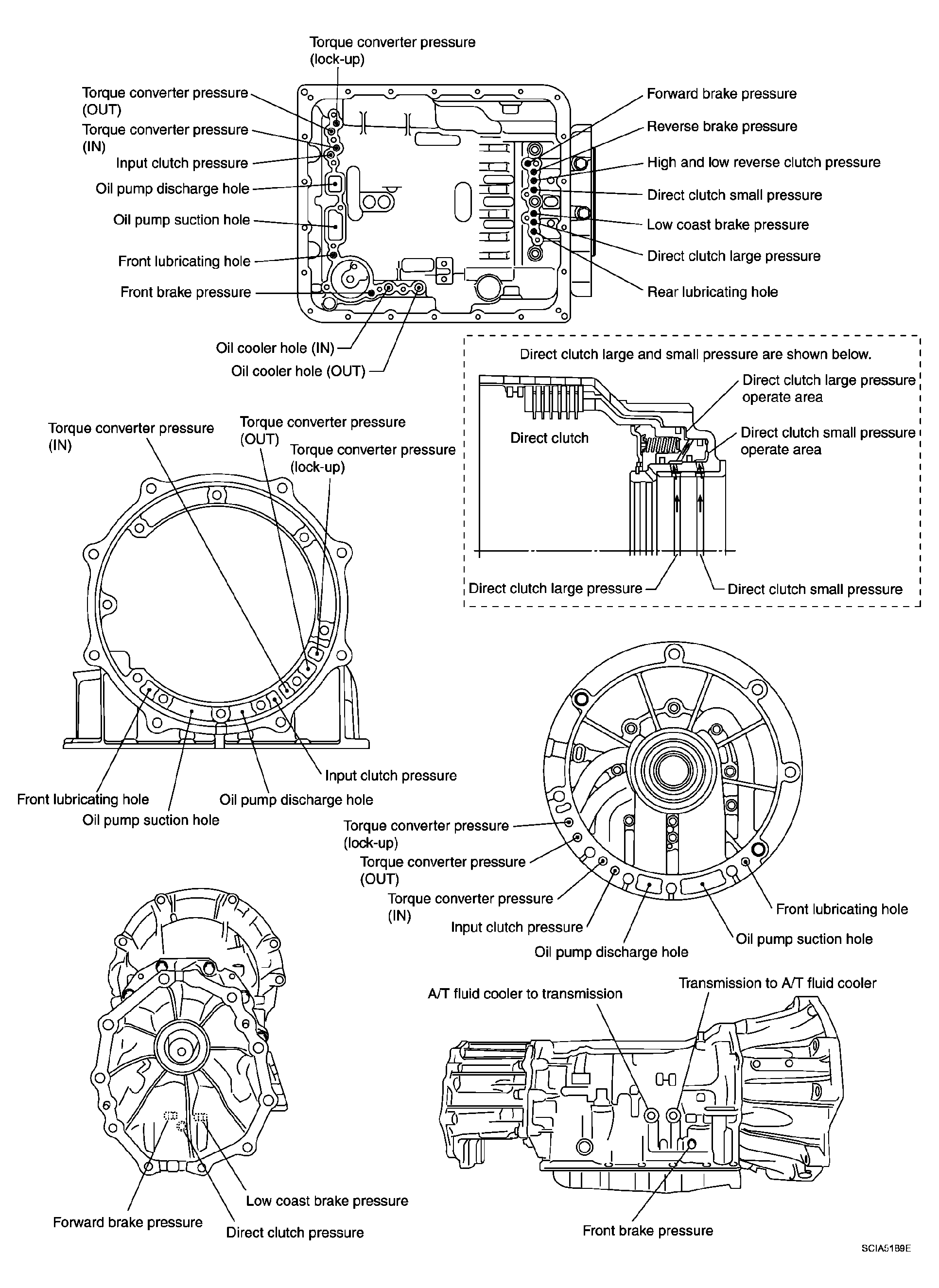

Fig 3: Identifying Oil Channel (AWD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
