Removal And Installation: Removal

  1. Disconnect the battery cable from the negative terminal.
  2. Drain ATF through drain plug.
  3. Remove exhaust front tube and center muffler with power tool. Refer to "REMOVAL AND INSTALLATION "
  4. Remove rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  6. Remove oil pan and oil pan gasket.
    Fig 1: Identifying Oil Pan Bolts
    G04075672Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Check foreign materials in oil pan to help determine causes of malfunction. If the ATF is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
    Fig 2: Checking A/T Fluid For Foreign Materials
    G04081632Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Support A/T assembly with a transmission jack.
    CAUTION: When setting transmission jack, place wooden blocks to prevent from damaging control valve with TCM and transmission case.
  9. Remove rear engine mounting member with power tool. Refer to "REMOVAL AND INSTALLATION (2WD MODELS) ".
  10. Remove rear extension assembly (VQ35DE models) or output shaft & companion flange complement (VK45DE models) according to the following procedures.
    1. VQ35DE models
      1. Remove tightening bolts for rear extension assembly and transmission case.

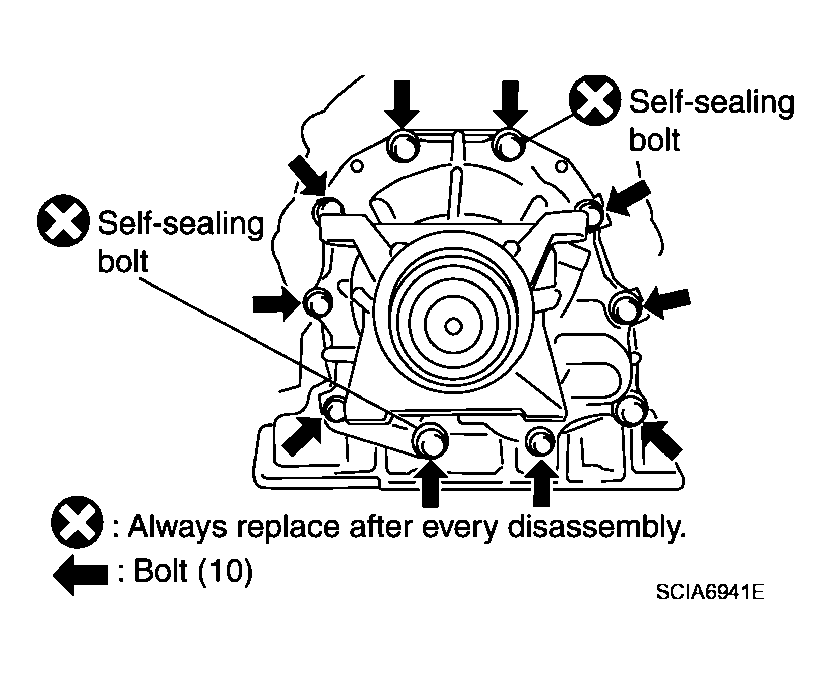

        Fig 3: Identifying Rear Extension Assembly And Transmission Case Tightening Bolts
        G04139379Courtesy of NISSAN MOTOR CO., U.S.A.
      2. Tap rear extension assembly with a soft hammer.

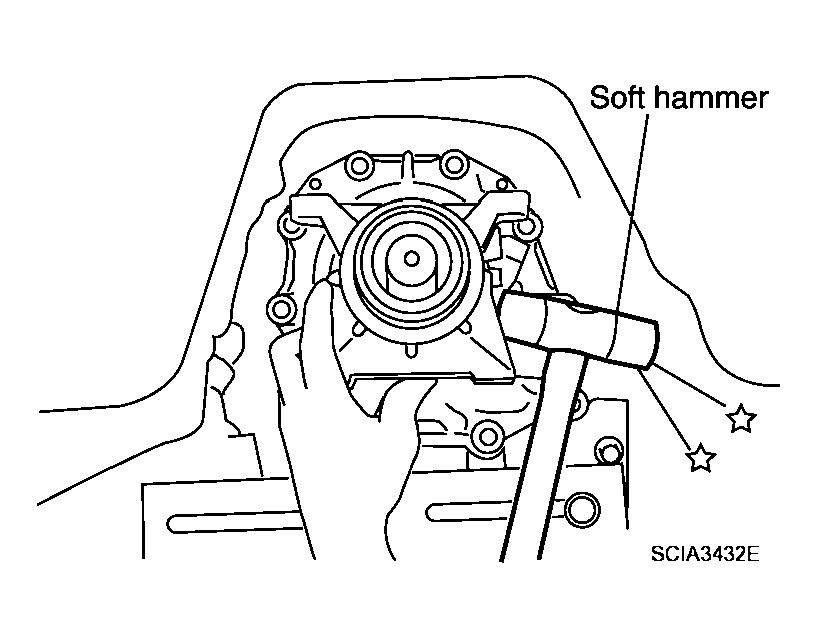

        Fig 4: Tapping Rear Extension Assembly With Soft Hammer
        G04139380Courtesy of NISSAN MOTOR CO., U.S.A.
      3. Remove rear extension assembly from transmission case. (With needle bearing.)
        Fig 5: Removing Rear Extension Assembly From Transmission Case (With Needle Bearing)
        G04139381Courtesy of NISSAN MOTOR CO., U.S.A.
    2. VK45DE models
      1. Remove tightening bolts (1) for output shaft & companion flange complement and transmission case.

        : Bolt (10)

        Self-sealing bolts (2)

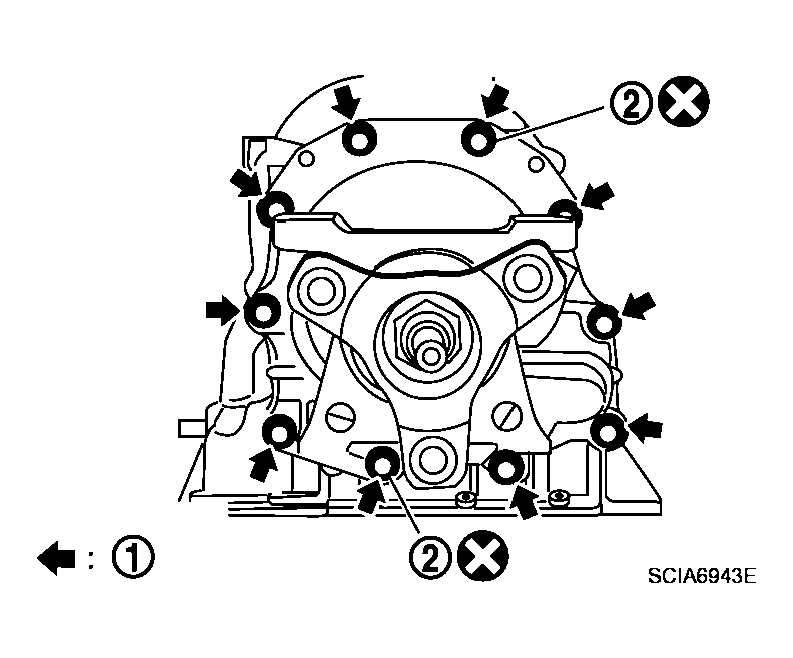

        Fig 6: Identifying Tightening Bolts (Output Shaft & Companion Flange Complement And Transmission Case)
        G04139382Courtesy of NISSAN MOTOR CO., U.S.A.
      2. Tap output shaft & companion flange complement with a soft hammer.

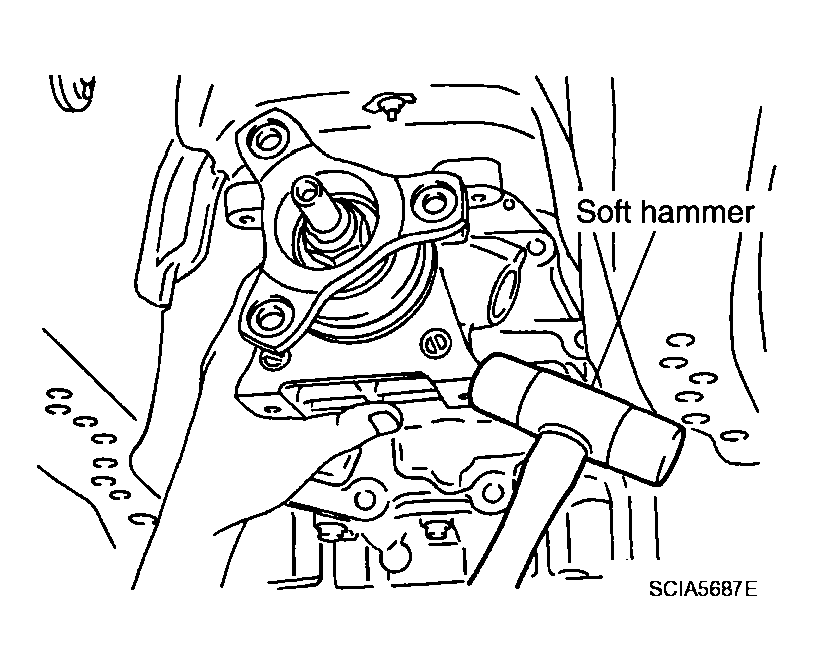

        Fig 7: Tapping Output Shaft & Companion Flange Complement With Soft Hammer
        G04139383Courtesy of NISSAN MOTOR CO., U.S.A.
      3. Remove output shaft & companion flange complement from transmission case

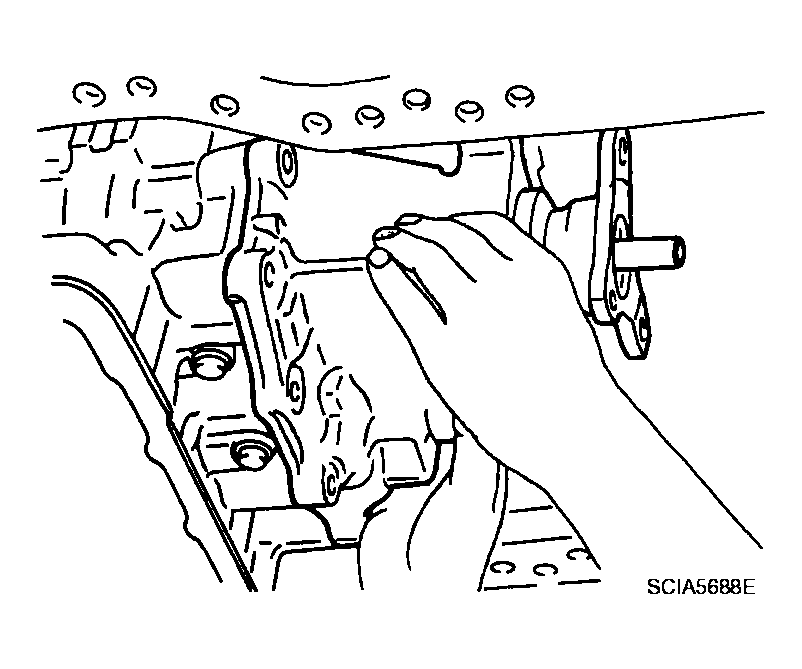

        Fig 8: Removing Output Shaft & Companion Flange Complement From Transmission Case
        G04139384Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Disconnect revolution sensor connector.

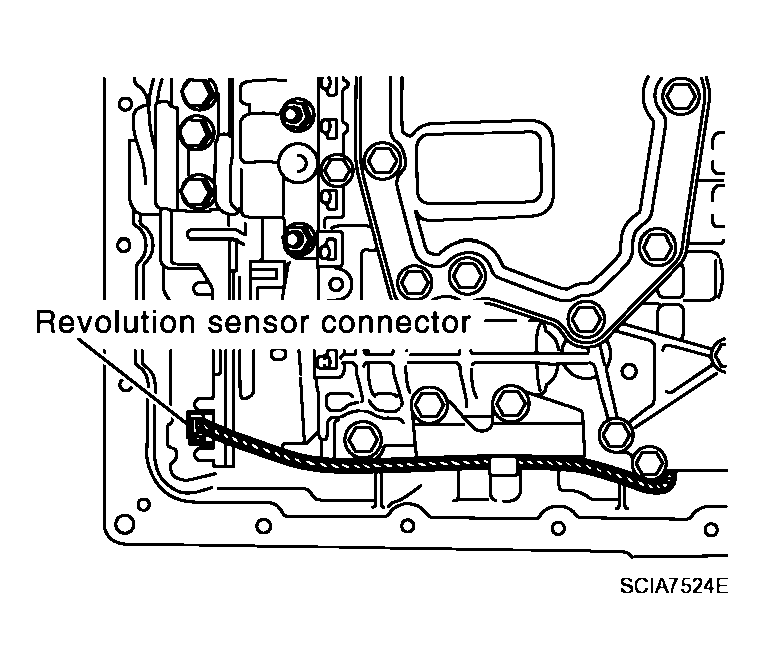

    Fig 9: Identifying Revolution Sensor Connector
    G04139385Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Be careful not to damage connector
  12. Straighten terminal clip to free revolution sensor harness.

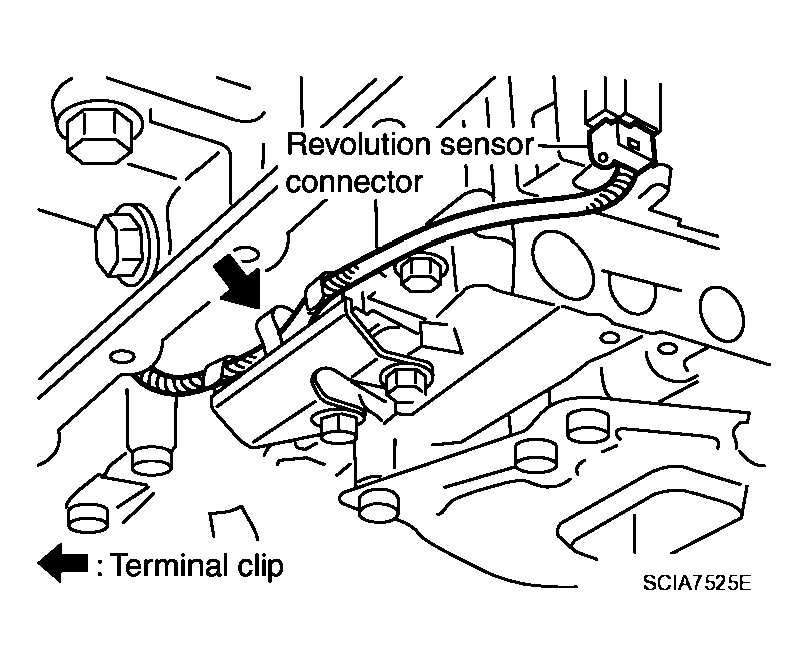

    Fig 10: Straightening Terminal Clip
    G04139386Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove revolution sensor from transmission case.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc., to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.

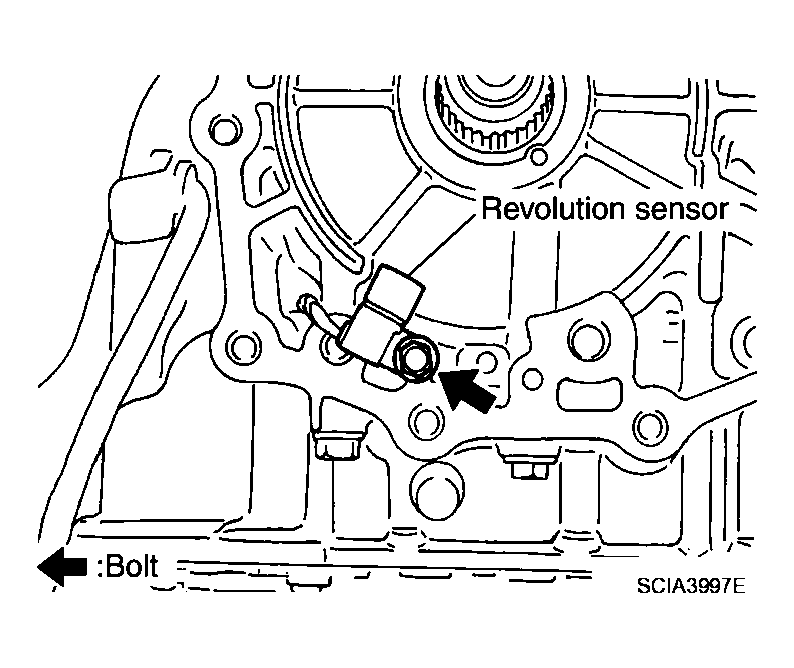

    Fig 11: Identifying Revolution Sensor From Transmission Case
    G04139387Courtesy of NISSAN MOTOR CO., U.S.A.
