Removal And Installation: Installation

CAUTION: After completing installation, check A/T fluid leakage, A/T fluid level and A/T position. Refer to "CHECKING A/T FLUID ", "CHECKING OF A/T POSITION ".
  1. Install revolution sensor in transmission case. Tighten a necessary bolt for revolution sensor with specified torque. Refer to "REMOVAL AND INSTALLATION ".

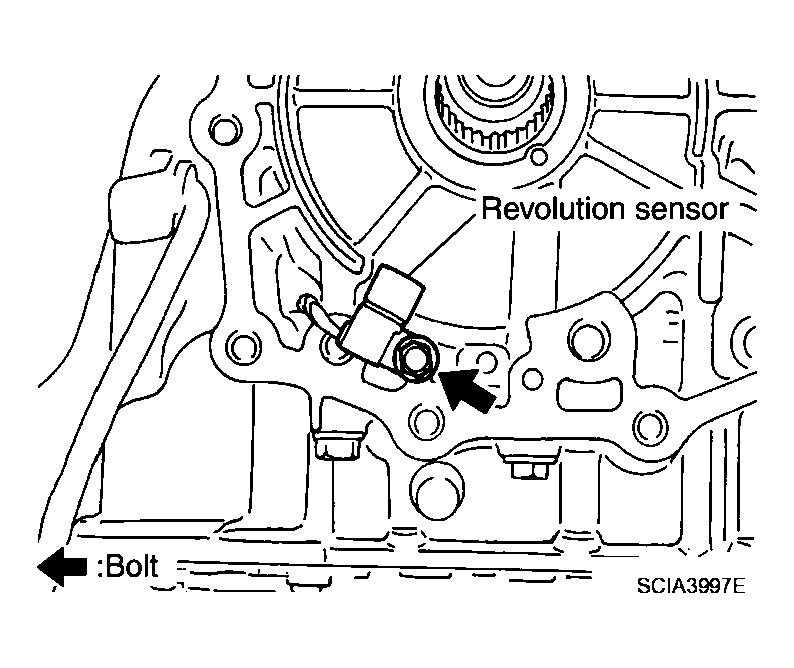

    Fig 1: Identifying Revolution Sensor In Transmission Case
    G04139388Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc., to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.
  2. Connect revolution sensor connector.

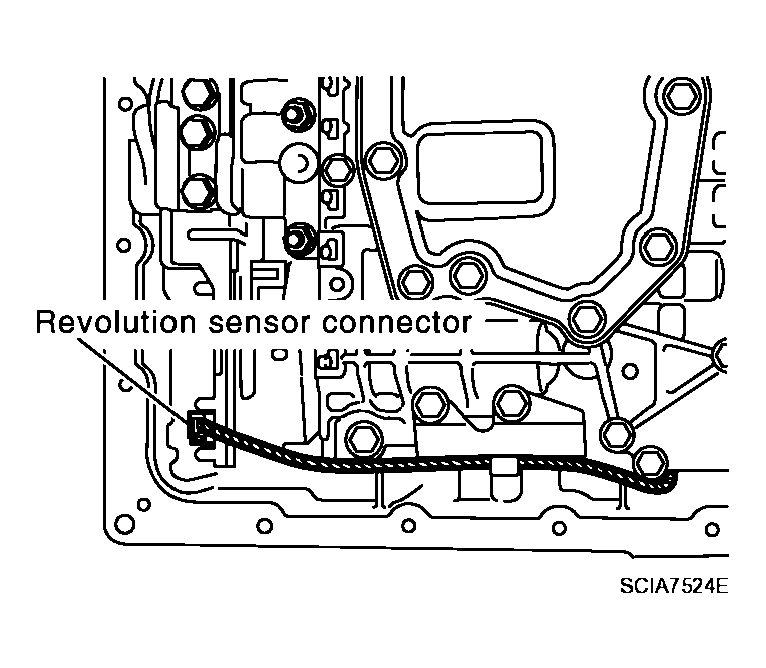

    Fig 2: Identifying Revolution Sensor Connector
    G04139389Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Securely fasten revolution sensor harness with clip.

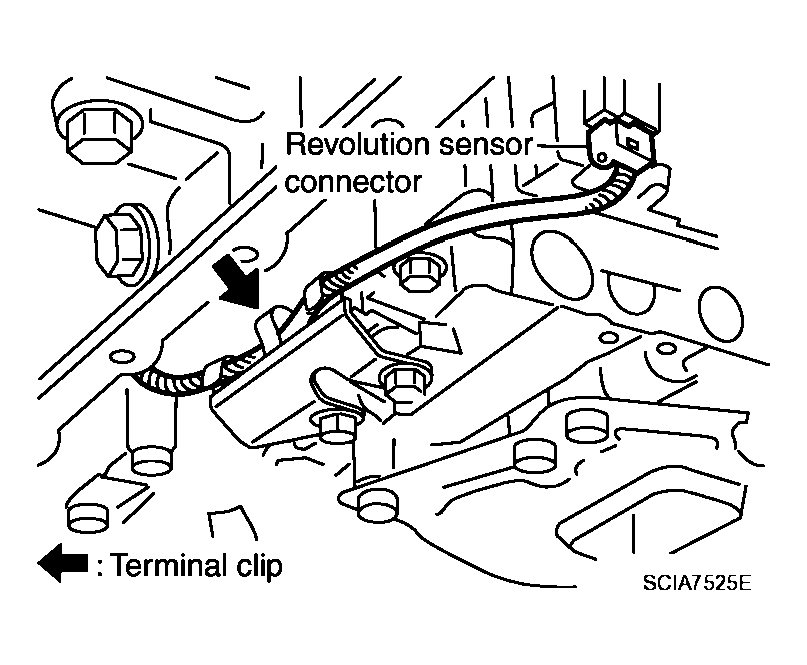

    Fig 3: Fastening Revolution Sensor Harness With Clip
    G04139390Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install rear extension assembly (VQ35DE models) or output shaft & companion flange complement (VK45DE models) according to the following procedures.
    1. VQ35DE models
      1. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure.
        CAUTION: Completely remove all moisture, oil and old sealant, etc. from transmission case and rear extension assembly mounting surfaces.

        For GI, go to GENERAL INFORMATION .

        Fig 4: Applying Recommended Sealant To Rear Extension Assembly
        G04139391Courtesy of NISSAN MOTOR CO., U.S.A.
      2. Install rear extension assembly to transmission case. (With needle bearing.)
        CAUTION: Insert the tip of parking rod between the parking pole and the parking actuator support when assembling the rear extension assembly.
        Fig 5: Installing Rear Extension Assembly To Transmission Case
        G04139392Courtesy of NISSAN MOTOR CO., U.S.A.
      3. Tighten rear extension assembly bolts to the specified torque. Refer to "REMOVAL AND INSTALLATION ".
      CAUTION: Do not reuse self-sealing bolts.

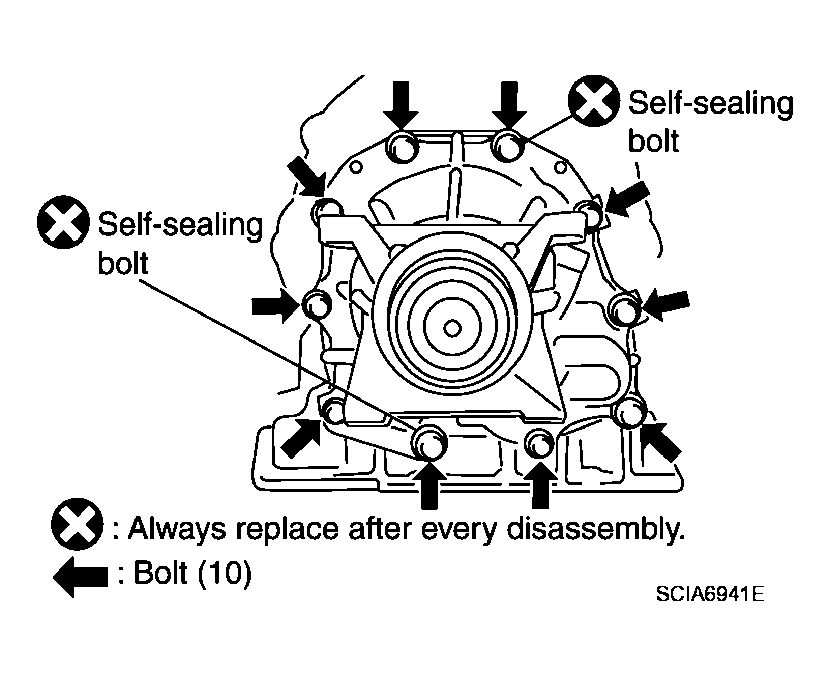

      Fig 6: Identifying Tightening Rear Extension Assembly Bolts
      G04139393Courtesy of NISSAN MOTOR CO., U.S.A.
    2. VK45DE models
      1. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to output shaft & companion flange complement as shown in the figure.

        For GI, go to GENERAL INFORMATION .

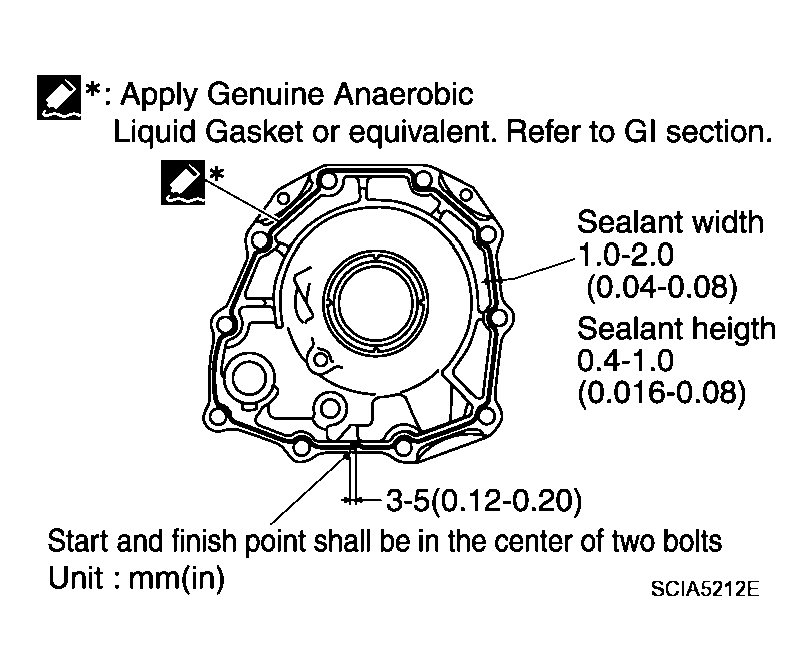

        Fig 7: Applying Recommended Sealant To Output Shaft & Companion Flange Complement
        G04139394Courtesy of NISSAN MOTOR CO., U.S.A.
        CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and output shaft & companion flange complement mounting surfaces.
      2. Install output shaft & companion flange complement to transmission case.

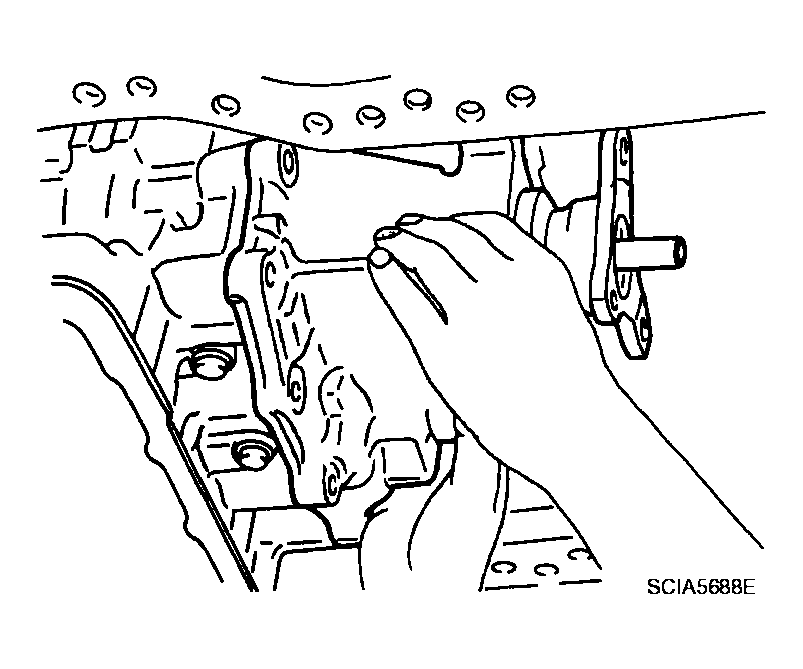

        Fig 8: Installing Output Shaft & Companion Flange Complement To Transmission Case
        G04139395Courtesy of NISSAN MOTOR CO., U.S.A.
      3. Tighten output shaft & companion flange complement bolts (1) to the specified torque. Refer to "REMOVAL AND INSTALLATION ".

        : Bolt (10)

        CAUTION: Do not reuse self-sealing bolts (2).

        Refer to GENERAL INFORMATION to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

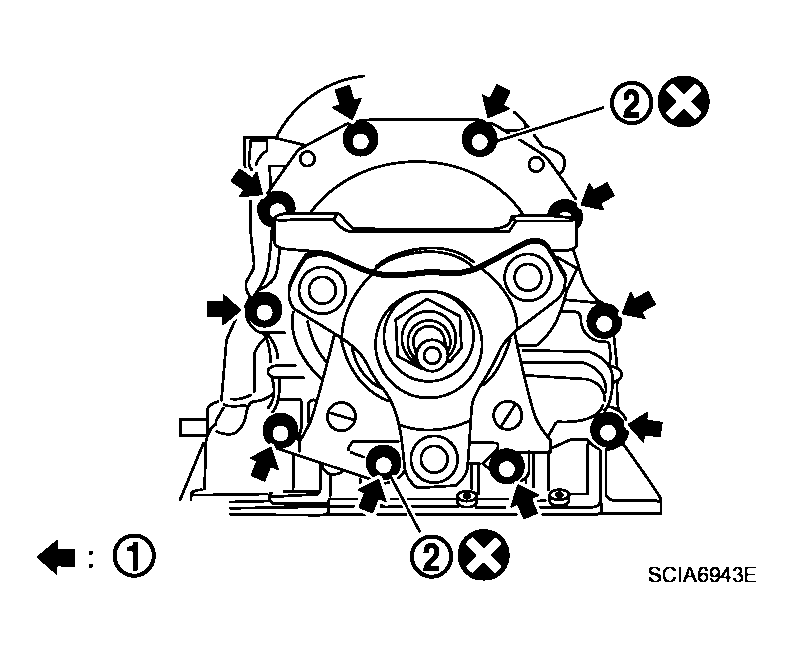

        Fig 9: Identifying Tightening Output Shaft & Companion Flange Complement Bolts
        G04139396Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install rear engine mounting member. Refer to "REMOVAL AND INSTALLATION (2WD MODELS) ".
  6. Install oil pan to transmission case.
    1. Install oil pan gasket to oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
    2. Install oil pan (with oil pan gasket) to transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.

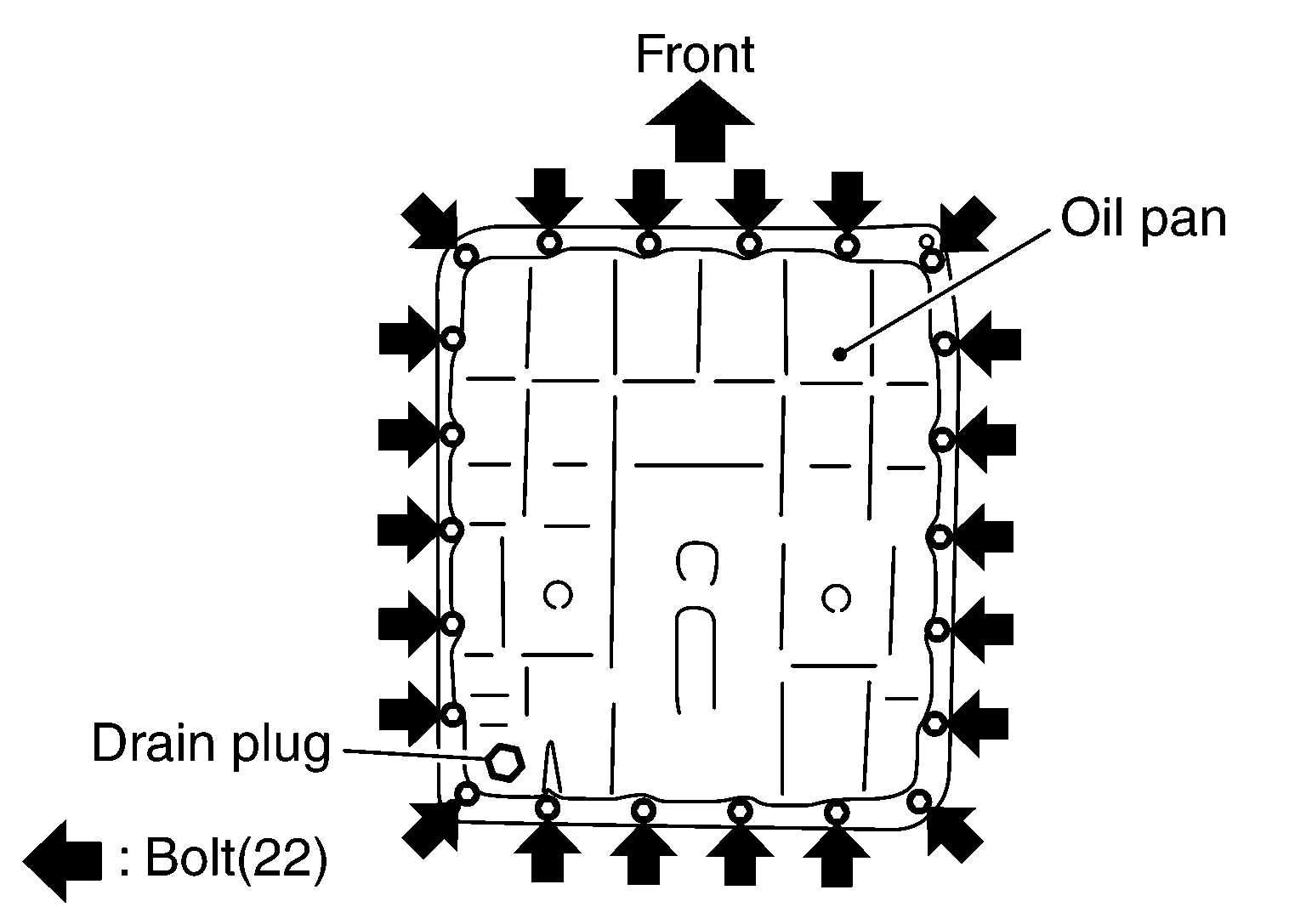

        Fig 10: Identifying Oil Pan Bolts
        G04075672Courtesy of NISSAN MOTOR CO., U.S.A.
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Tighten necessary oil pan mounting bolts with specified torque. Refer to "REMOVAL AND INSTALLATION ".
    CAUTION: Do not reuse oil pan mounting bolts.

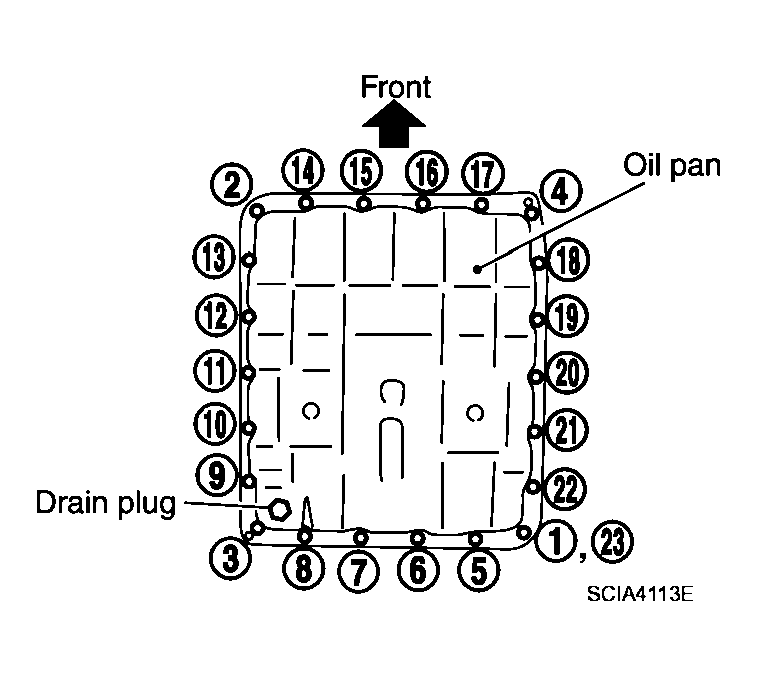

    Fig 11: Identifying Oil Pan Bolts Tightening Sequence
    G04139398Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install drain plug to oil pan. Tighten a necessary drain plug with specified torque. Refer to "REMOVAL AND INSTALLATION ".
    CAUTION: Do not reuse drain plug gasket.
  8. Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  9. Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  10. Install exhaust front tube and center muffler. Refer to "REMOVAL AND INSTALLATION ".
  11. Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".
  12. Connect the battery cable to the negative terminal.
