Cross-Sectional View (VQ35DE Models for 2WD)

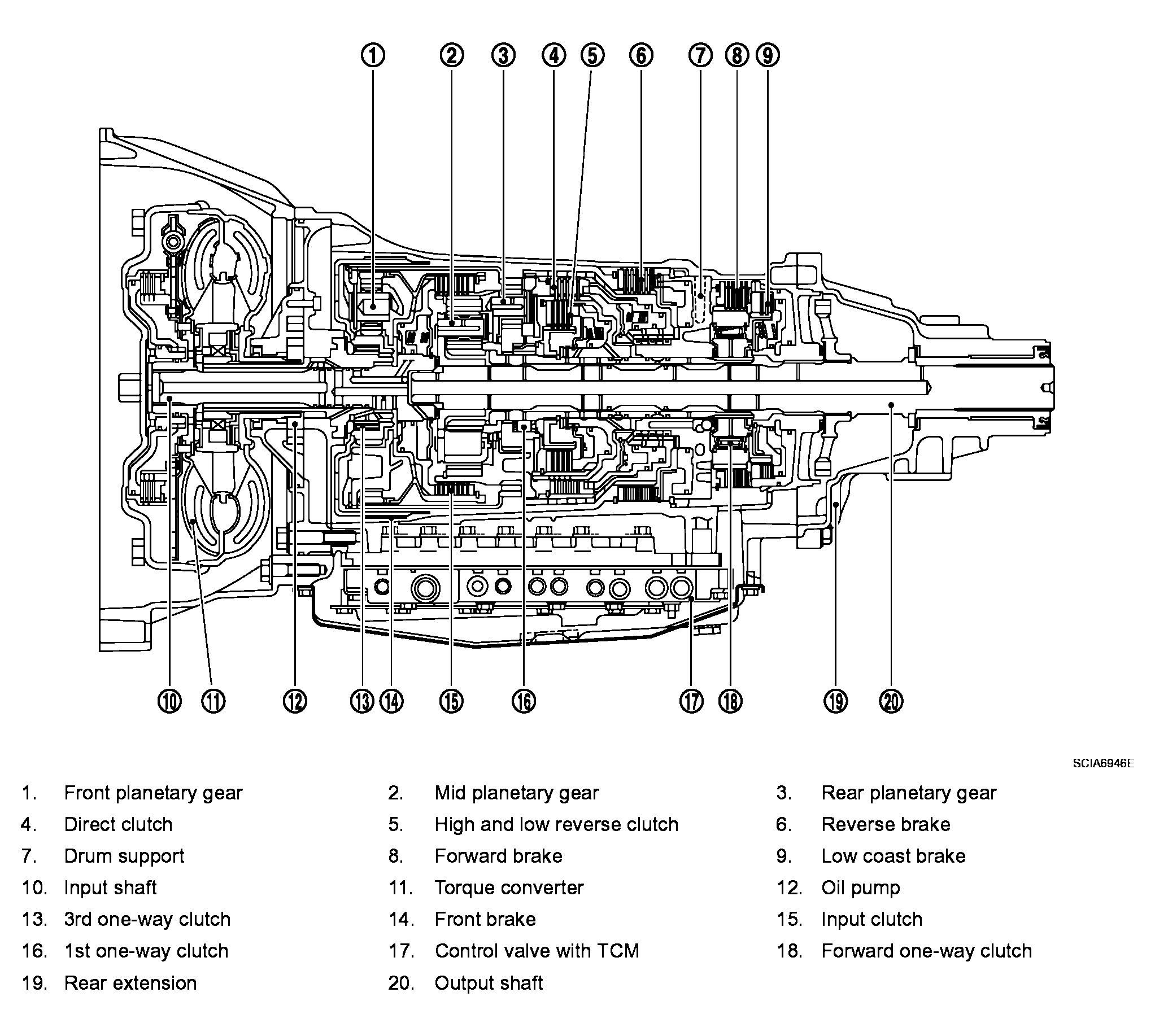

Fig 1: A/T Control System Cross-Sectional View (VQ35DE Models For 2WD)

G04139092

Courtesy of NISSAN MOTOR CO., U.S.A.
