Special Service Tools [SST]

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS DESCRIPTION

Tool number (Kent-Moore No.) Tool name		Description

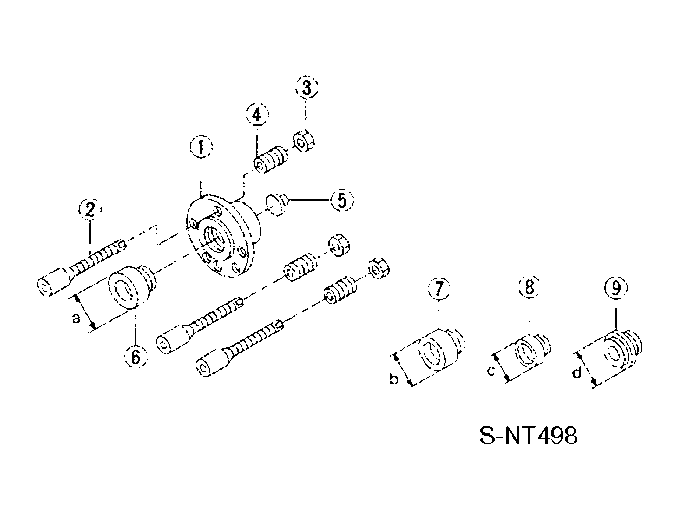

KV991040S0 ( - ) CCK gauge attachment Plate Guide bolt Nut Spring Center plate KV99104020 Adapter A a: 72 mm (2.83 in) dia. KV99104030 Adapter B b: 65 mm (2.56 in) dia. KV99104040 Adapter C c: 57 mm (2.24 in) dia. KV99104050 Adapter D d: 53.4 mm (2.102 in) dia.		Measuring wheel alignment

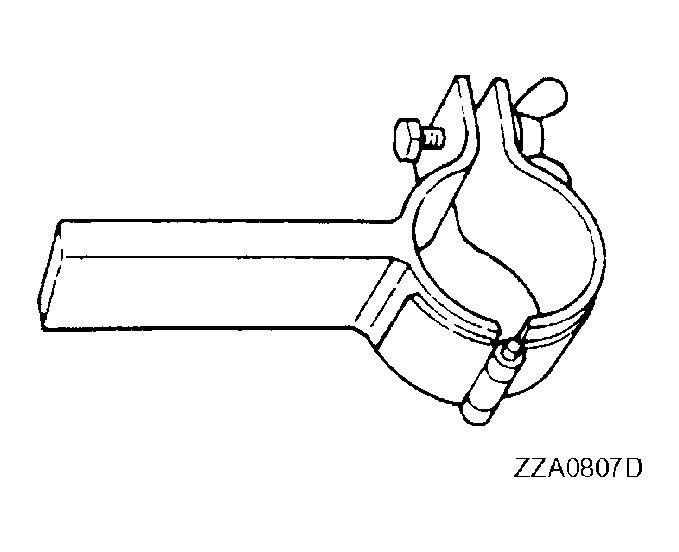

ST35652000 ( - ) Strut attachment		Disassembling and assembling shock absorber
ST3127S000 (See J-25765-A) Preload Gauge GG91030000 (J-25765-A) Torque wrench HT62940000 ( - ) Socket adapter HT62900000 ( - ) Socket adapter		Measuring rotating torque of ball joint
