Trouble Diagnosis: Schematic

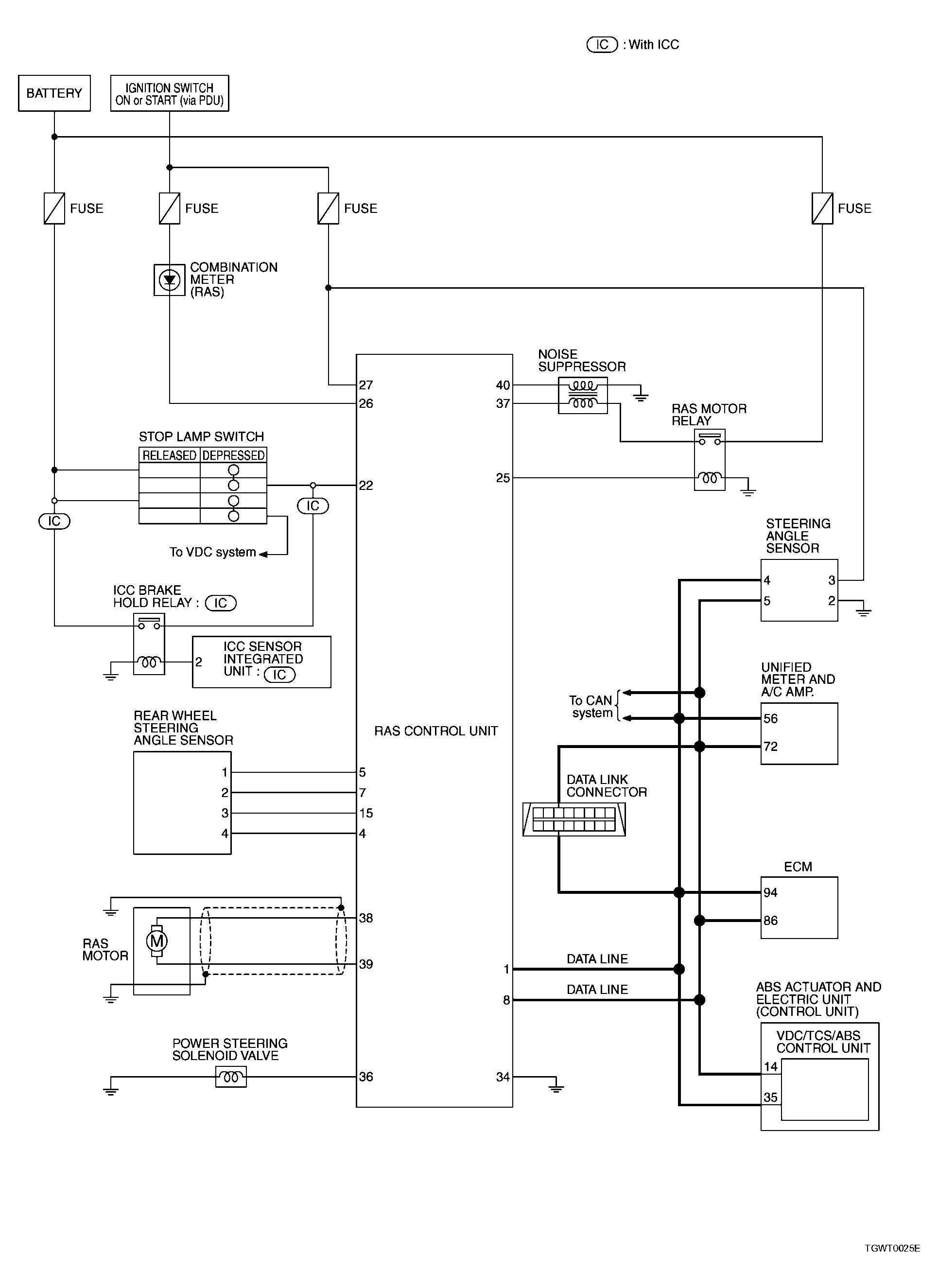

Fig 1: Schematic Diagram

G04144930

Courtesy of NISSAN MOTOR CO., U.S.A.
