Rear Fender

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

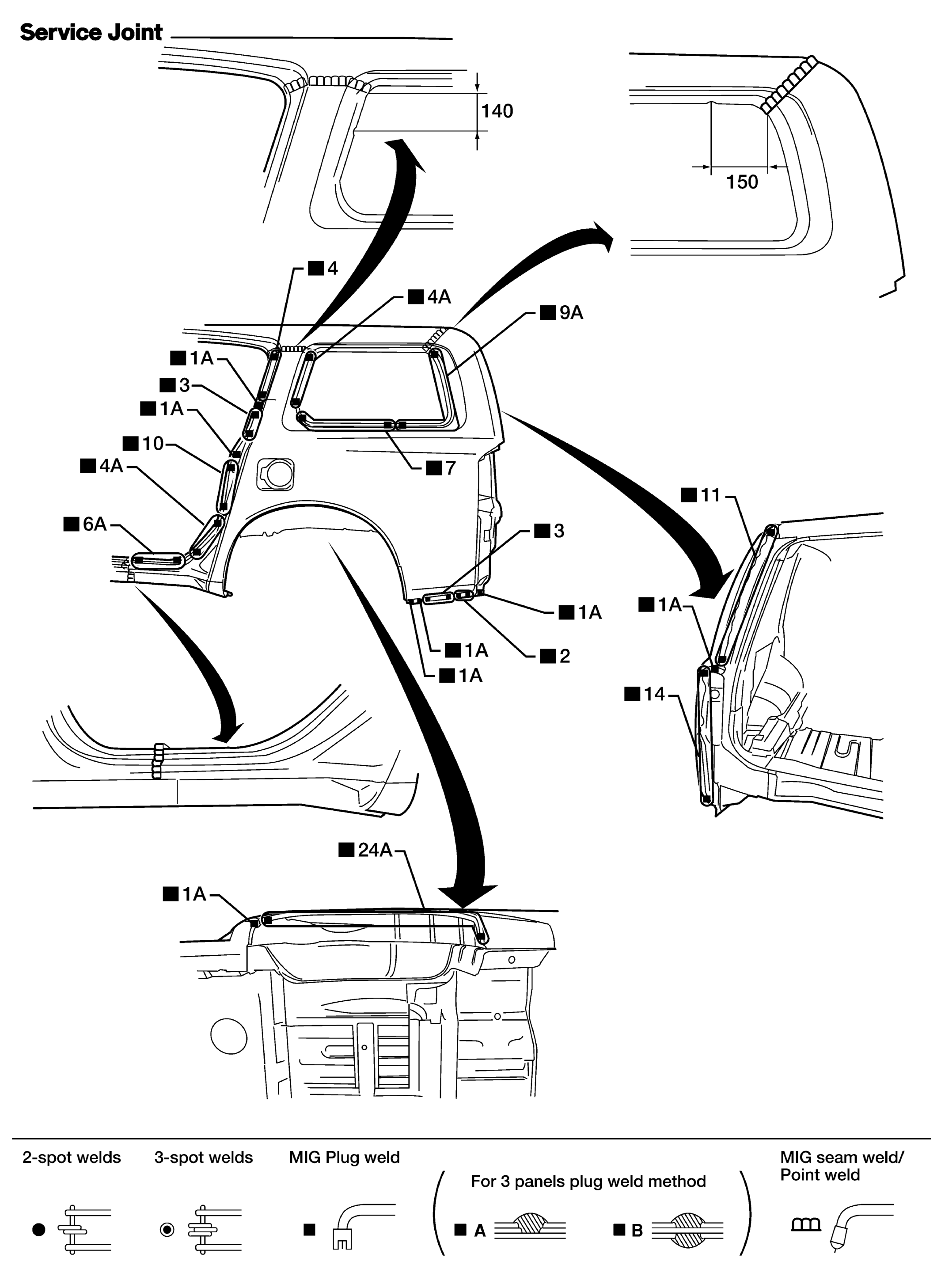

Fig 1: Identifying Rear Fender Service Joint (1 Of 2)
G04135236Courtesy of NISSAN MOTOR CO., U.S.A.

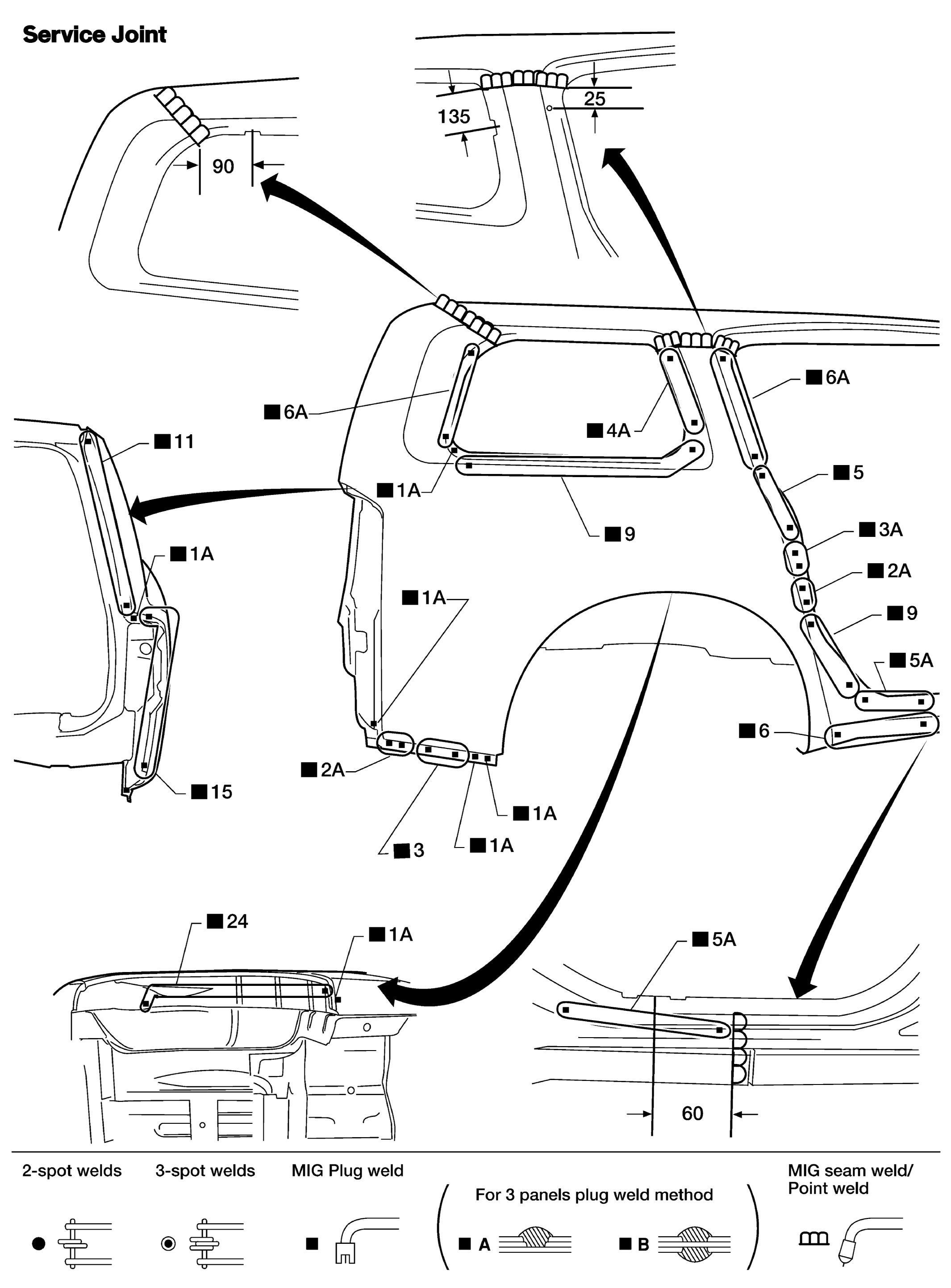

Fig 2: Identifying Rear Fender Service Joint (2 Of 2)
G04135237Courtesy of NISSAN MOTOR CO., U.S.A.
