With Consult-II

Selecting "SRT STATUS" in "DTC CONFIRMATION" mode with CONSULT-II.

For items whose SRT codes are set, a "CMPLT" is displayed on the CONSULT-II screen; for items whose SRT codes are not set, "INCMP" is displayed.

A sample of CONSULT-II display for SRT code is shown at right. "INCMP" means the self-diagnosis is incomplete and SRT is not set. "CMPLT" means the self-diagnosis is complete and SRT is set.

Fig 1: Consult-II Display - Srt Status

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Though displayed on the CONSULT-II screen, "HO2S HTR" is not SRT item.

WITH GST

Selecting Service $01 with GST (Generic Scan Tool)

NO TOOLS

A SRT code itself can not be displayed while only SRT status can be.

Turn ignition switch ON and wait 20 seconds.
SRT status is indicated as shown below.
- When all SRT codes are set, MIL lights up continuously.
- When any SRT codes are not set, MIL will flash periodically for 10 seconds.

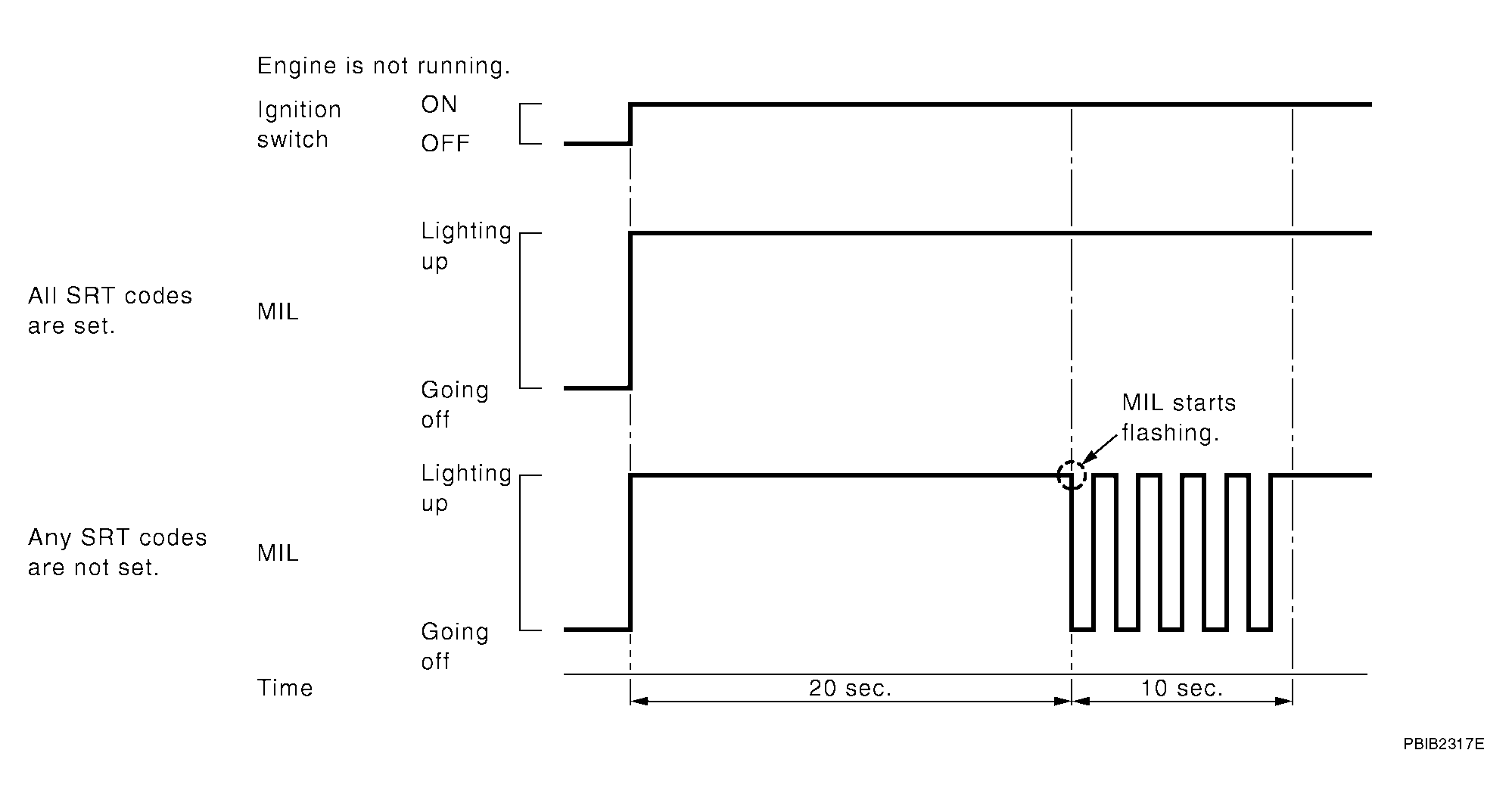

Fig 2: Identifying MIL Blinking Pattern
Courtesy of NISSAN MOTOR CO., U.S.A.
