Timing Chain: Components

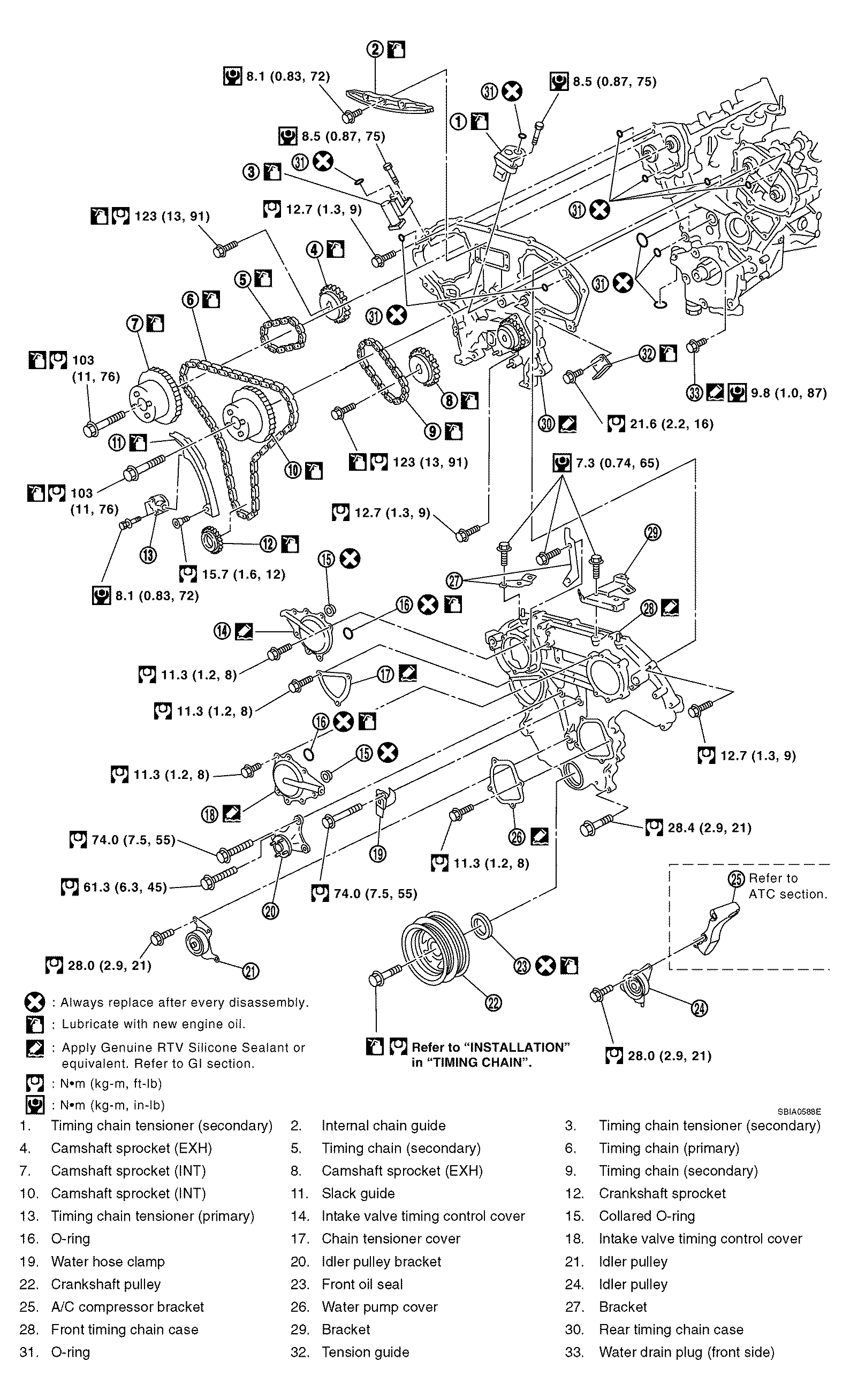

Fig 1: Exploded View Of Timing Chain

G04137455

Courtesy of NISSAN MOTOR CO., U.S.A.
