Commercial Service Tools

COMMERCIAL SERVICE TOOLS

(Kent-Moore No.) Tool name		Description
( - ) Power tool :		Loosening nuts and bolts

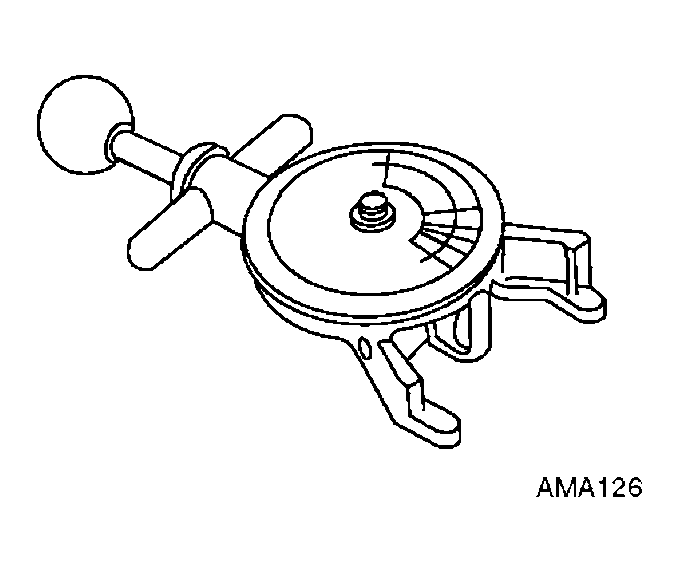

(BT3373-F) Belt tension gauge :		Checking drive belt tension

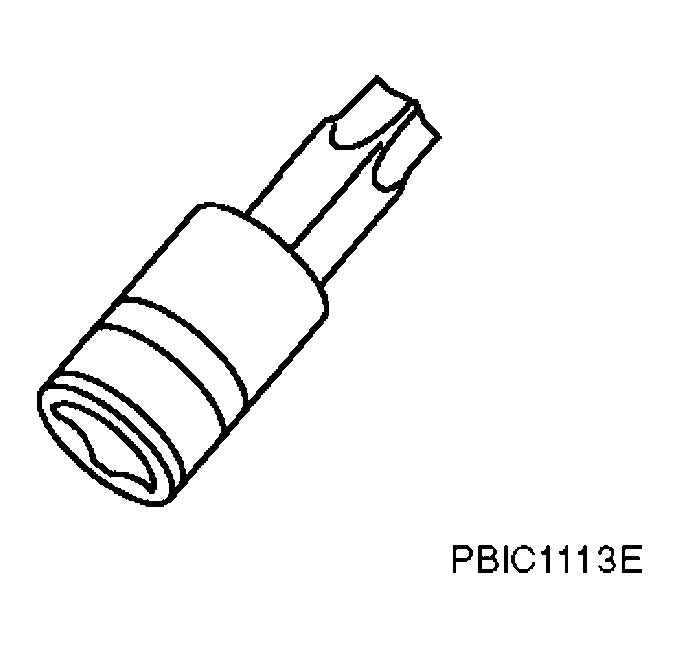

( - ) TORX socket :		Removing and installing drive plate Size: T55

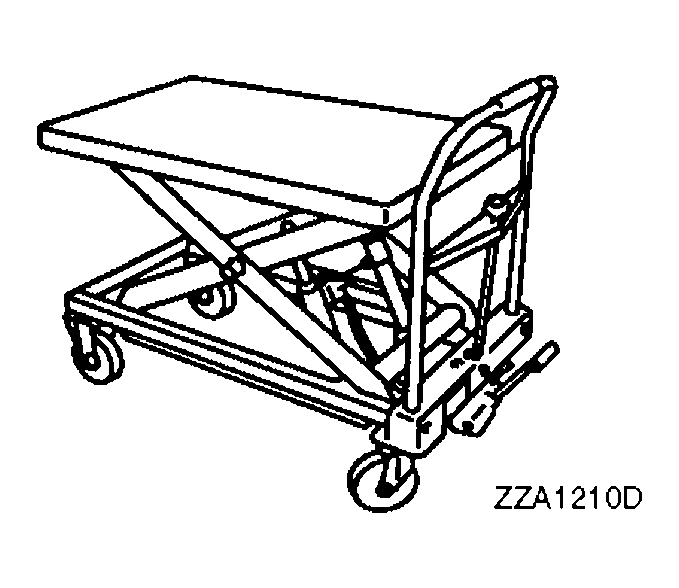

( - ) Manual lift table caddy :		Removing and installing engine

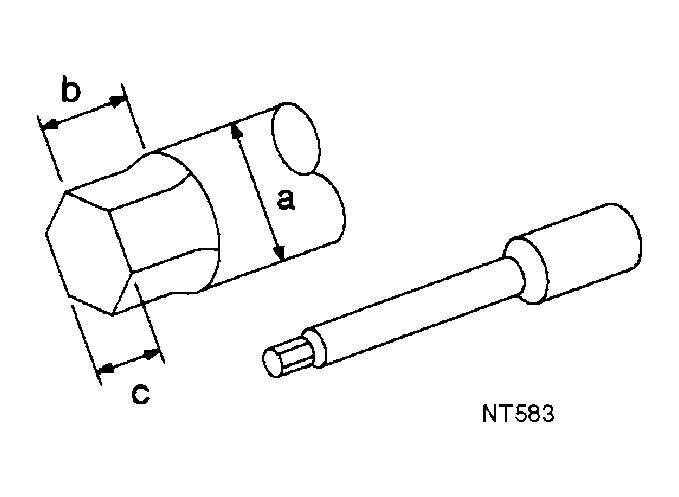

(J24239-01) Cylinder head bolt wrench :		Loosening and tightening cylinder head bolt, and used with the angle wrench [SST: KV10112100 (BT8653-A)] 13 (0.51) dia. 12 (0.47) 10 (0.39) Unit: mm (in)

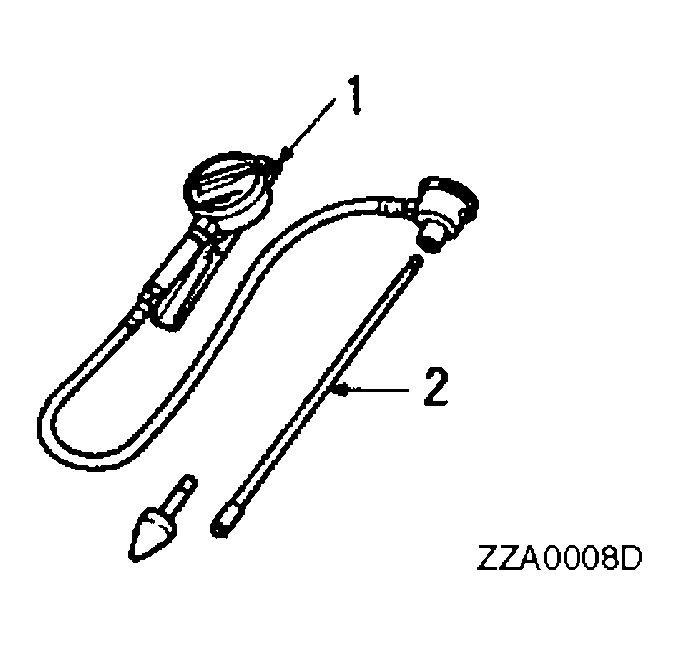

( - ) 1.Compression gauge 2.Adapter :		Checking compression pressure

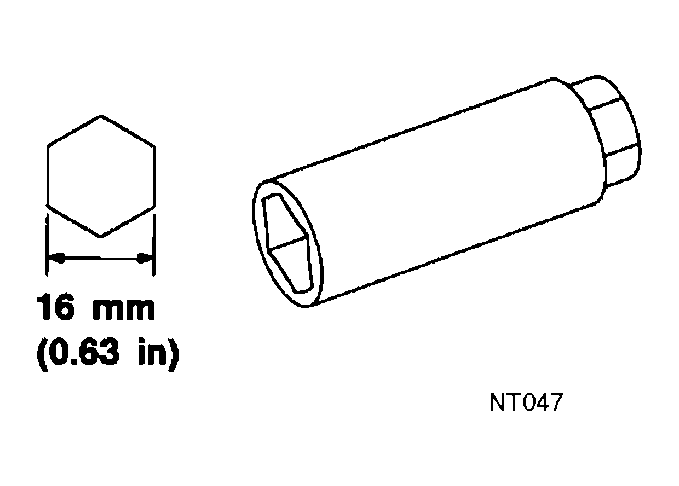

( - ) Spark plug wrench :		Removing and installing spark plug

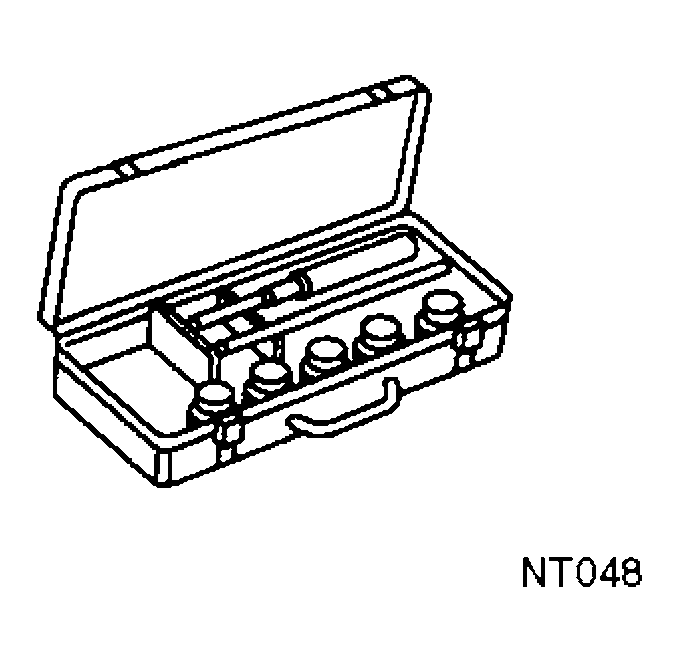

( - ) Valve seat cutter set :		Finishing valve seat dimensions

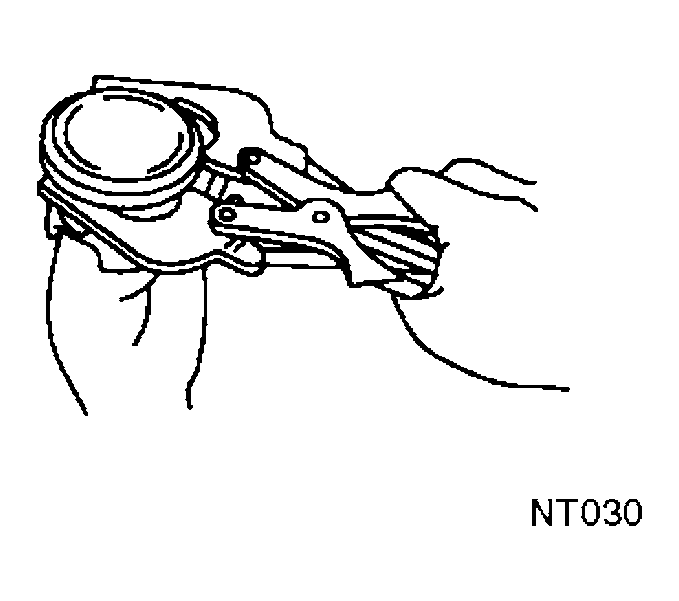

( - ) Piston ring expander :		Removing and installing piston ring

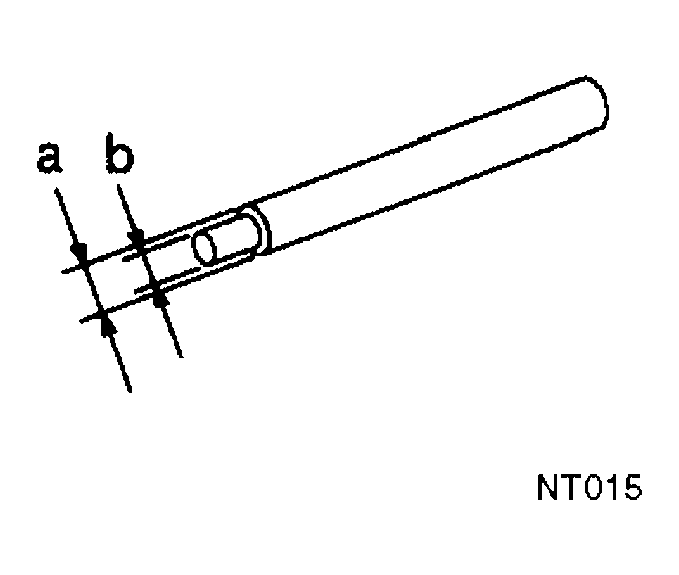

( - ) Valve guide drift :		Removing and installing valve guide Intake and Exhaust: 9.5 mm (0.374 in) dia. 5.5 mm (0.217 in) dia.

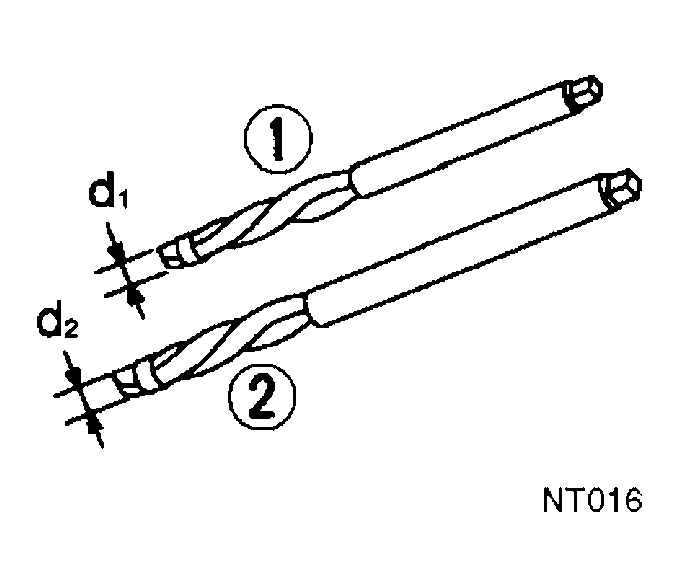

( - ) Valve guide reamer :		: Reaming valve guide inner hole : Reaming hole for oversize valve guide Intake and Exhaust: d1 : 6.0 mm (0.236 in) dia. d2 : 10.2 mm (0.402 in) dia.
(J-43897-18) (J-43897-12) Oxygen sensor thread cleaner :		Reconditioning the exhaust system threads before installing a new air fuel ratio sensor and heated oxygen sensor (Use with antiseize lubricant shown below.) : J-43897-18 [18 mm (0.71 in) dia.] for zirconia heated oxygen sensor and air fuel ratio sensor : J-43897-12 [12 mm (0.47 in) dia.] for titania heated oxygen sensor and air fuel ratio sensor
( - ) Anti-seize lubricant (Permatex 133AR or equivalent meeting MIL specification MIL-A-907) :		Lubricating oxygen sensor thread cleaning tool when reconditioning exhaust system threads
