Intake Manifold Collector: Components

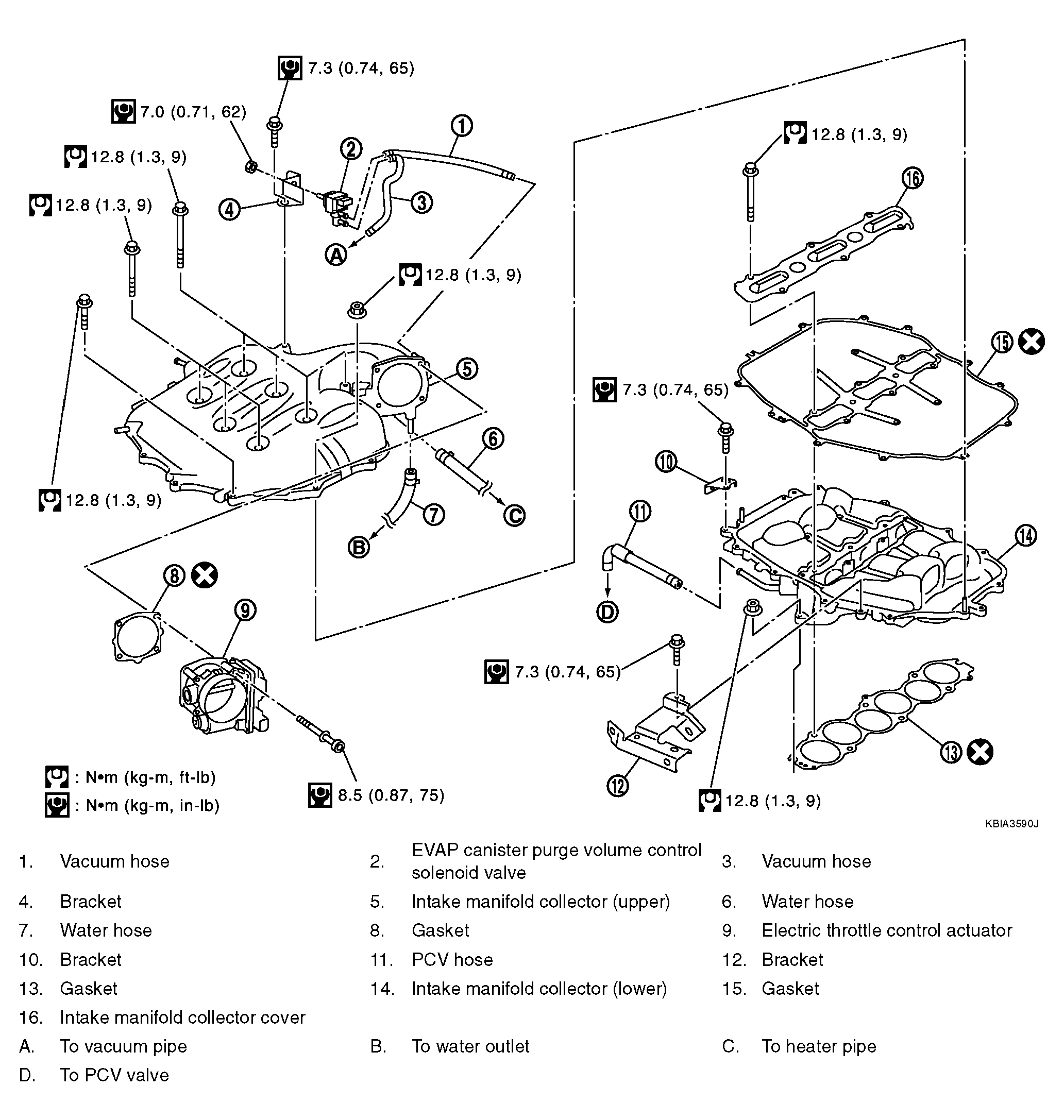

Fig 1: Intake Manifold Collector Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

• Refer to "COMPONENTS " for symbol marks in the figure.
