Components (AWD Models)

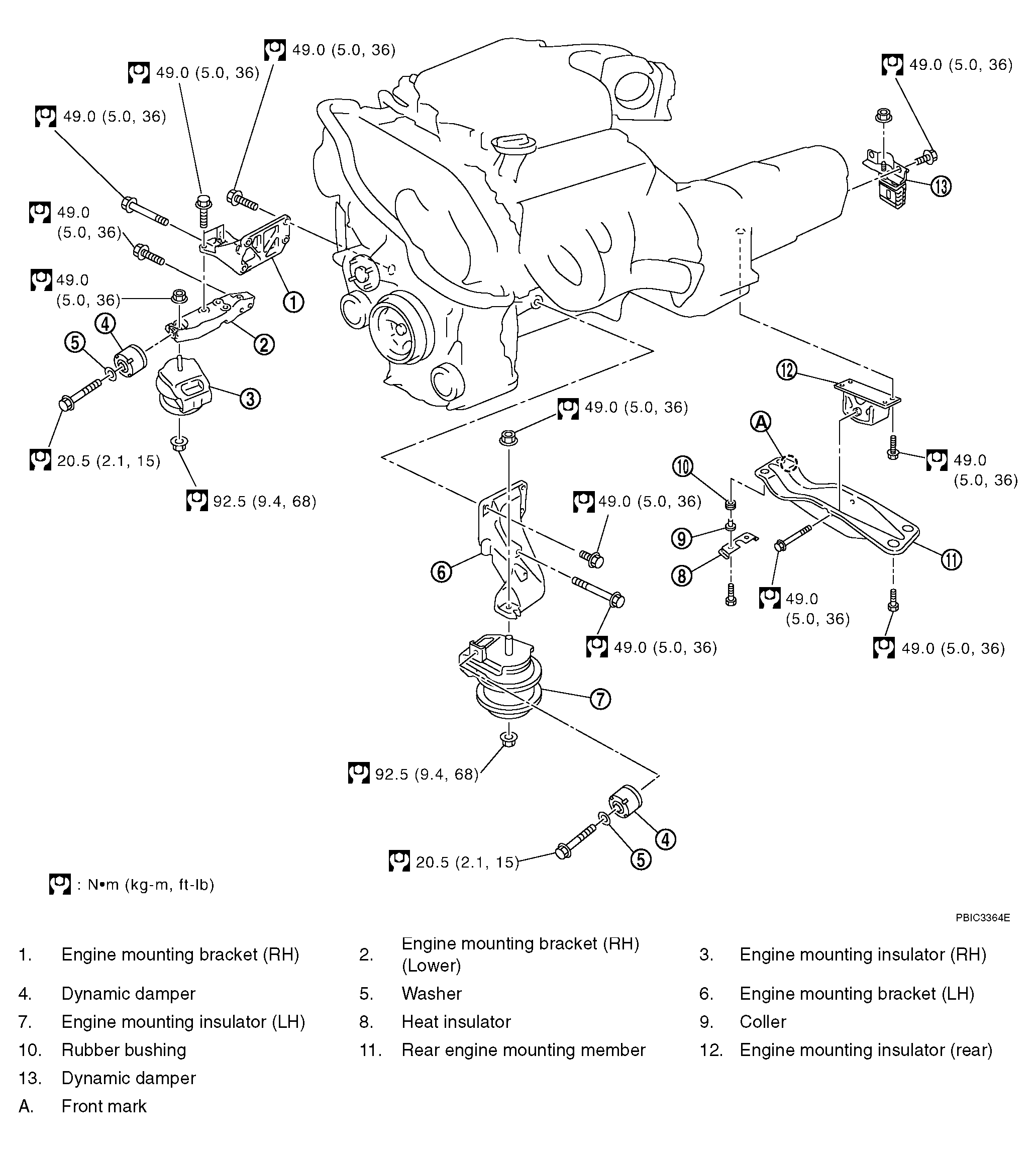

Fig 1: Engine Assembly Replacement Components With Torque Specifications (AWD Models)

G04137594

Courtesy of NISSAN MOTOR CO., U.S.A.
