Components (2WD Models)

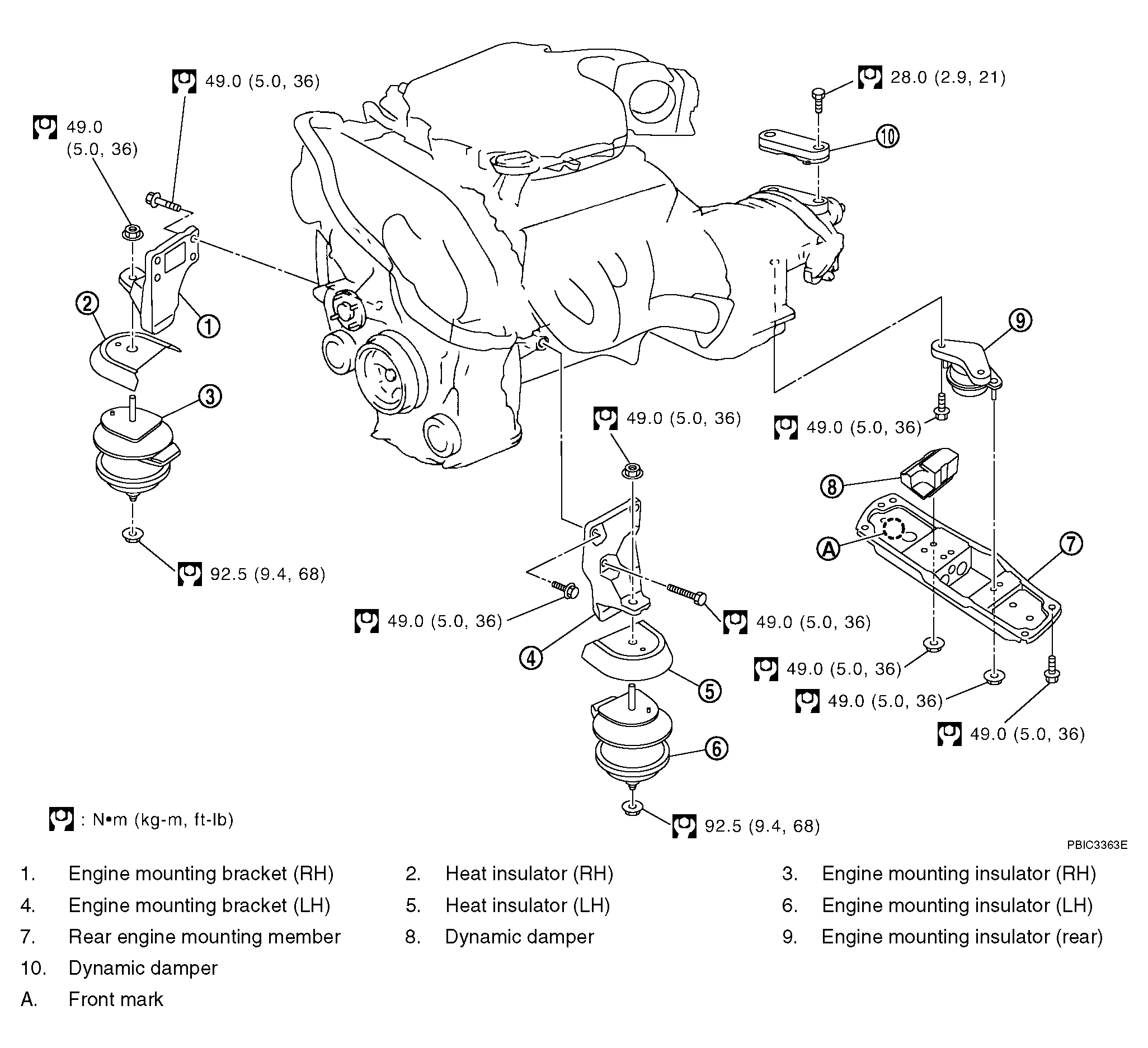

Fig 1: Engine Assembly Replacement Components With Torque Specifications (2Wd Models)

G04137588

Courtesy of NISSAN MOTOR CO., U.S.A.
