Cylinder Block: Components

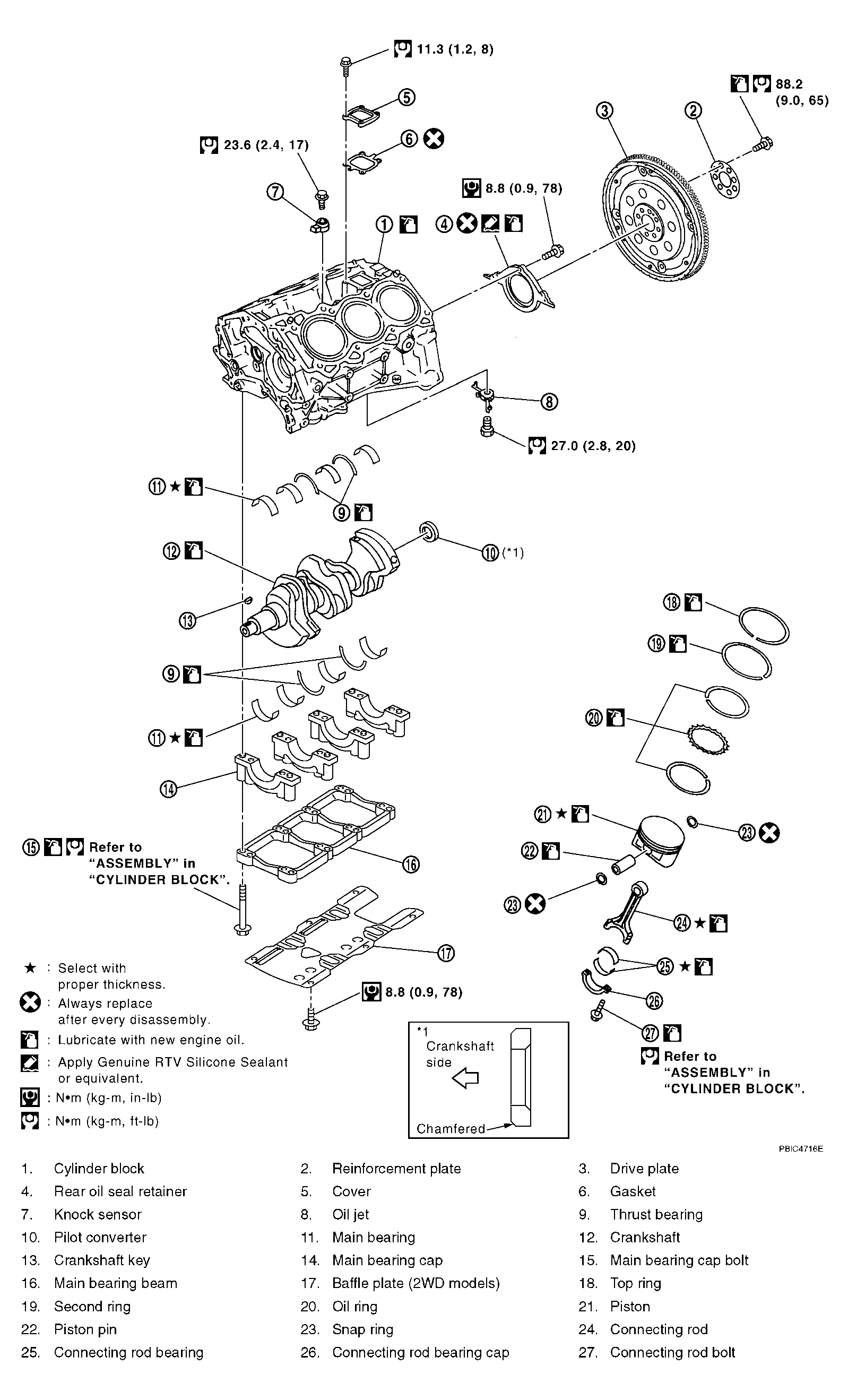

Fig 1: Cylinder Block Replacement Components With Torque Specifications
G04137599Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION .

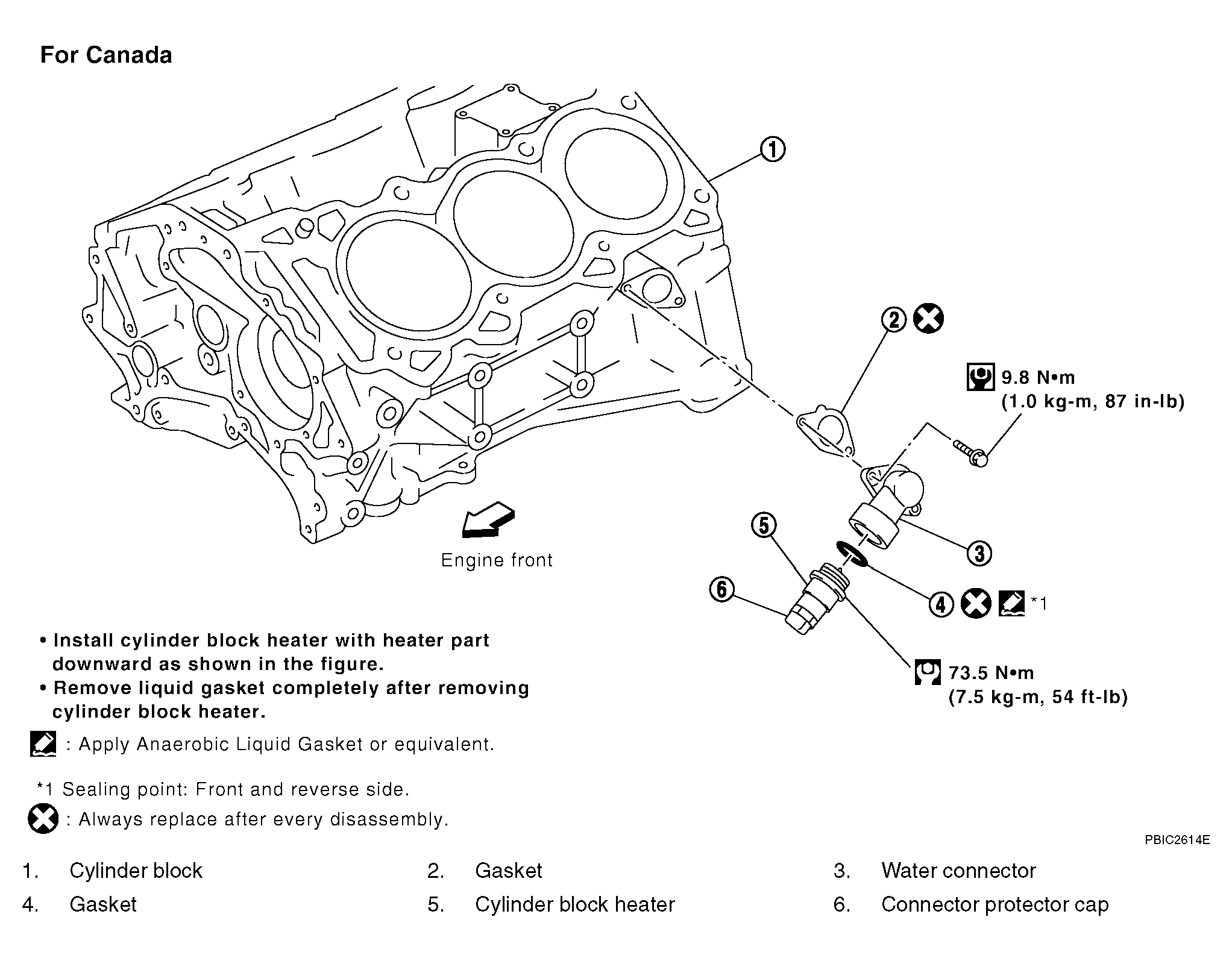

Fig 2: Cylinder Block Replacement Components With Torque Specifications (Canada)
G04137600Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION .
