Warning Chime: Schematic

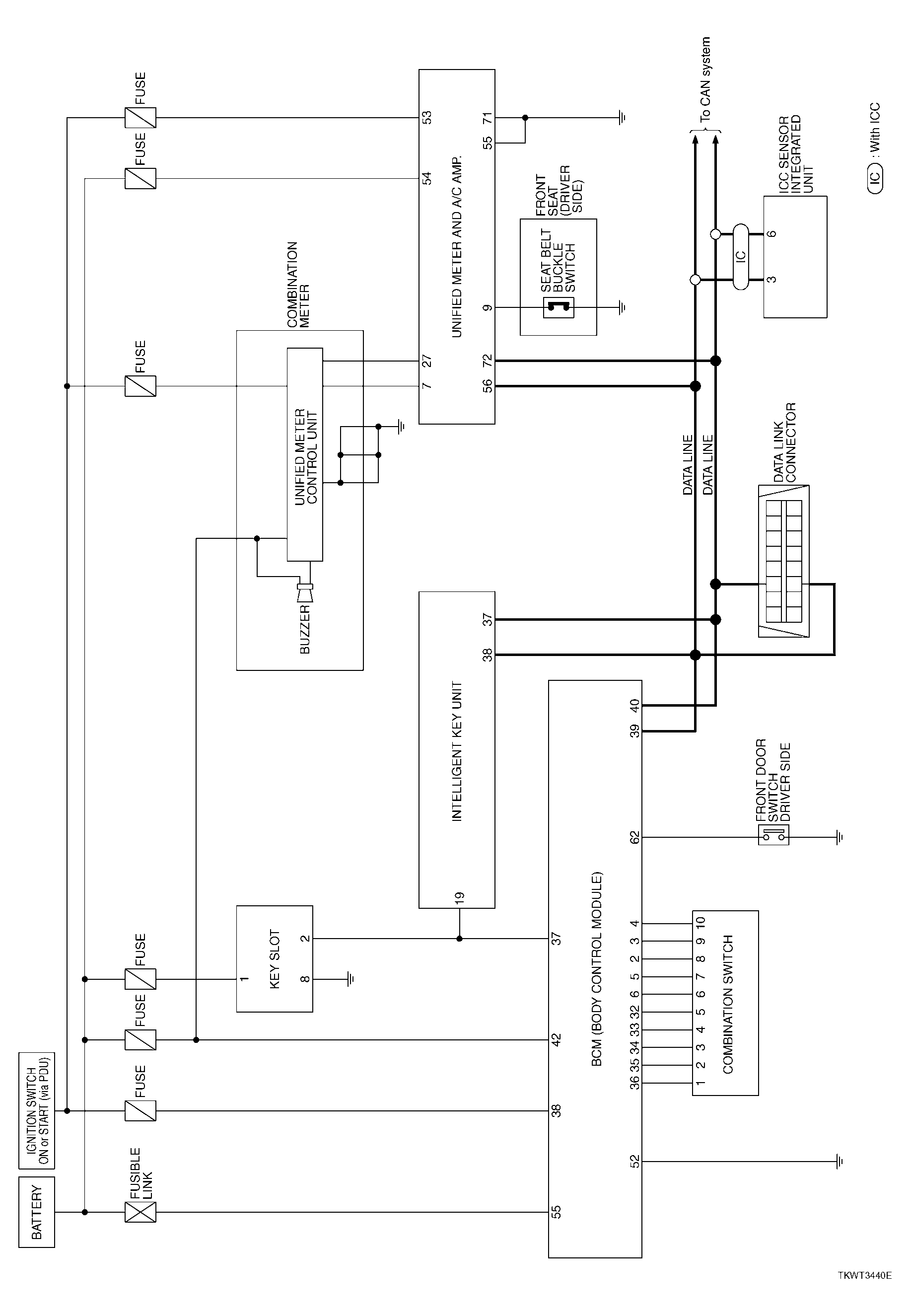

Fig 1: Warning Chime Schematic Diagram

G04140611

Courtesy of NISSAN MOTOR CO., U.S.A.
