Consult-II Basic Operation

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and then turn ignition switch ON.

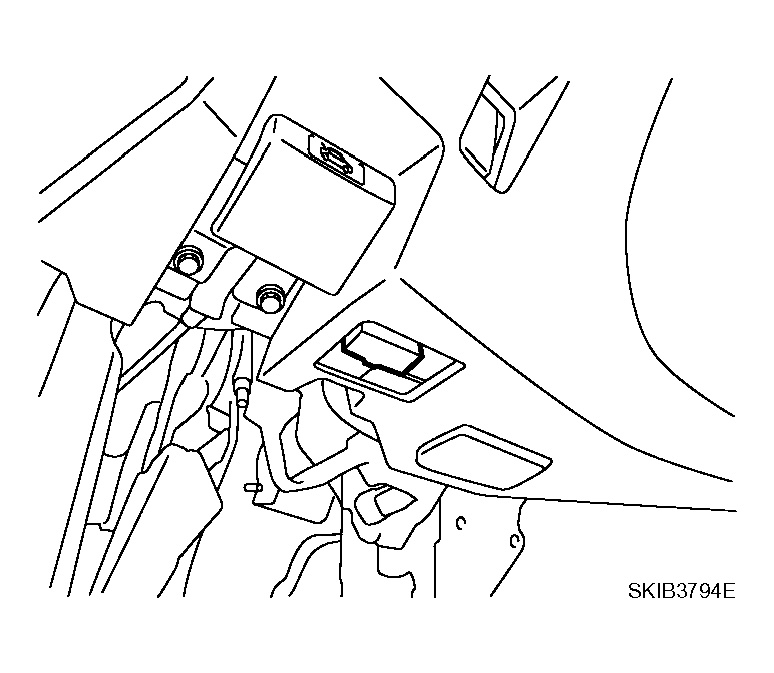

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "LDW" on "SELECT SYSTEM" screen.
If "LDW" is not displayed, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch any field, "WORK SUPPORT", "SELF-DIAG RESULTS", "DATA MONITOR", "CAN DIAG SUPPORT MNTR", "ACTIVE TEST" or "ECU PART NUMBER", on selection screen.

Fig 4: Consult-II SELECT DIAG MODE Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
