VQ35DE Engine Models: Notes

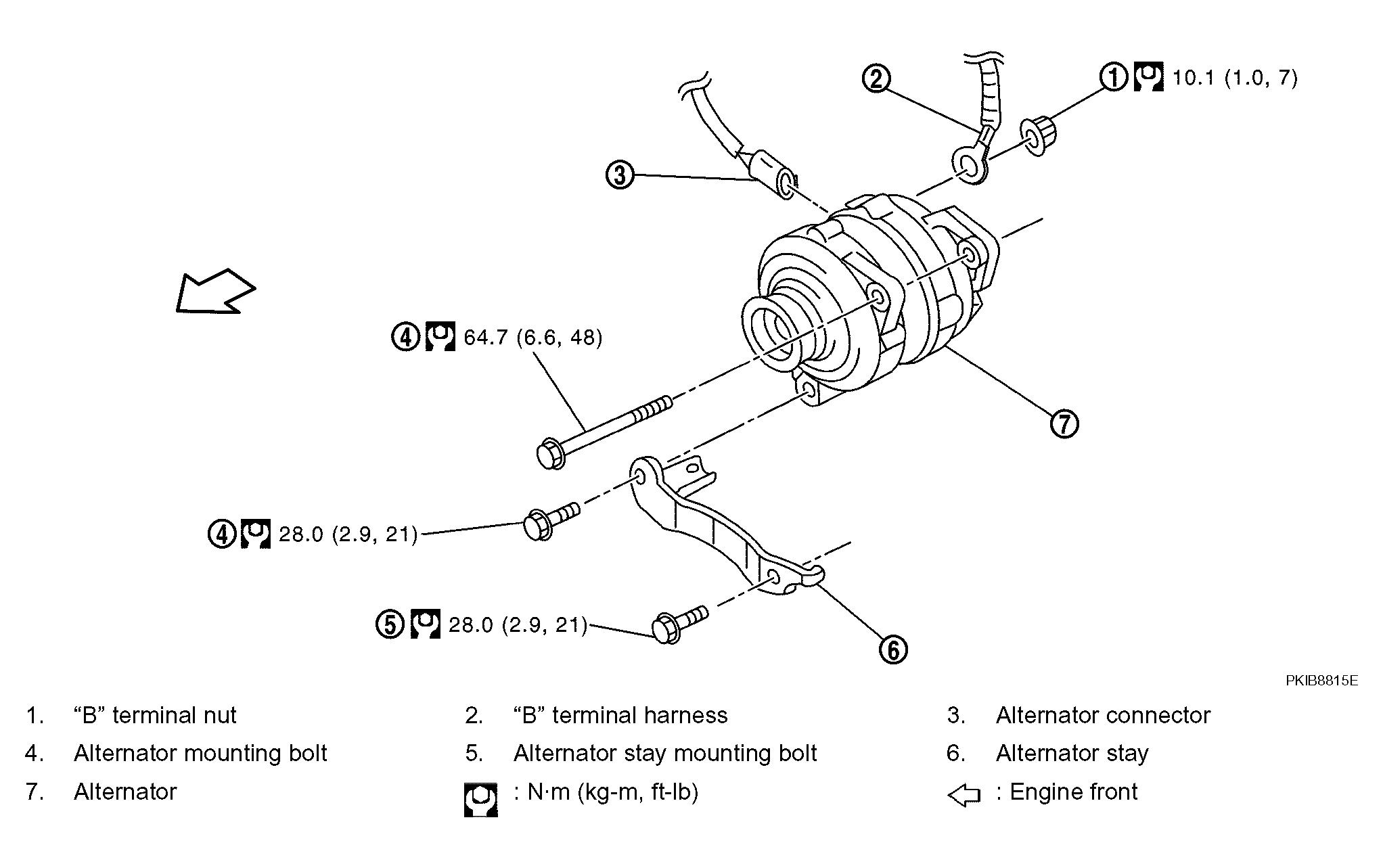

Fig 1: Alternator Replacement Components With Torque Specifications (VQ35DE)

G04140030

Courtesy of NISSAN MOTOR CO., U.S.A.
