VK45DE Engine Models: Notes

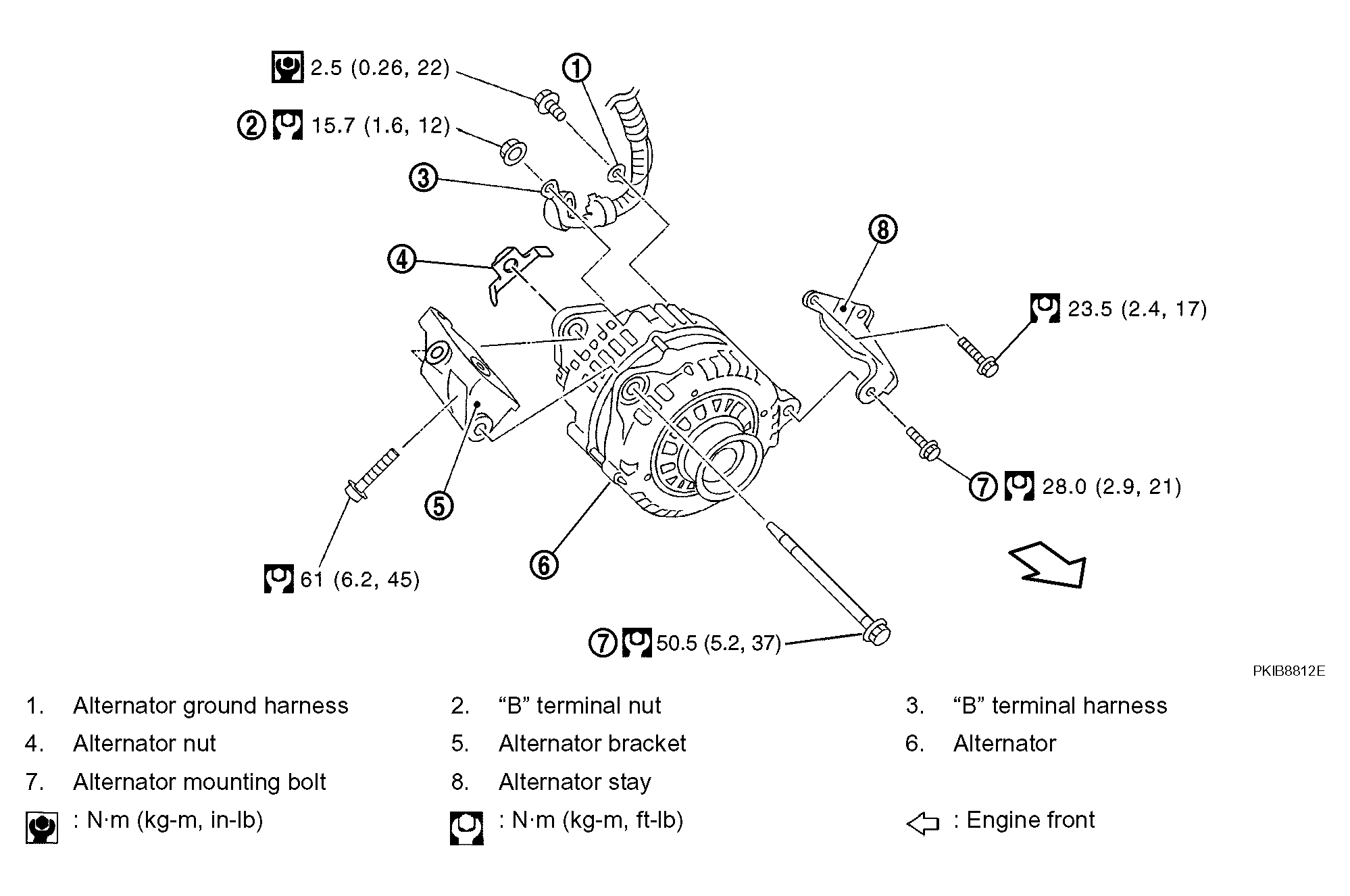

Fig 1: Alternator Replacement Components With Torque Specifications (VK45DE)

G04140036

Courtesy of NISSAN MOTOR CO., U.S.A.
