Disassembly and Assembly
>>
VQ35DE Engine Models
VQ35DE Engine Models

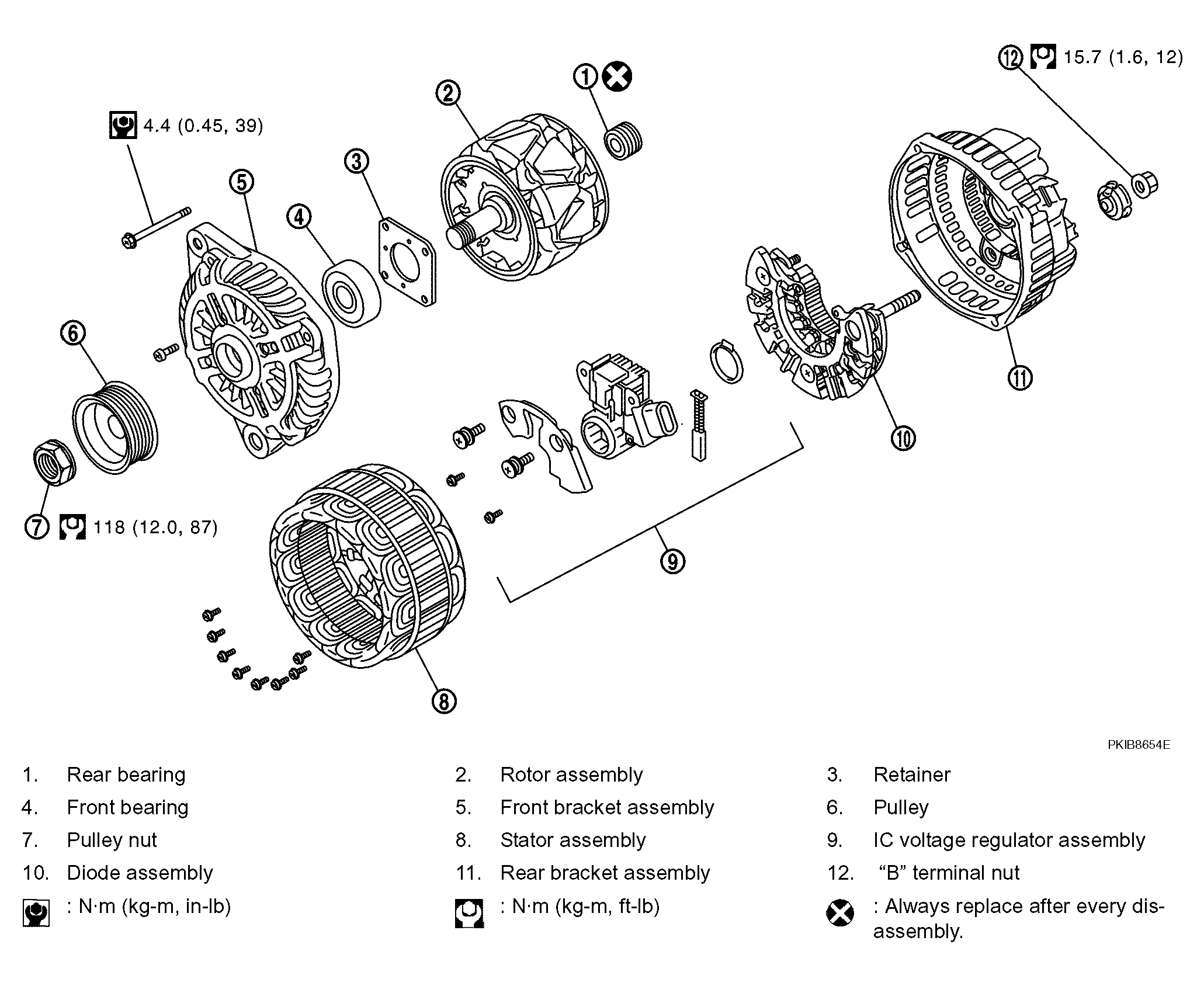

Fig 1: Exploded View Of Alternator With Torque Specifications (VQ35DE)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
