ECM Connector End View (F108)

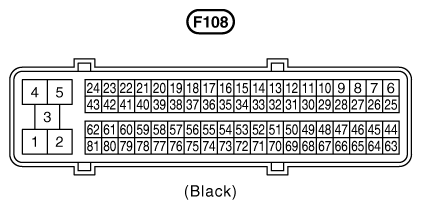

Fig 1: ECM Connector End View (F108)

G10841786

Courtesy of NISSAN NORTH AMERICA, INC.
