Side Shaft Assembly

  1. Hold extension tube retainer with puller, then press out side shaft using a press.

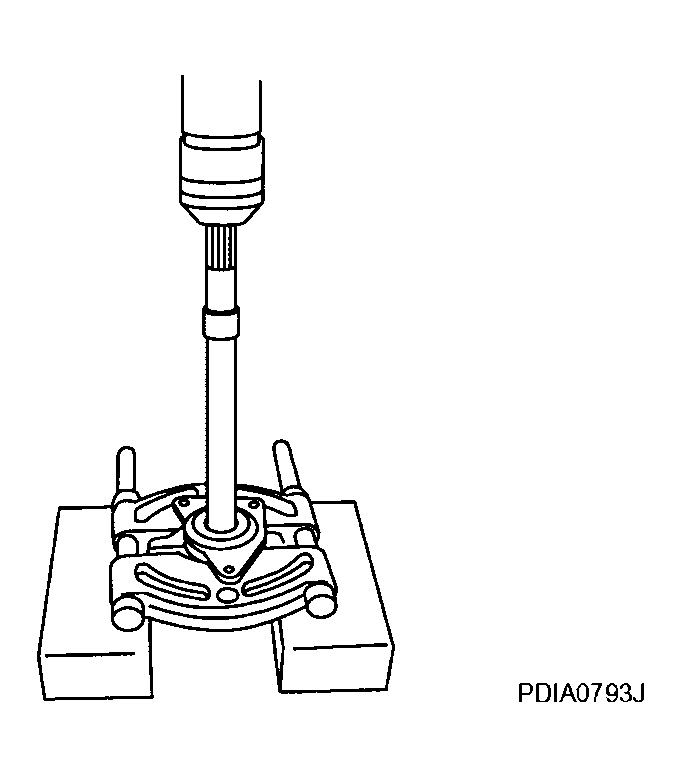

    Fig 1: Pressing Out Side Shaft Using Tool
    G04144407Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove side shaft oil seal (1) from extension tube retainer with a flat-blade screwdriver.
    CAUTION: Be careful not to damage extension tube retainer.
  3. Remove side shaft bearing from extension tube retainer.
  4. Remove O-ring from extension tube retainer.
  5. Remove dust sealed from side shaft.

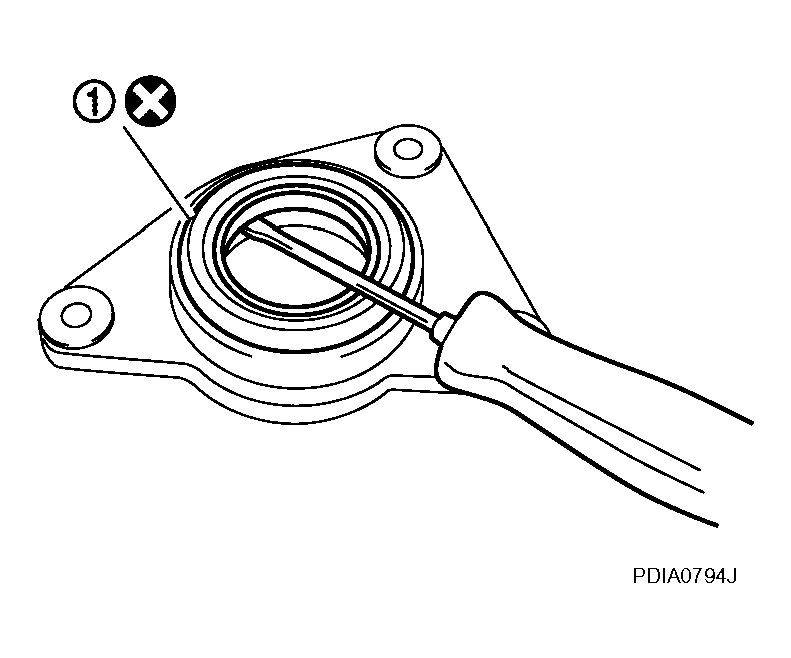

Fig 2: Removing Side Shaft Oil Seal
G04144408Courtesy of NISSAN MOTOR CO., U.S.A.
