Heated Seat: Schematic

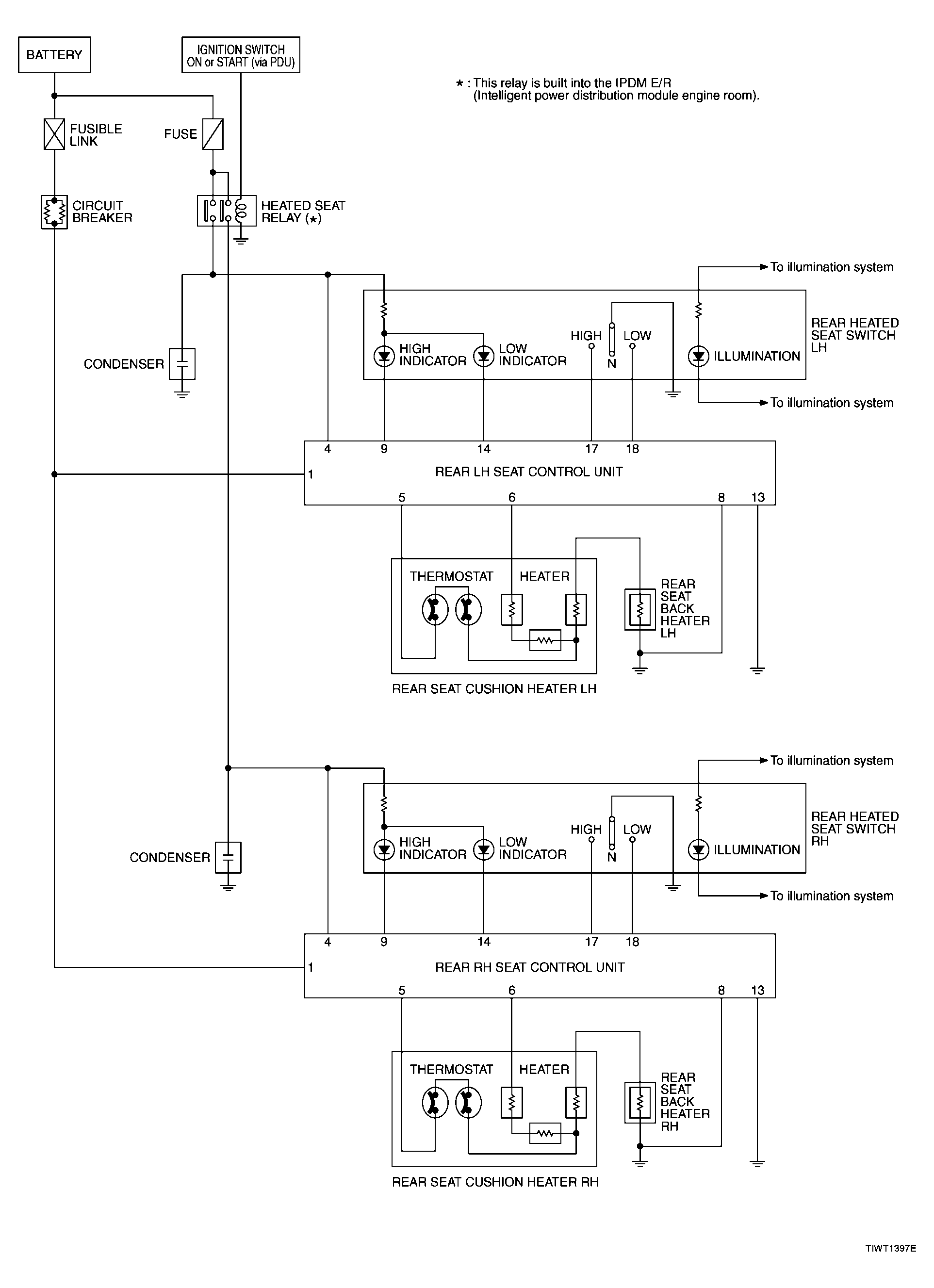

Fig 1: Heated Seat - Schematic Diagram

G04146109

Courtesy of NISSAN MOTOR CO., U.S.A.
