Climate Controlled Seat: Schematic

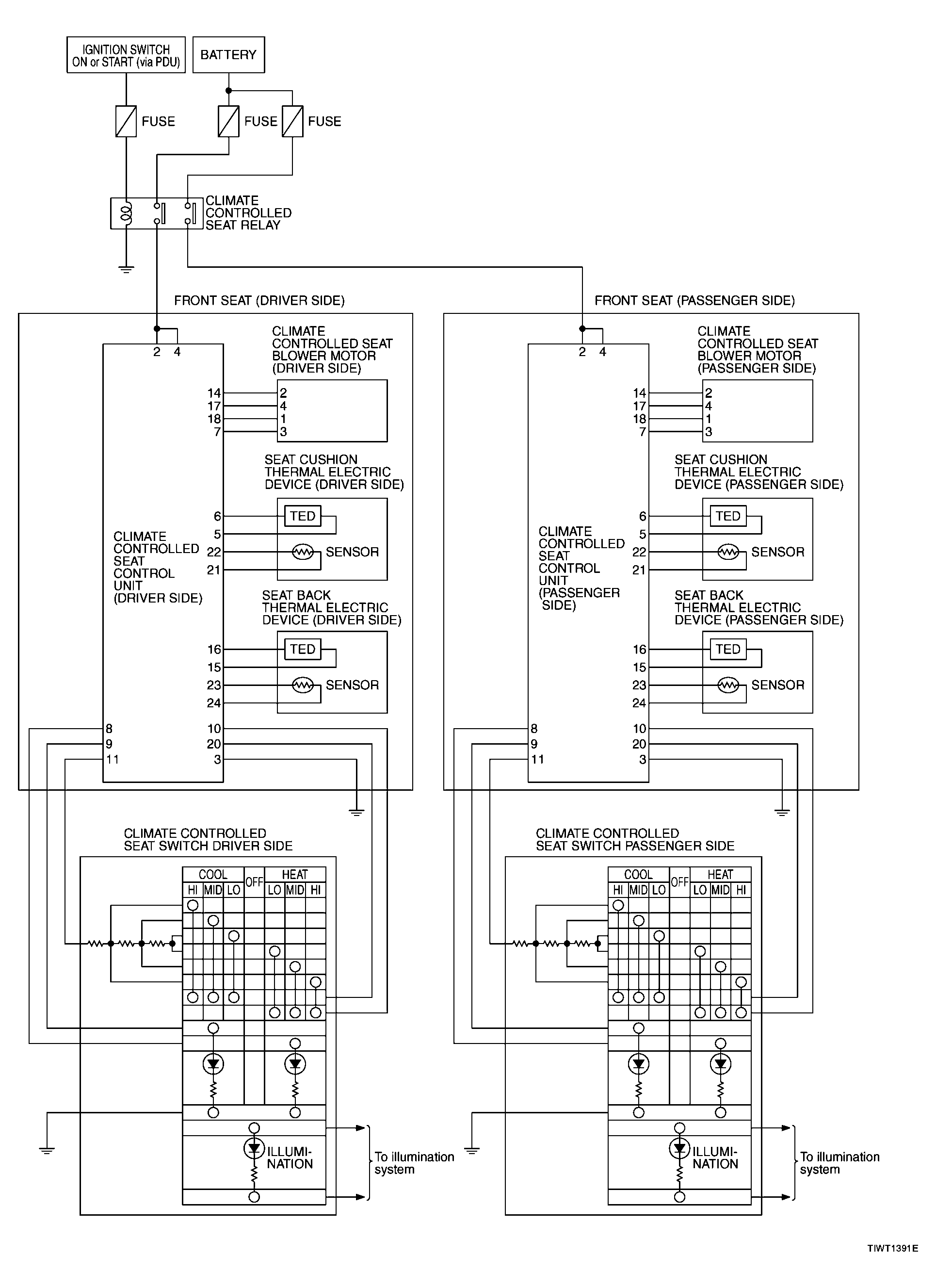

Fig 1: Climate Controlled Seat - Schematic Diagram

G04146073

Courtesy of NISSAN MOTOR CO., U.S.A.
