Infiniti
>>
2006
>>
M35 Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Body, Lock & Security System
>>
Rear Door Lock
>>
Component Structure
Component Structure

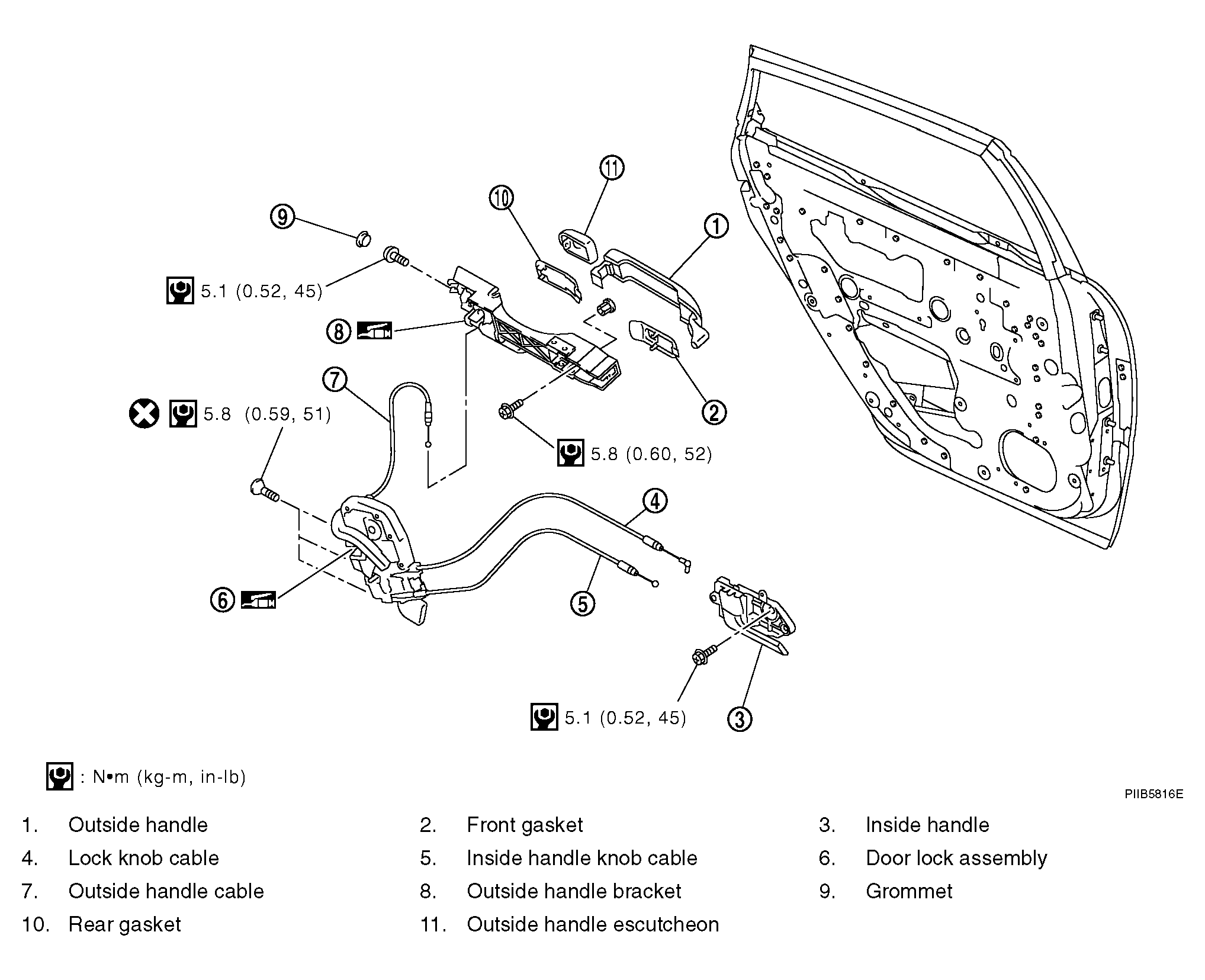

Fig 1: Exploded View Of Rear Door Lock With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
