Outer Sill

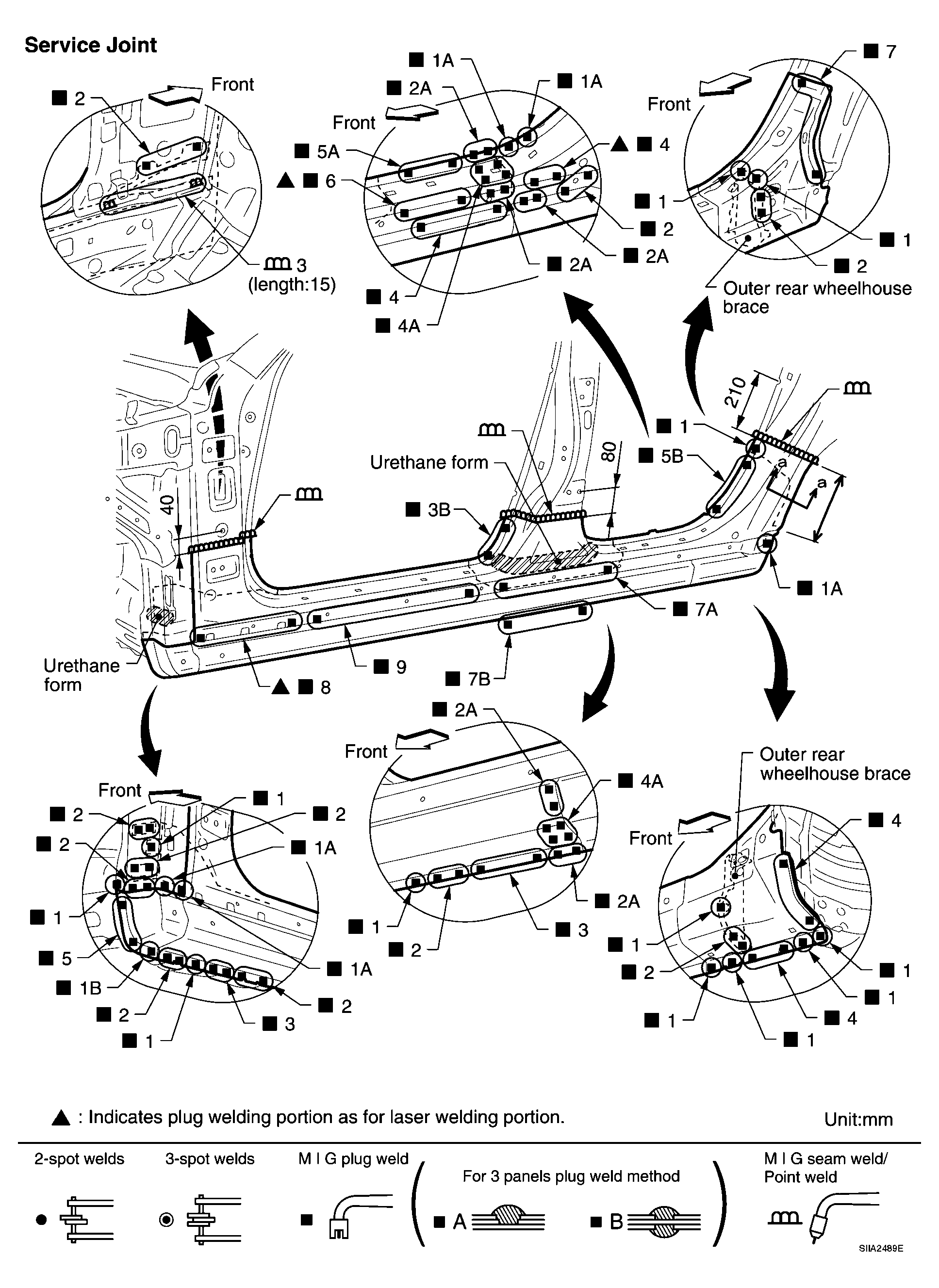

Fig 1: Identifying Outer Sill Service Joints (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Change parts

• Outer sill (LH)
• Outer sill reinforcement (LH)
• Outer rear wheelhouse extension (LH)

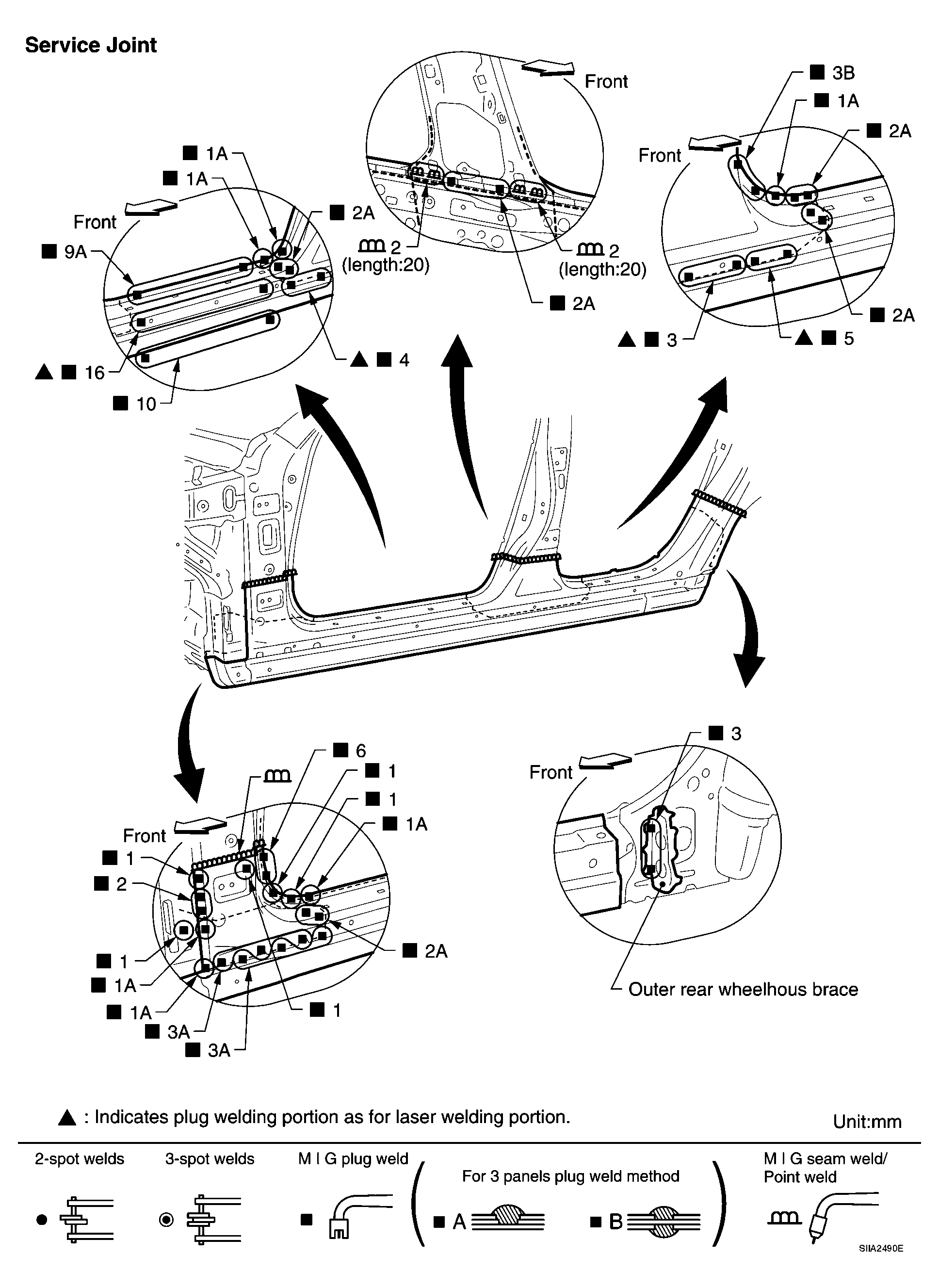

Fig 2: Identifying Outer Sill Service Joints (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

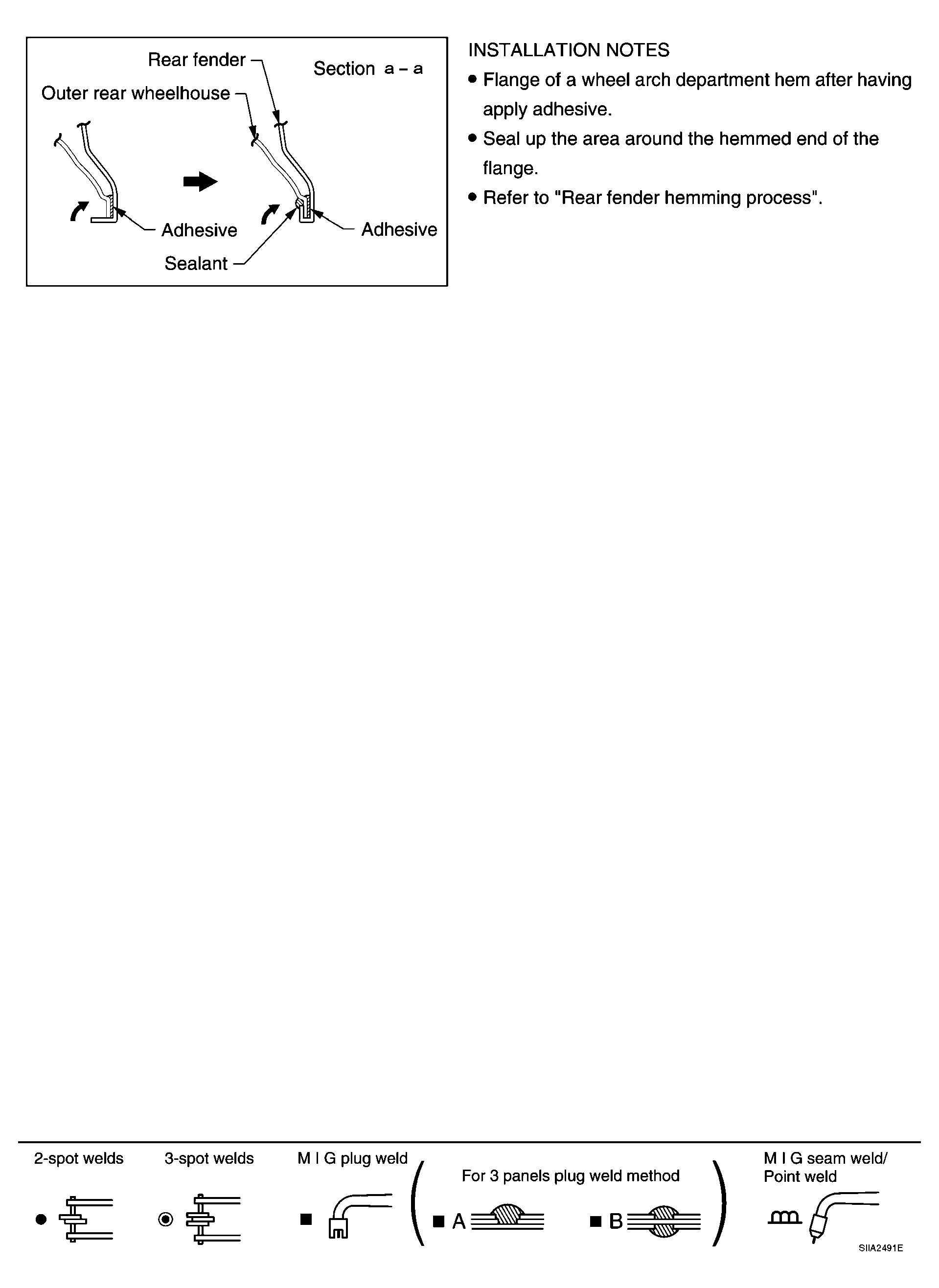

Fig 3: Installing Procedure

Courtesy of NISSAN MOTOR CO., U.S.A.
