Front Side Member (AWD)

• Work after hoodledge has been removed.

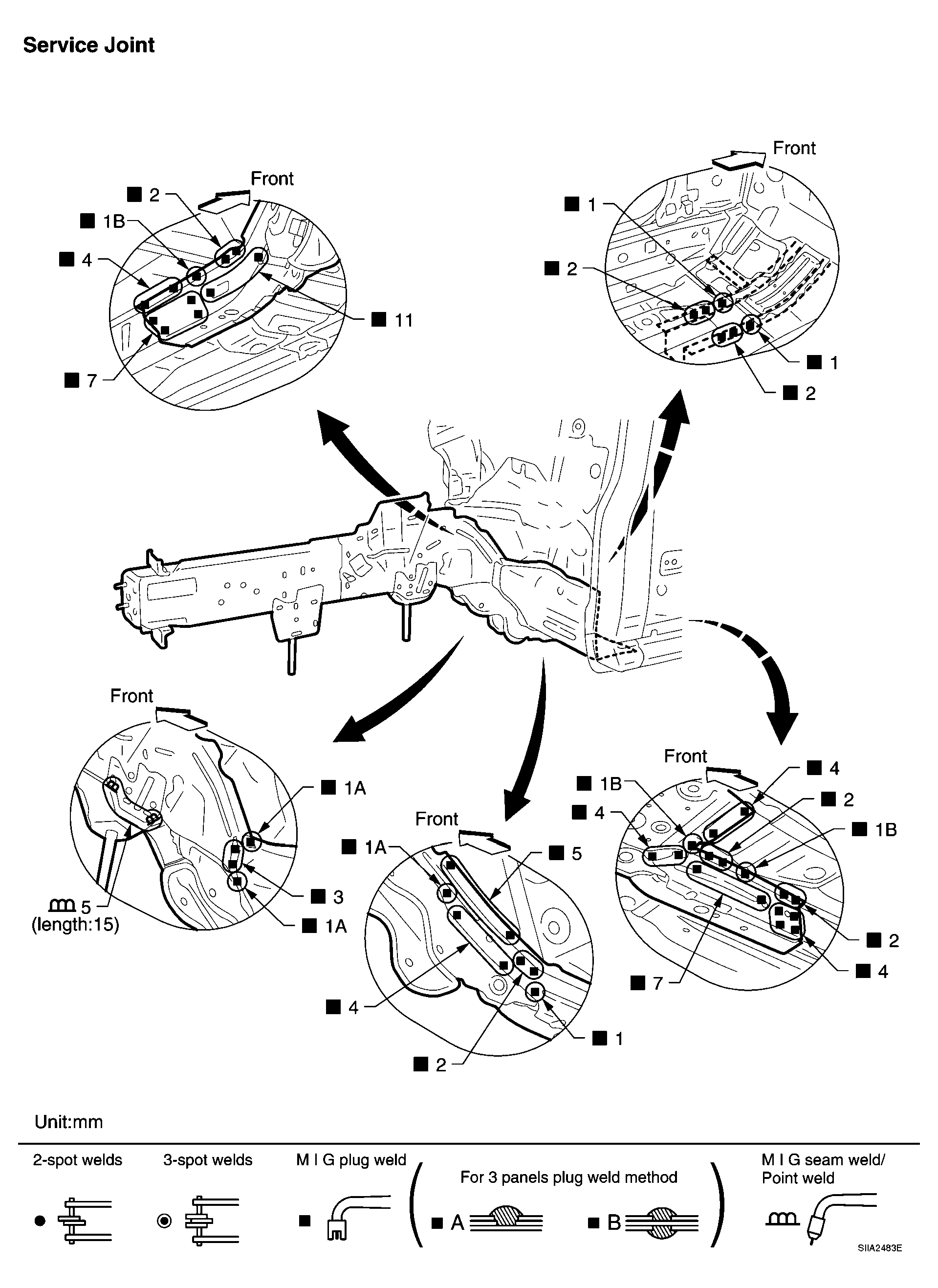

Fig 1: Identifying Service Joint - Front Side Member (AWD) (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Change parts

• Front side member assembly (LH)
• Front side member closing plate assembly (LH)
• Front side member outrigger assembly (LH)
• Front side member rear reinforcement (LH)

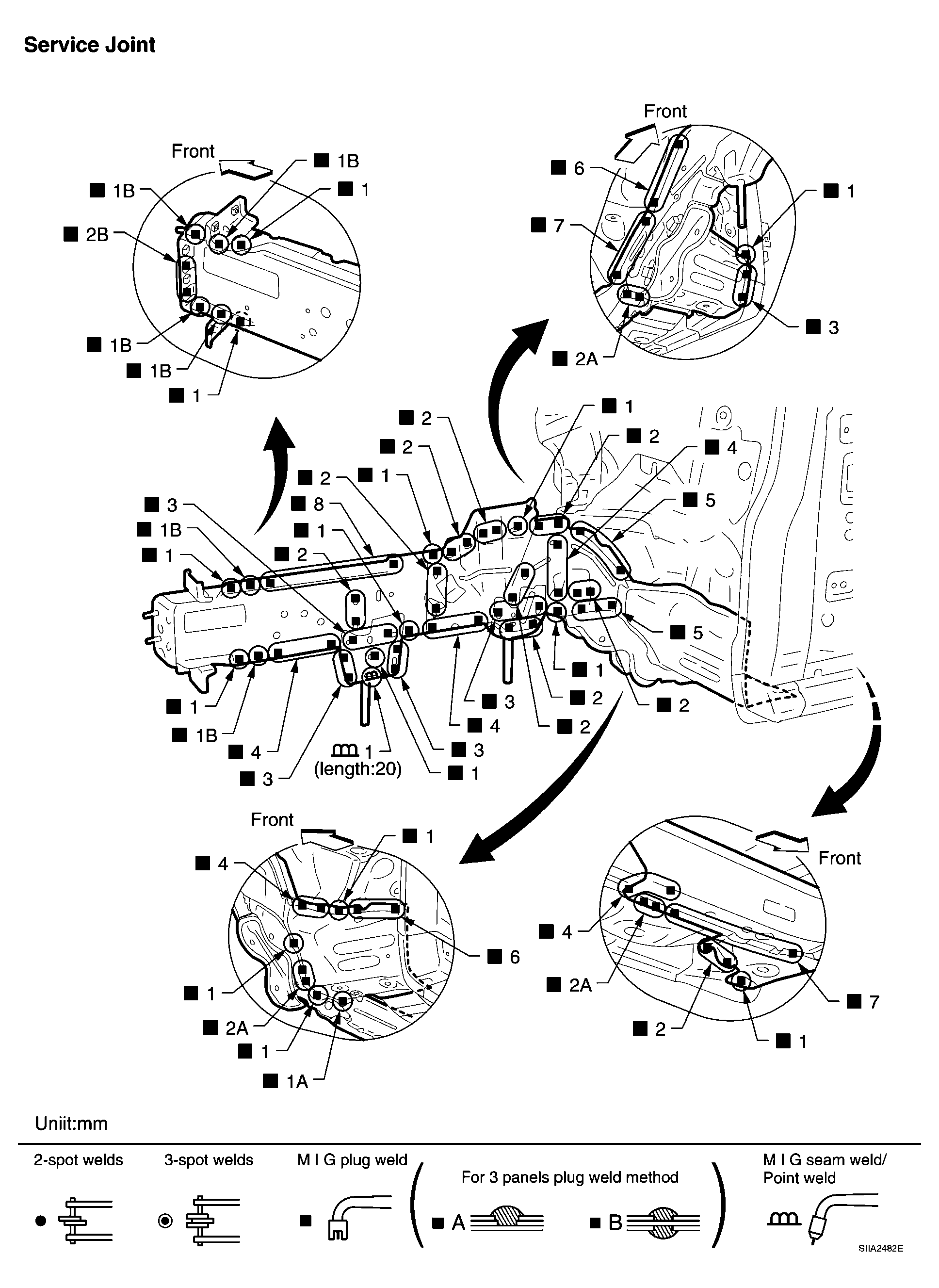

Fig 2: Identifying Service Joint - Front Side Member (AWD) (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
