Center Pillar

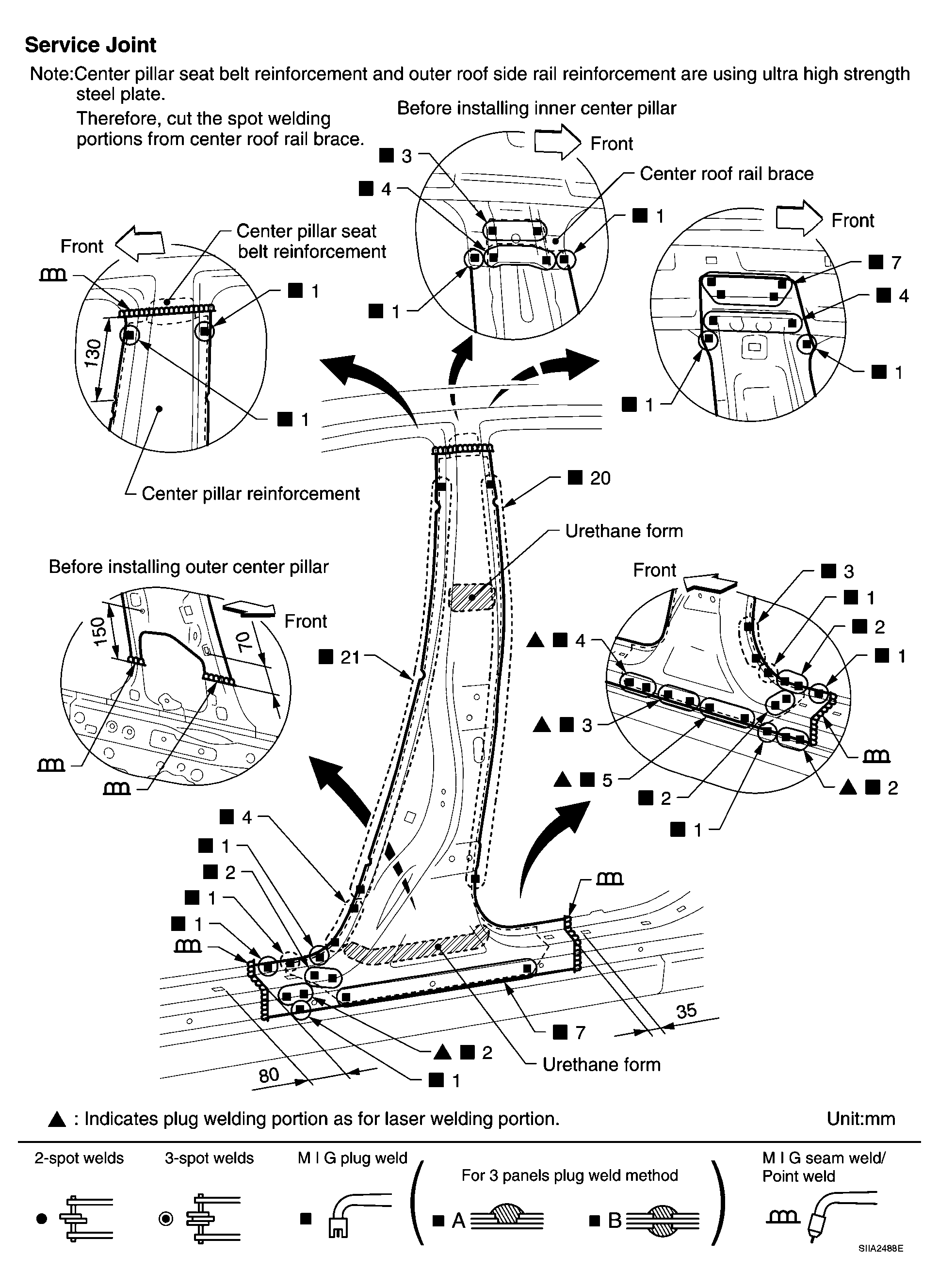

Fig 1: Identifying Center Pillar Service Joints

G04145547

Courtesy of NISSAN MOTOR CO., U.S.A.

Change parts

Side body assembly (LH)
Inner center pillar (LH)
