Measurement Points

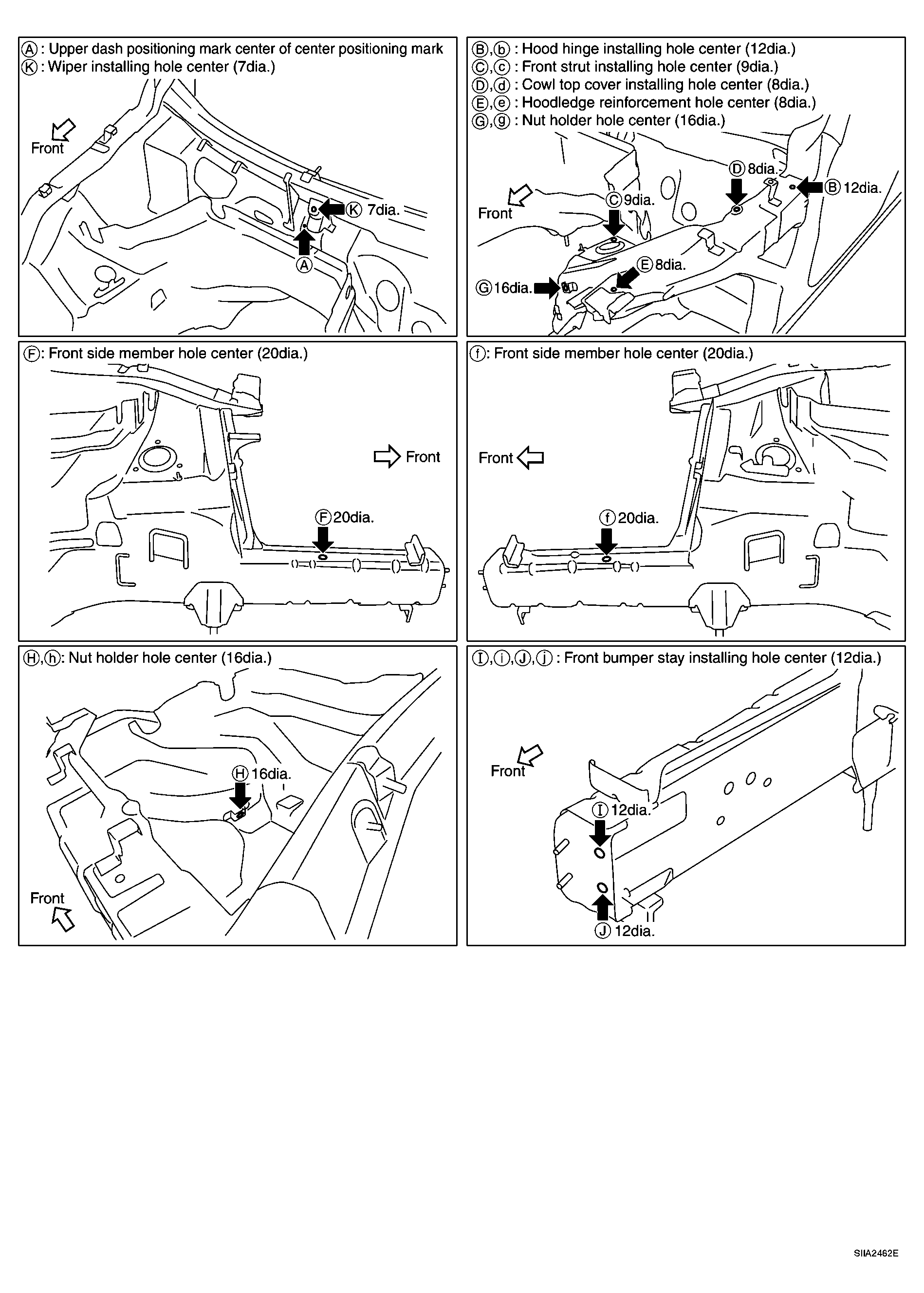

Fig 1: Identifying Measurement Points
G04145511Courtesy of NISSAN MOTOR CO., U.S.A.
