Input/Output Signal Chart
>>
AWD models
AWD models

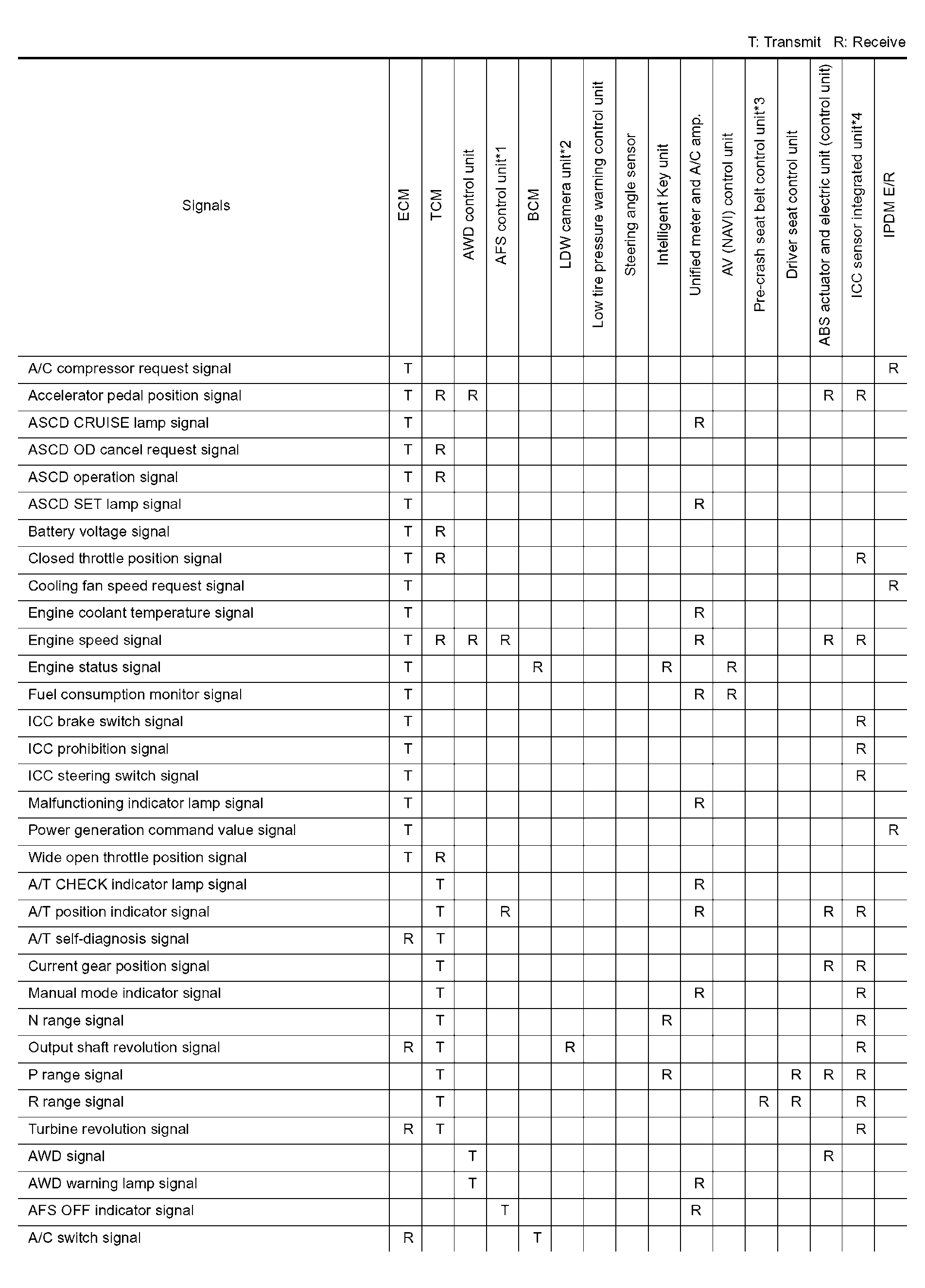

Fig 1: Input/Output Signal Chart - AWD Models (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

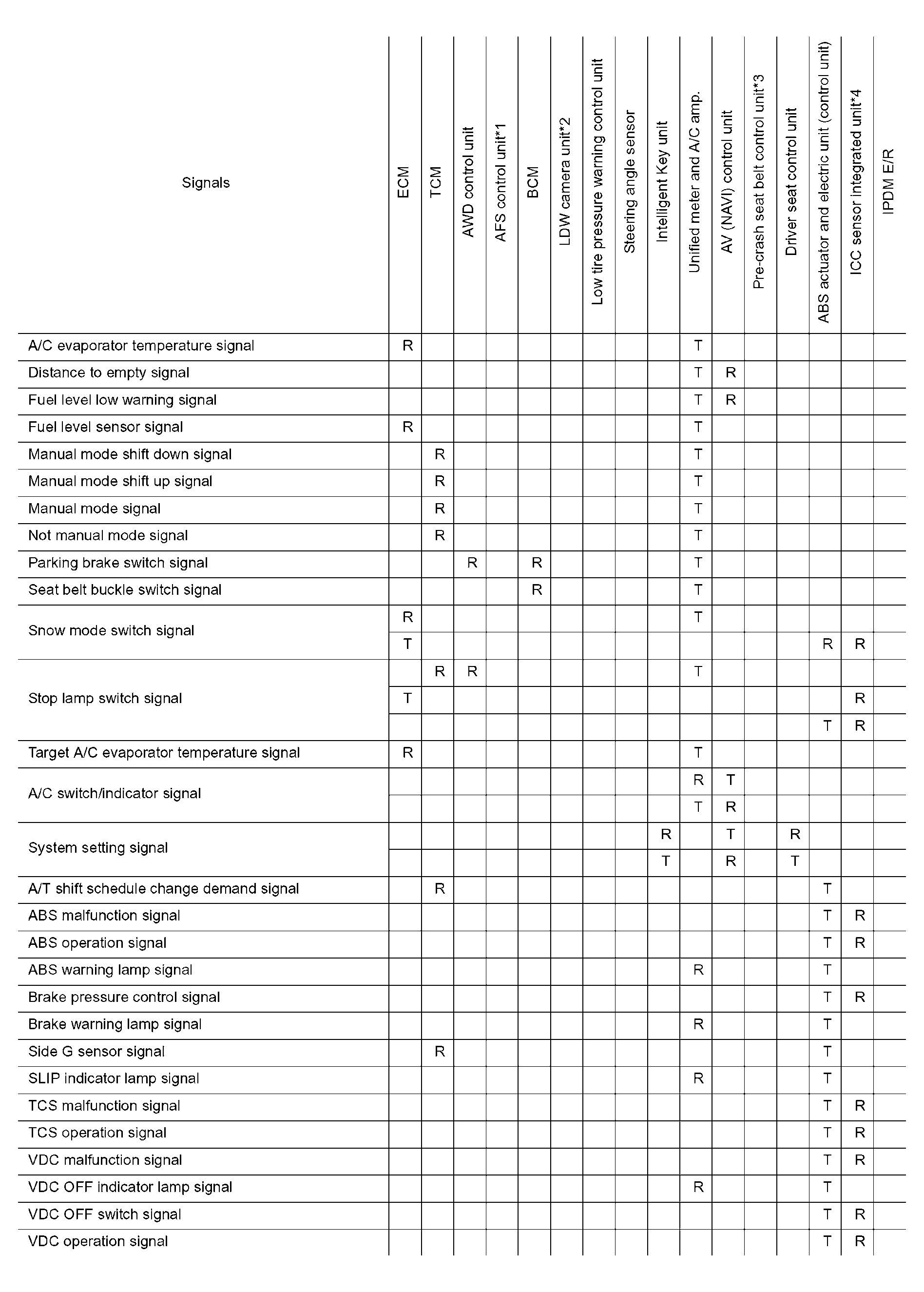

Fig 2: Input/Output Signal Chart - AWD Models (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

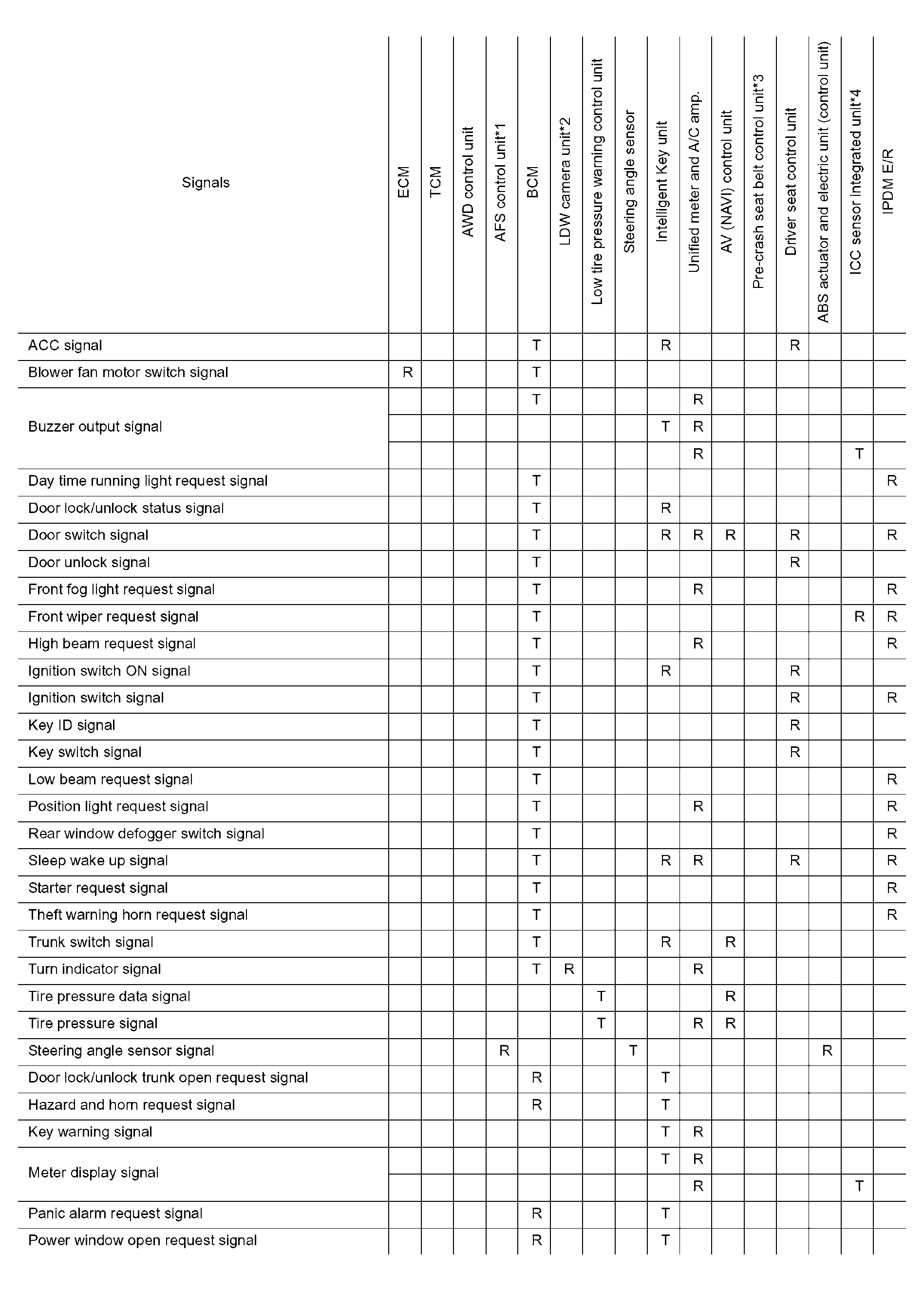

Fig 3: Input/Output Signal Chart - AWD Models (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

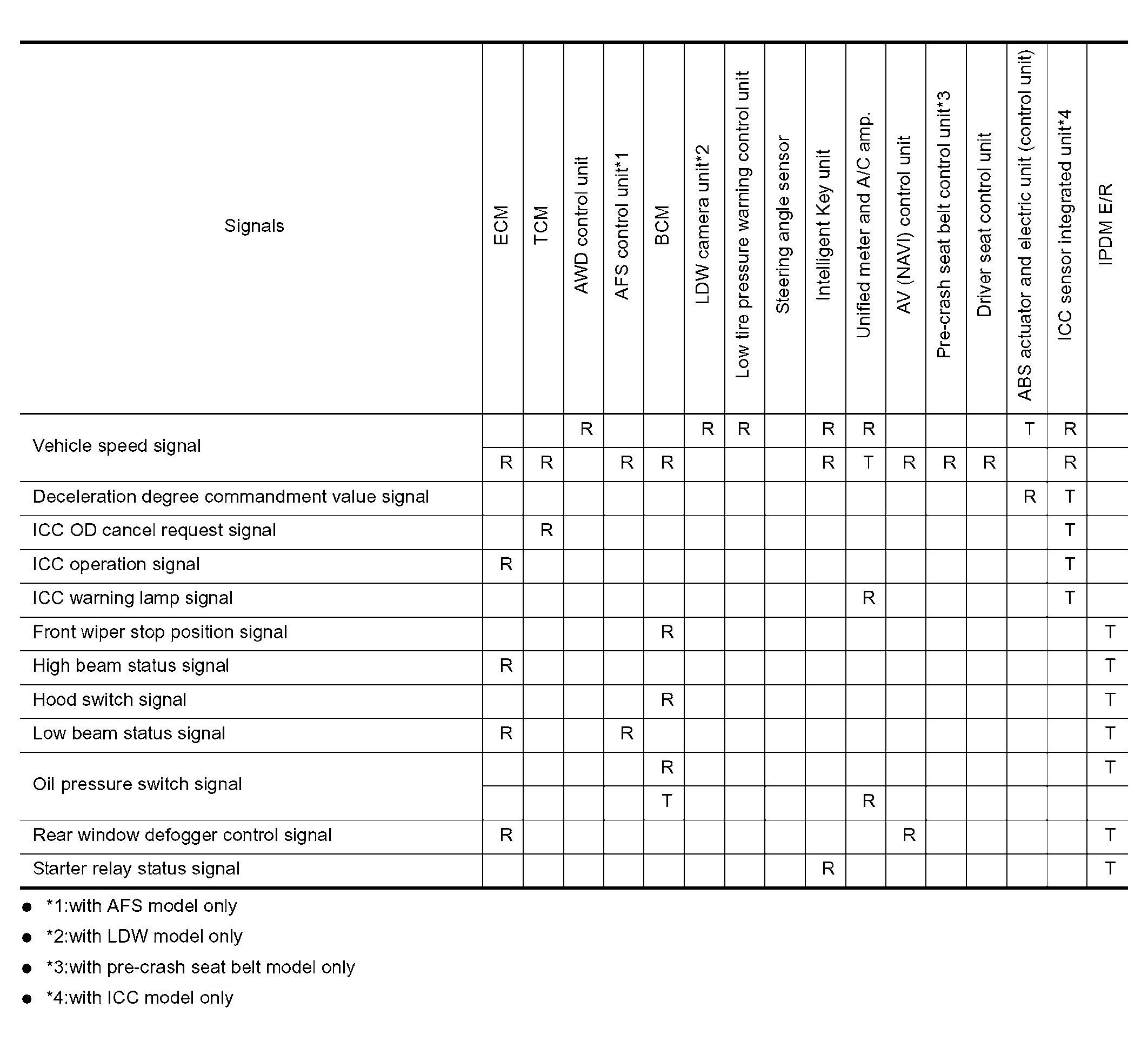

Fig 4: Input/Output Signal Chart - AWD Models (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
