Home >> Infiniti >> 2006 >> G35 x >> Repair and Diagnosis >> Transmission >> Automatic Transmission (Sedan) >> Shift Control System >> Control Rod Removal and Installation >> Removal

Control Rod Removal and Installation: Removal

  1. Disconnect lower lever of control device and control rod.
  2. Remove manual lever from A/T assembly.
  3. Remove control rod from vehicle.

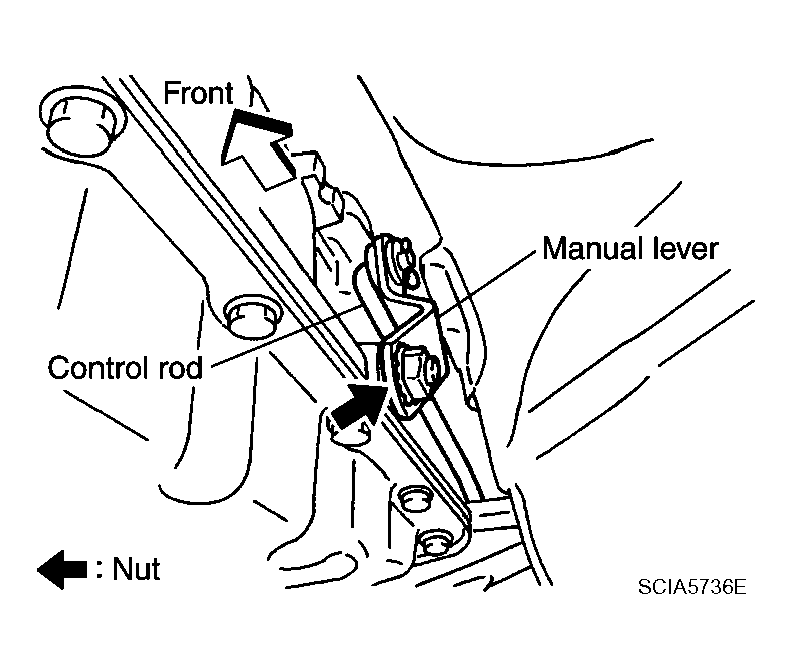

    Fig 1: Identifying Manual Lever From A/T Assembly
    G04120797Courtesy of NISSAN MOTOR CO., U.S.A.
