Shift Change System Diagram

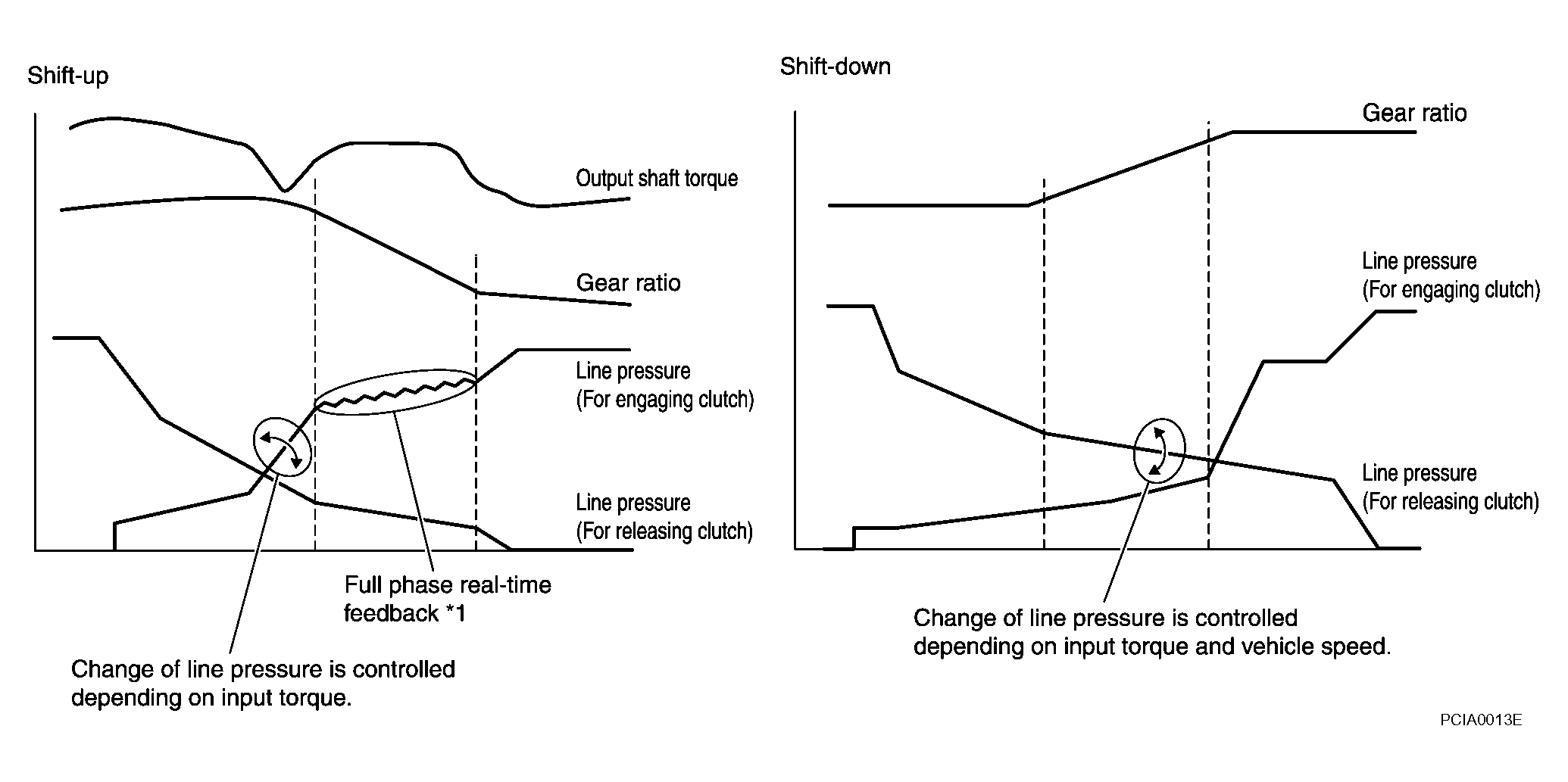

Fig 1: Shift Change System Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Full phase real-time feedback control monitors movement of gear ratio at gear change, and controls oil pressure at real-time to achieve the best gear ratio.
