Electrical Component Locator (Sedan): Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| B1 (SMJ) | At left side of dash. See Figure. |
| B2 (White, 18 Pin) | At left kick panel. See Figure. |
| B19 (White, 18 Pin) | At left "B" pillar. See Figure. |
| B25 (White, 18 Pin) | At right "B" pillar. See Figure. |
| B35 (White, 2 Pin) | At lower left side of dash. See Figure. |
| B104 (Gray, 2 Pin) | Center of rear bumper. See Figure. |
| B108 (Green, 6 Pin) | At right rear of vehicle, behind wheelwell. See Figure. |
| B110 (Gray, 2 Pin) | On rear of trunk lid. See Figure. |
| B151 (Gray, 2 Pin) | Center of rear bumper. See Figure. |
| B201 (Green, 6 Pin) | At right rear of vehicle, behind wheelwell. See Figure. |
| B221 (Gray, 2 Pin) | On rear of trunk lid. See Figure. |
| B401 (SMJ) | Behind right side of dash. See Figure. |
| D1 (SMJ) | At left kick panel. See Figure. |
| D31 (SMJ) | At right kick panel. See Figure. |

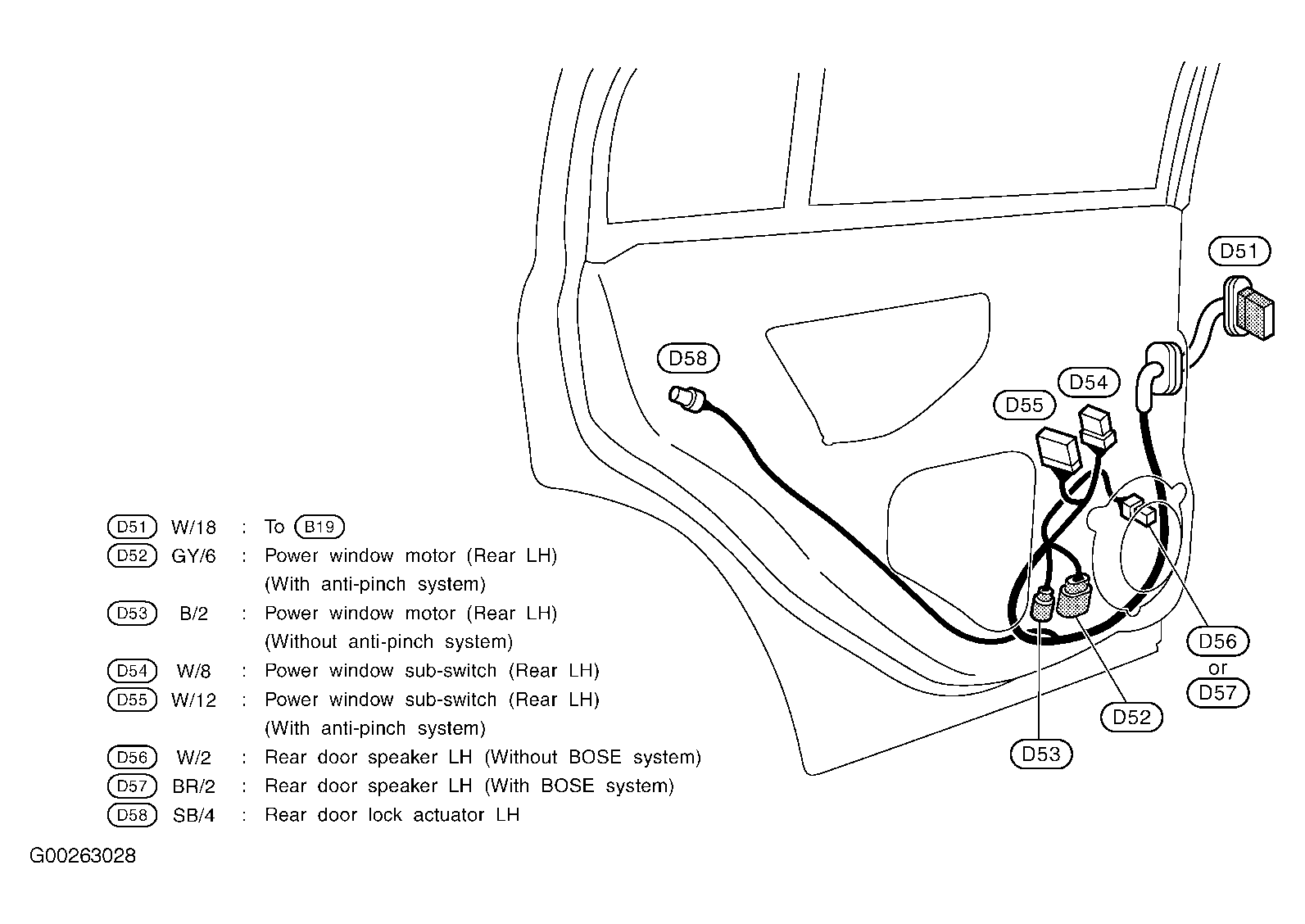

| D51 (White, 18 Pin) | At left "B" pillar. See Figure. |

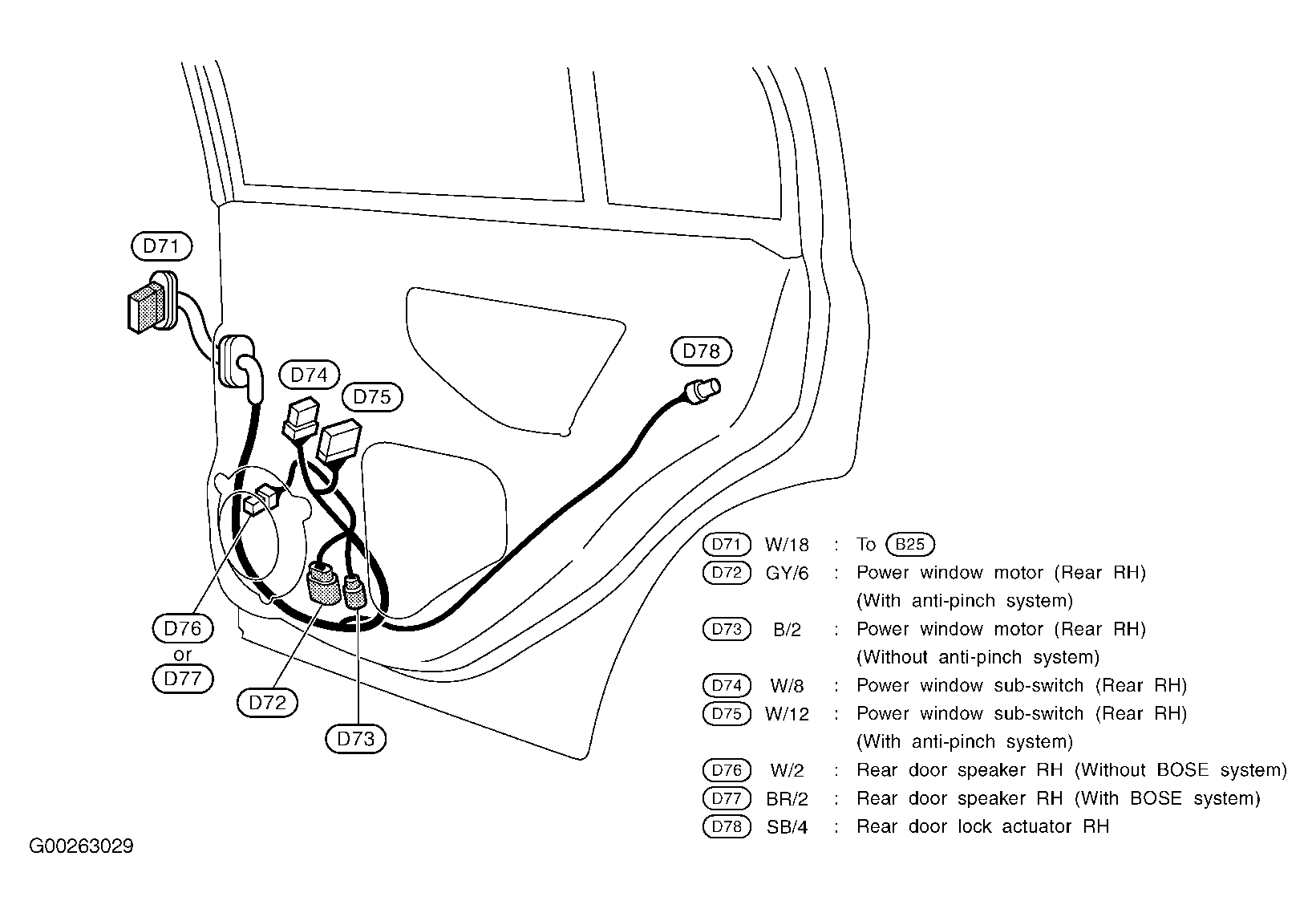

| D71 (White, 18 Pin) | At right "B" pillar. See Figure. |
| E10 (Gray, 9 Pin) | At right rear of engine compartment. See Figure. |
| E11 (Gray, 10 Pin) | At right rear of engine compartment. See Figure. |
| E12 (Black, 8 Pin) | At right rear of engine compartment. See Figure. |
| E105 (Brown, 16 Pin) | Below left side of dash. See Figure. |
| E106 (White, 18 Pin) | At left kick panel. See Figure. |
| E108 (SMJ) | Behind left side of dash. See Figure. |
| E109 (Yellow, 4 Pin) | Behind left side of dash. See Figure. |
| E112 (White, 6 Pin) | Behind left side of dash. See Figure. |
| E120 (White, 2 Pin) | Behind lower left side of dash. See Figure. |
| F1 (AWD) (Gray, 9 Pin) | At right rear of engine compartment. See Figure. |
| F1 (2WD) (Gray, 9 Pin) | At right rear of engine compartment. See Figure. |
| F2 (AWD) (Gray, 10 Pin) | At right rear of engine compartment. See Figure. |
| F2 (2WD) (Gray, 10 Pin) | At right rear of engine compartment. See Figure. |
| F3 (AWD) (Black, 8 Pin) | At right rear of engine compartment. See Figure. |
| F3 (2WD) (Black, 8 Pin) | At right rear of engine compartment. See Figure. |
| F6 (M/T) (Brown, 2 Pin) | Front of engine. See Figure. |
| F18 (AWD) (Black, 6 Pin) | At top front of engine. See Figure. |
| F18 (2WD) (Black, 6 Pin) | At top front of engine. See Figure. |
| F33 (AWD) (Gray, 8 Pin) | At top left side of engine. See Figure. |
| F33 (2WD) (Green, 8 Pin) | At top left side of engine. See Figure. |
| F37 (AWD) (Black, 2 Pin) | At right rear of engine. See Figure. |
| F37 (2WD) (Black, 2 Pin) | At top rear of engine. See Figure. |
| F102 (SMJ) | Behind right kick panel. See Figure. |
| F108 (SMJ) | Behind right kick panel. See Figure. |
| F201 (AWD) (Blue, 6 Pin) | At top middle of engine. See Figure. |
| F201 (2WD) (Blue, 6 Pin) | At top middle of engine. See Figure. |
| F221 (AWD) (Green, 8 Pin) | At top left side of engine. See Figure. |
| F221 (2WD) (Green, 8 Pin) | At top left side of engine. See Figure. |
| F229 (AWD) (Light Blue, 2 Pin) | At right rear of engine. See Figure. |
| F229 (2WD) (Light Blue, 2 Pin) | At right rear of engine. See Figure. |
| F241 (M/T) (Brown, 2 Pin) | Front of engine. See Figure. |
| M11 (SMJ) | Behind left kick panel. See Figure. |
| M12 (SMJ) | Behind left side of dash. See Figure. |
| M13 (Brown, 16 Pin) | Below left side of dash. See Figure. |
| M15 (SMJ) | Behind left side of dash. See Figure. |
| M16 (Yellow, 4 Pin) | Behind left side of dash. See Figure. |
| M70 (White, 18 Pin) | Behind right side of dash. See Figure. |
| M71 (White, 32 Pin) | Under center console. See Figure. |
| M72 (SMJ) | Behind right kick panel. See Figure. |
| M74 (SMJ) | Behind right kick panel. See Figure. |
| M87 (SMJ) | Behind right side of dash. See Figure. |
| M89 (White, 12 Pin) | Behind right side of dash. See Figure. |
| M101 (W/O Intelligent Key) (White, 8 Pin) | In steering column. See Figure. |
| M102 (W/Intelligent Key) (White, 12 Pin) | In steering column. See Figure. |
| M156 (M/T) (White, 12 Pin) | Under center console. See Figure. |
| M171 (W/Intelligent Key) (White, 32 Pin) | Under center console. See Figure. |
| M301 (W/O Intelligent Key) (White, 8 Pin) | In steering column. See Figure. |
| M302 (W/Intelligent Key) (White, 12 Pin) | In steering column. See Figure. |
| M305 (White, 6 Pin) | Behind left side of dash. See Figure. |
| R2 (White, 18 Pin) | Behind right side of dash. See Figure. |
| R5 (White, 8 Pin) | At right front of roof. See Figure. |
| R10 (White, 16 Pin) | Right front of roof. See Figure. |
| R51 (White, 8 Pin) | At right front of roof. See Figure. |
| R56 (White, 16 Pin) | Right front of roof. See Figure. |
