Overall Sequence

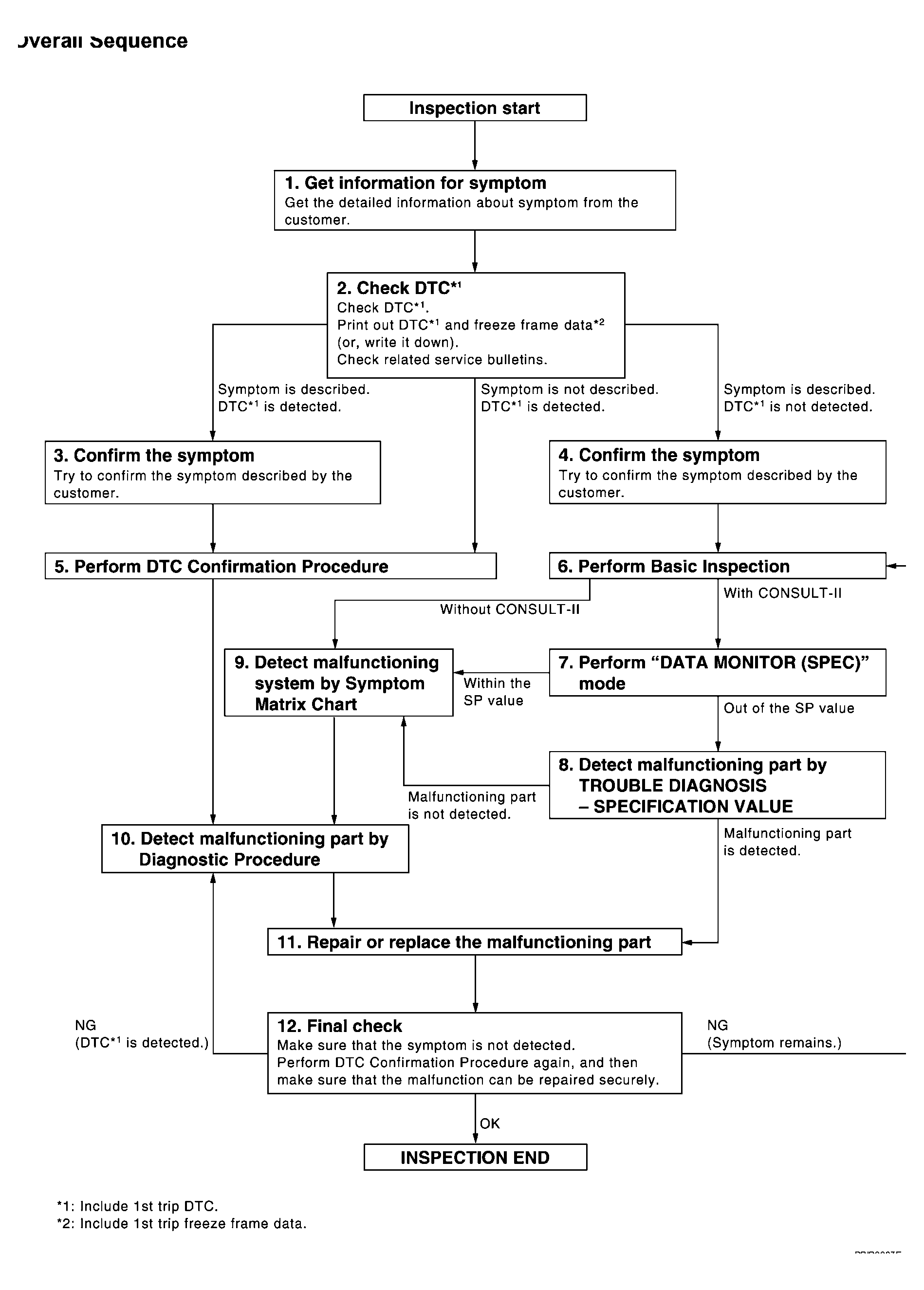

Fig 1: Trouble Diagnosis Work Flow Chart
G04119572Courtesy of NISSAN MOTOR CO., U.S.A.
