Revolution Sensor Components (2WD Models Only): Removal

Disconnect the battery cable from the negative terminal.
Drain ATF through drain plug.
Remove front cross bar. Refer to "REMOVAL AND INSTALLATION ".
Remove exhaust front tube and center muffler with power tool. Refer to "COMPONENTS ".
Remove rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
Remove control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
Remove oil pan and oil pan gasket.

Fig 1: Identifying Oil Pan Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Check foreign materials in oil pan to help determine causes of malfunction. If the ATF is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.

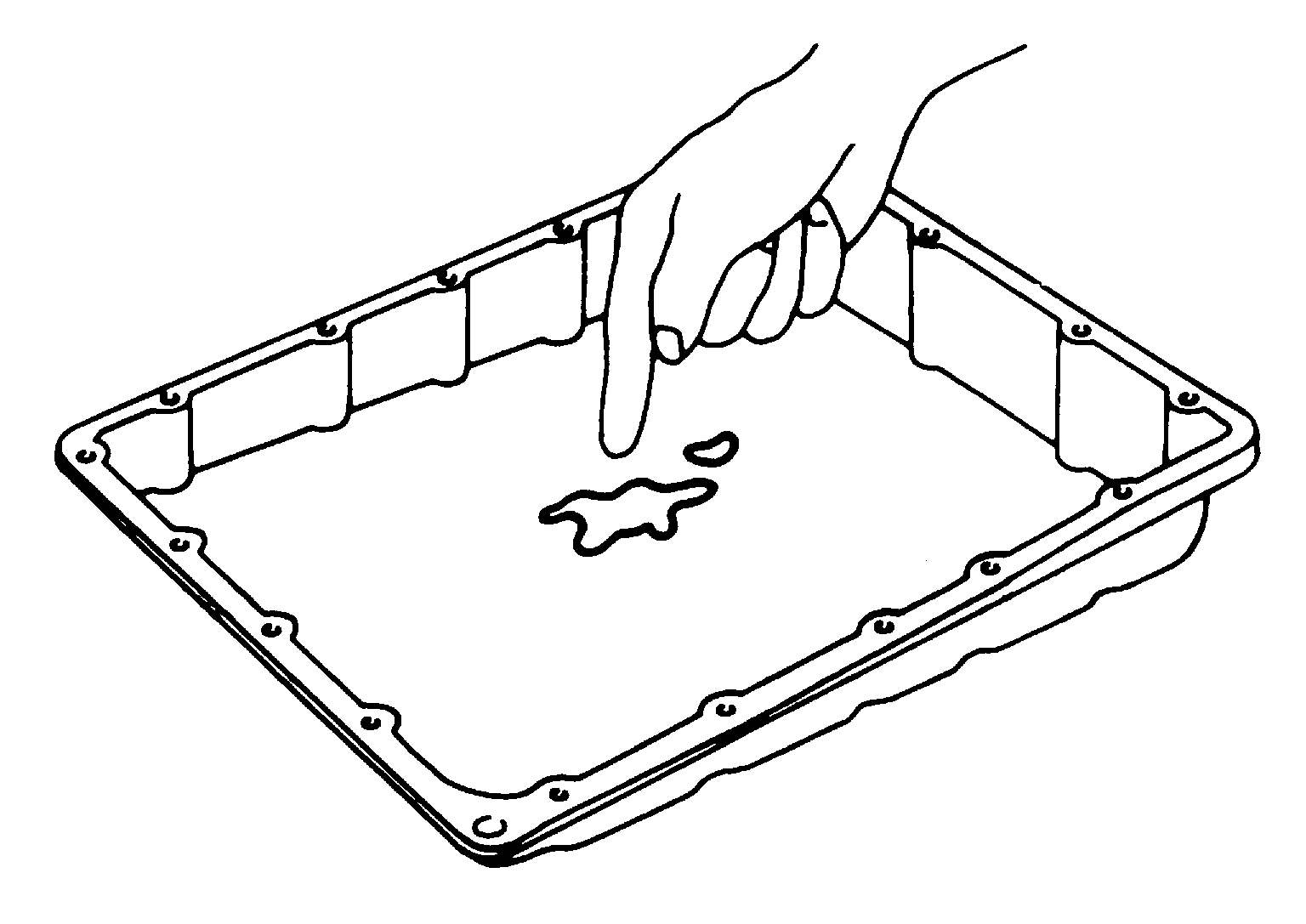

Fig 2: Checking A/T Fluid For Foreign Materials
Courtesy of NISSAN MOTOR CO., U.S.A.
- If frictional material is detected, perform A/T fluid cooler cleaning. Refer to " A/T FLUID COOLER CLEANING ".
Support A/T assembly with a transmission jack.
CAUTION: When setting transmission jack, place wooden blocks to prevent from damaging control valve with TCM and transmission case.
Remove rear engine mounting member with power tool. Refer to "REMOVAL AND INSTALLATION (2WD MODELS) ".
Remove tightening bolts for rear extension assembly and transmission case.

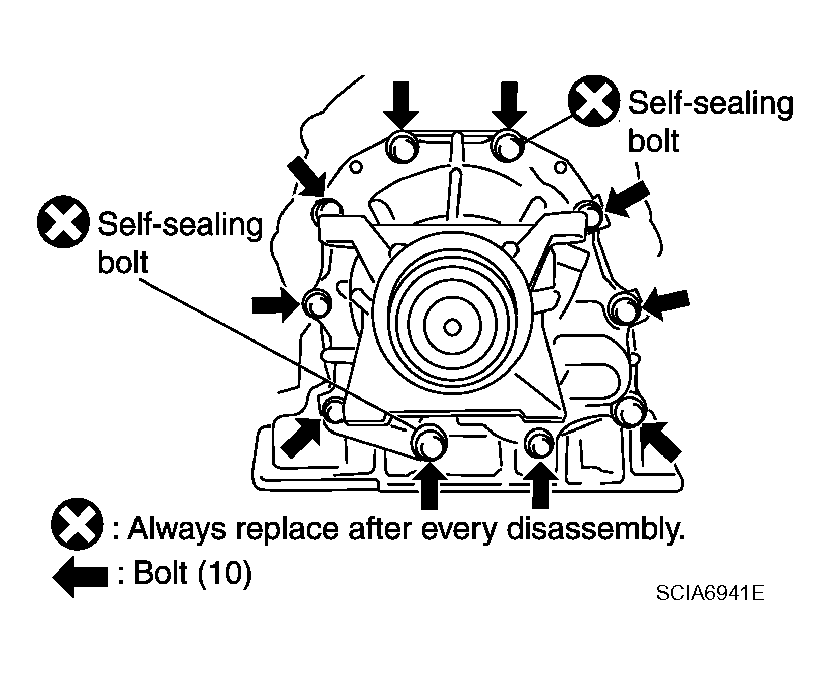

Fig 3: Identifying Tightening Bolts For Rear Extension Assembly And Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Tap rear extension assembly with soft hammer.

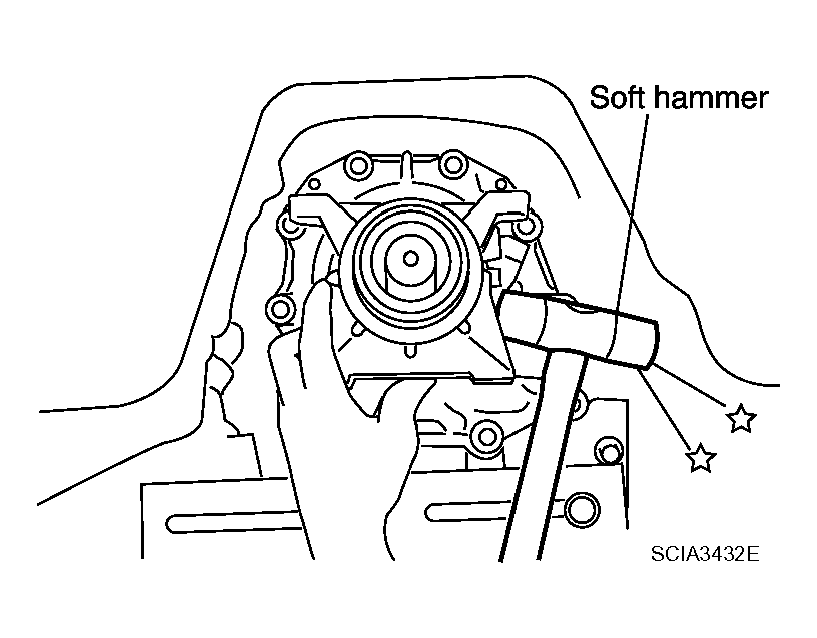

Fig 4: Taping Rear Extension Assembly With Soft Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear extension assembly from transmission case. (With needle bearing.)

Fig 5: Removing Rear Extension Assembly From Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect revolution sensor connector.
CAUTION: Be careful not to damage connector

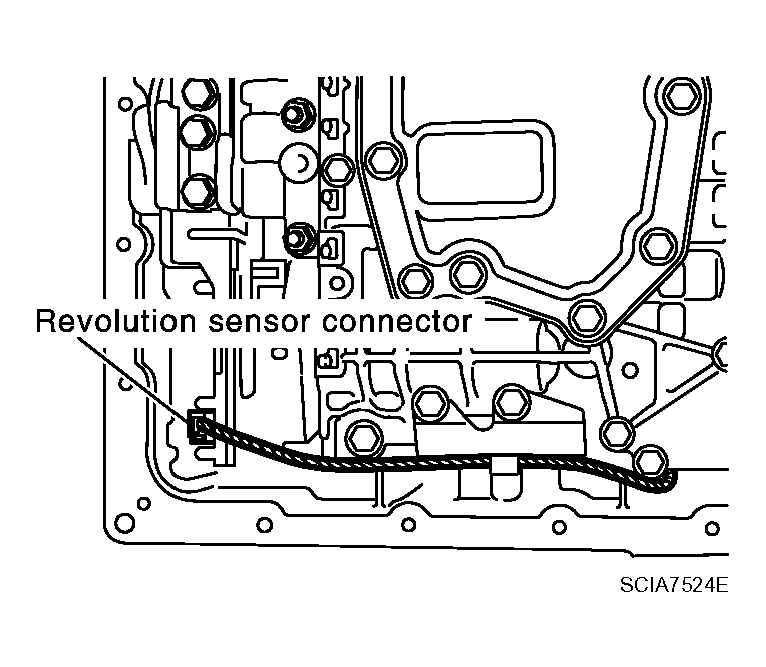

Fig 6: Identifying Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Straighten terminal clip to free revolution sensor harness.

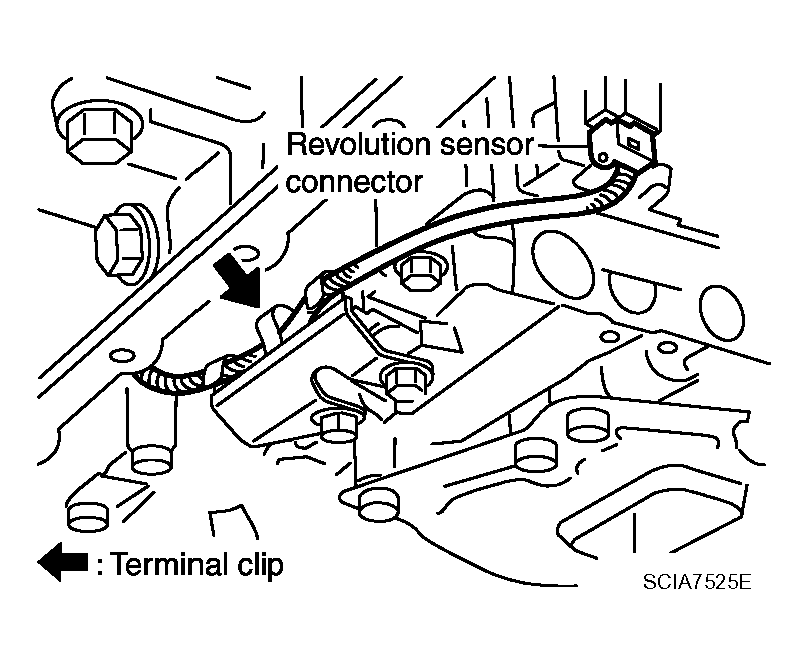

Fig 7: Straightening Terminal Clip To Free Revolution Sensor Harness
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove revolution sensor from transmission case.
CAUTION:
- Do not subject it to impact by dropping or hitting it.
- Do not disassemble.
- Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Do not place in an area affected by magnetism.

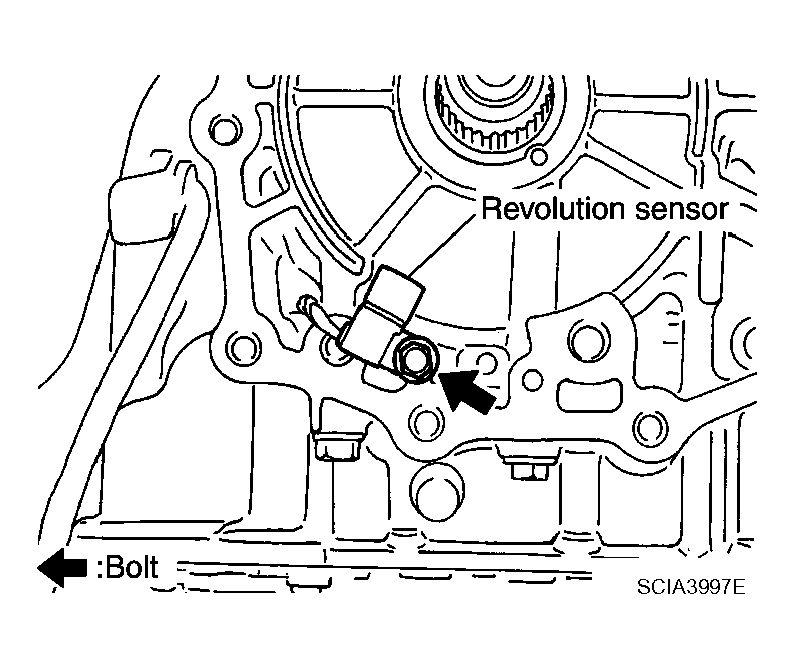

  Fig 8: Identifying Revolution Sensor From Transmission Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
