Parking Components (2WD Models Only): Components

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".

However, refer to the following symbol for others.

* : Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".

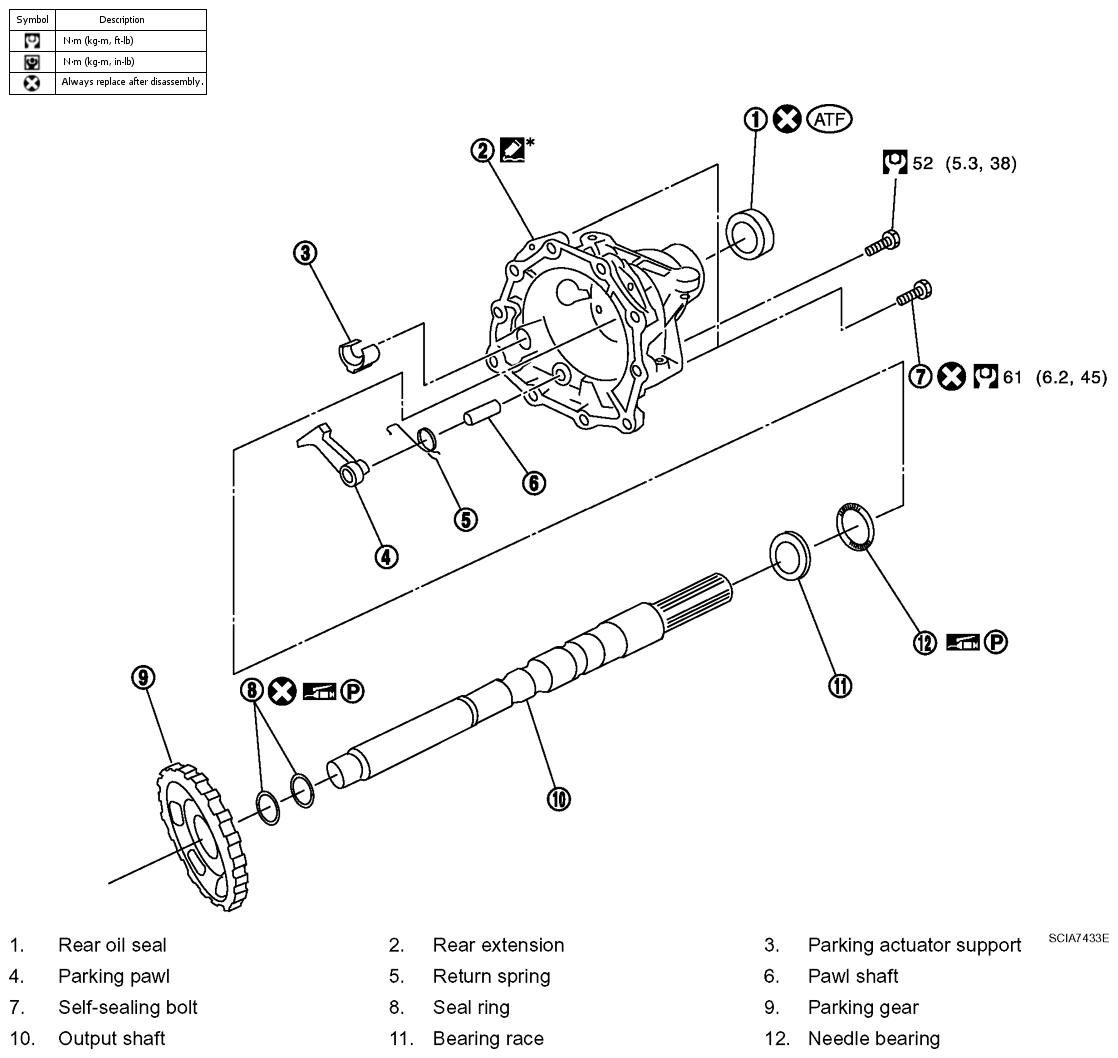

Fig 1: Parking Replacement Components With Torque Specifications (2WD Models Only)

Courtesy of NISSAN MOTOR CO., U.S.A.
