Removal and Installation: Removal

  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device assembly and remove interlock rod from adjuster holder.

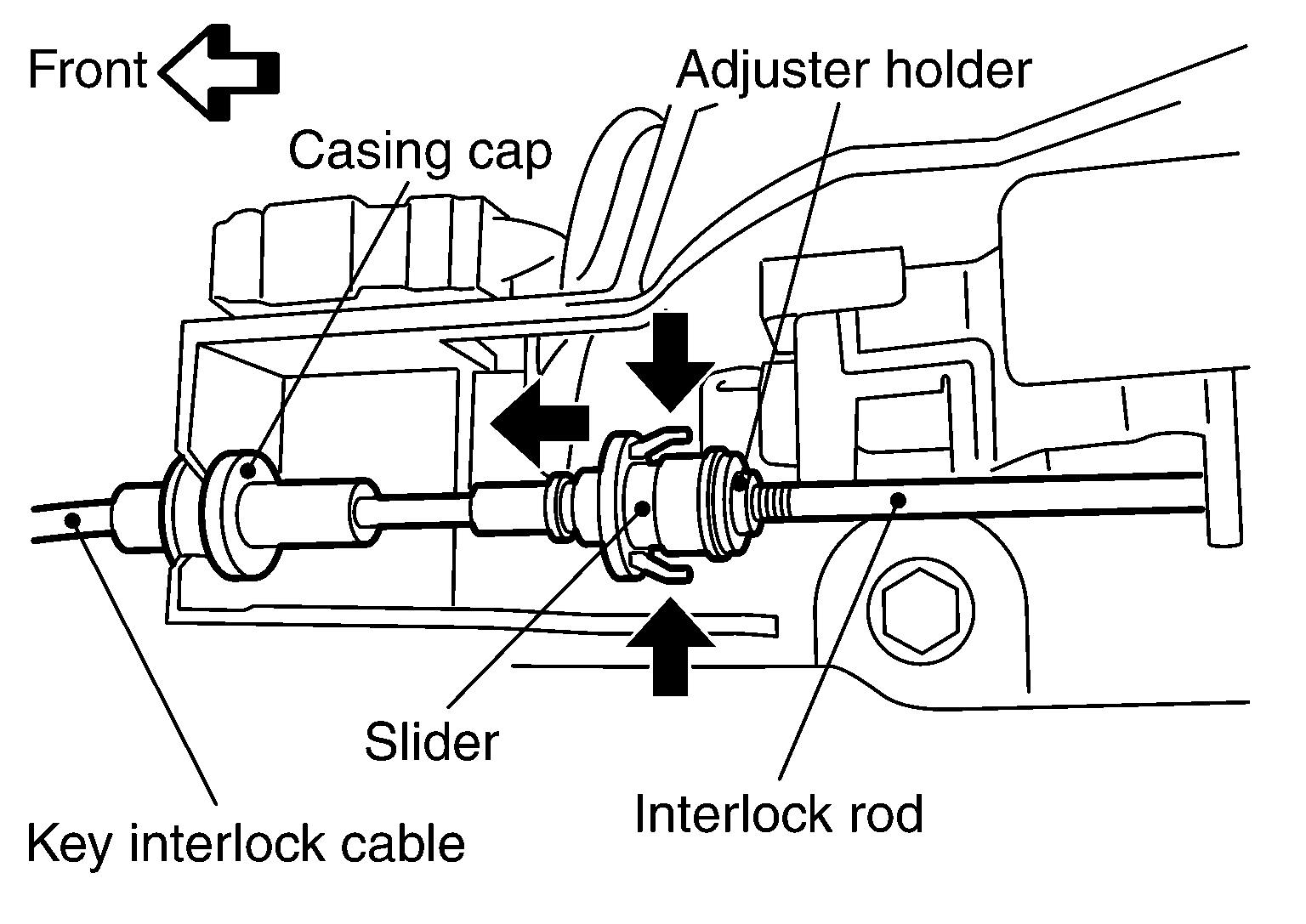

    Fig 1: Identifying Casing Cap From Bracket Of Control Device Assembly
    G04075635Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove holder (A) from key cylinder (1) and remove key interlock cable (2).

    (B) : Clips

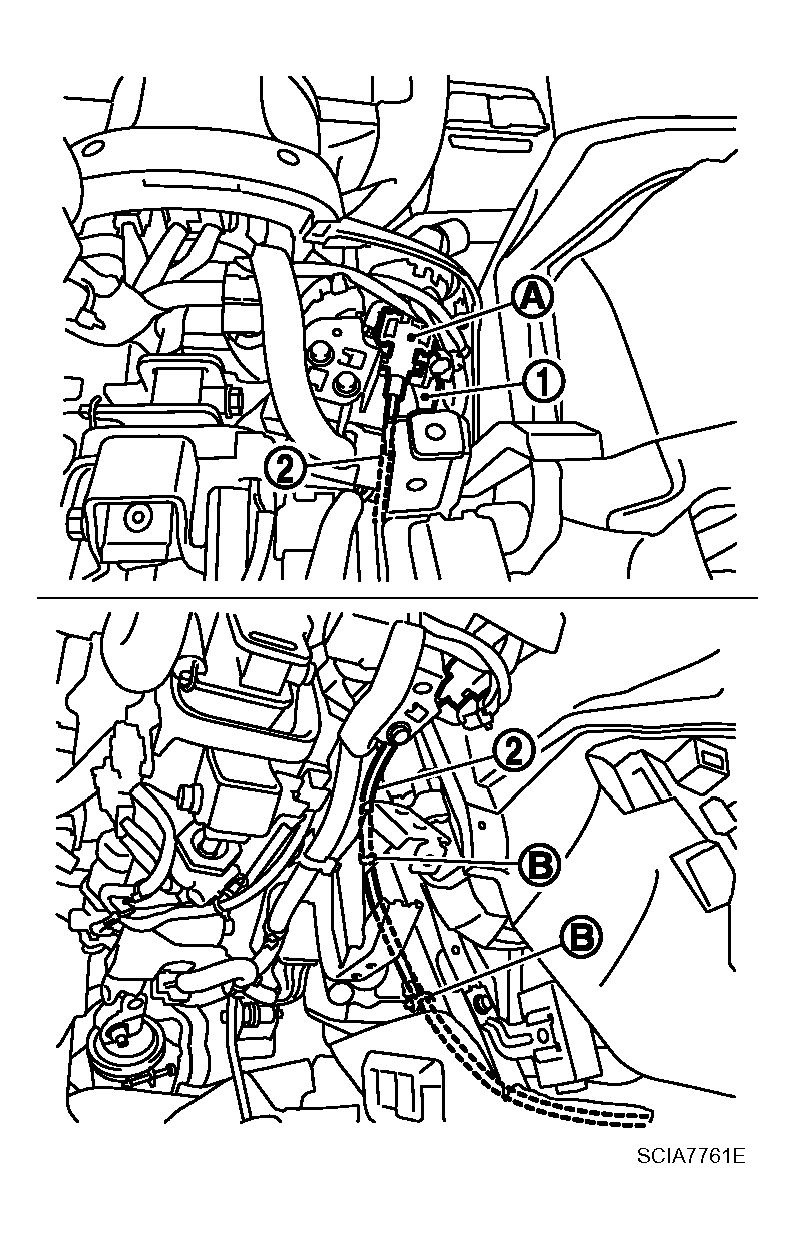

    Fig 2: Identifying Holder From Key Cylinder And Key Interlock Cable
    G04075636Courtesy of NISSAN MOTOR CO., U.S.A.
