Cross-sectional View (2WD Models)
Cross-sectional View (2WD Models)

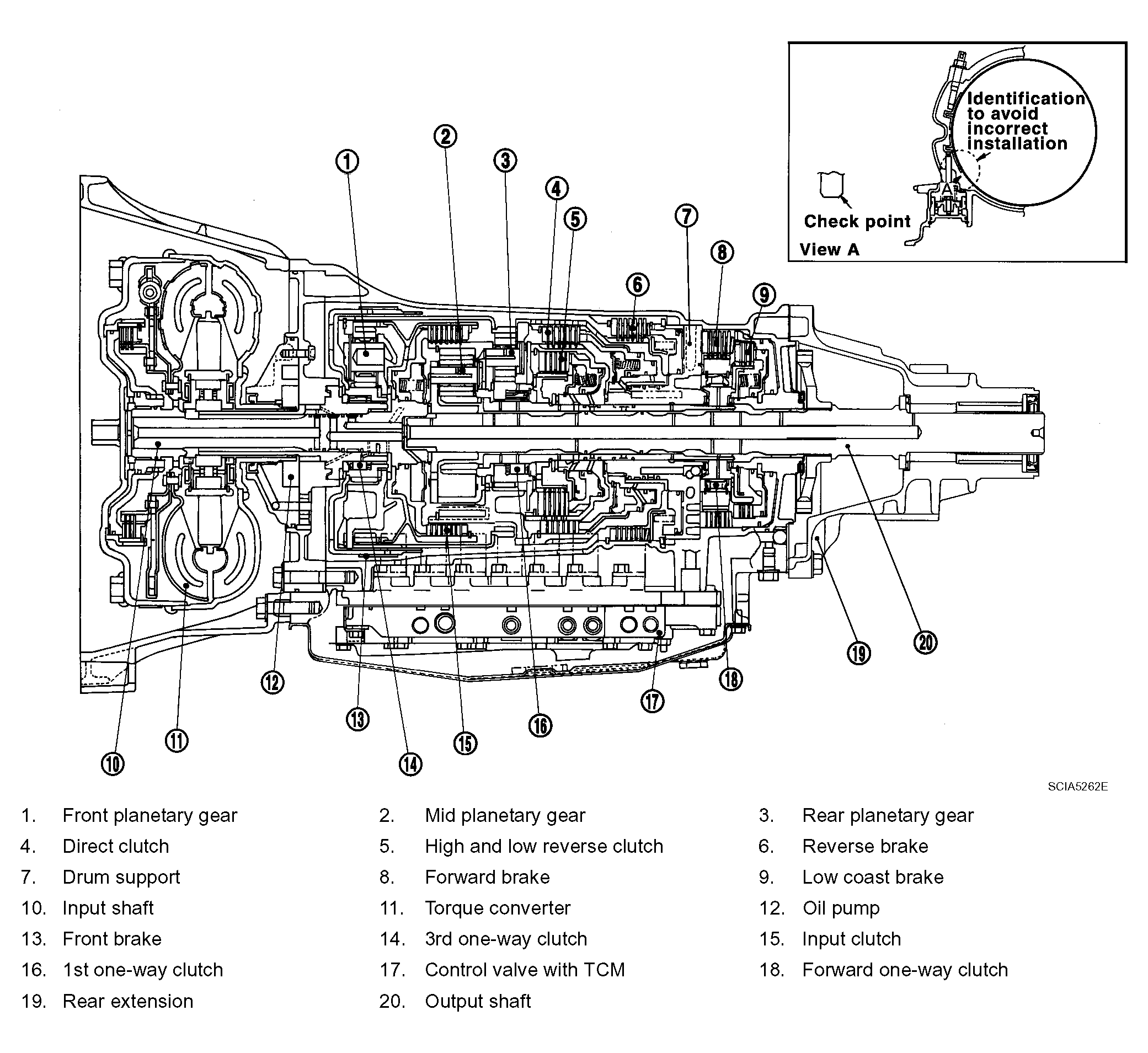

Fig 1: Cross-Sectional View Of (2WD Models) - A/T Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
