Removal and Installation: Components

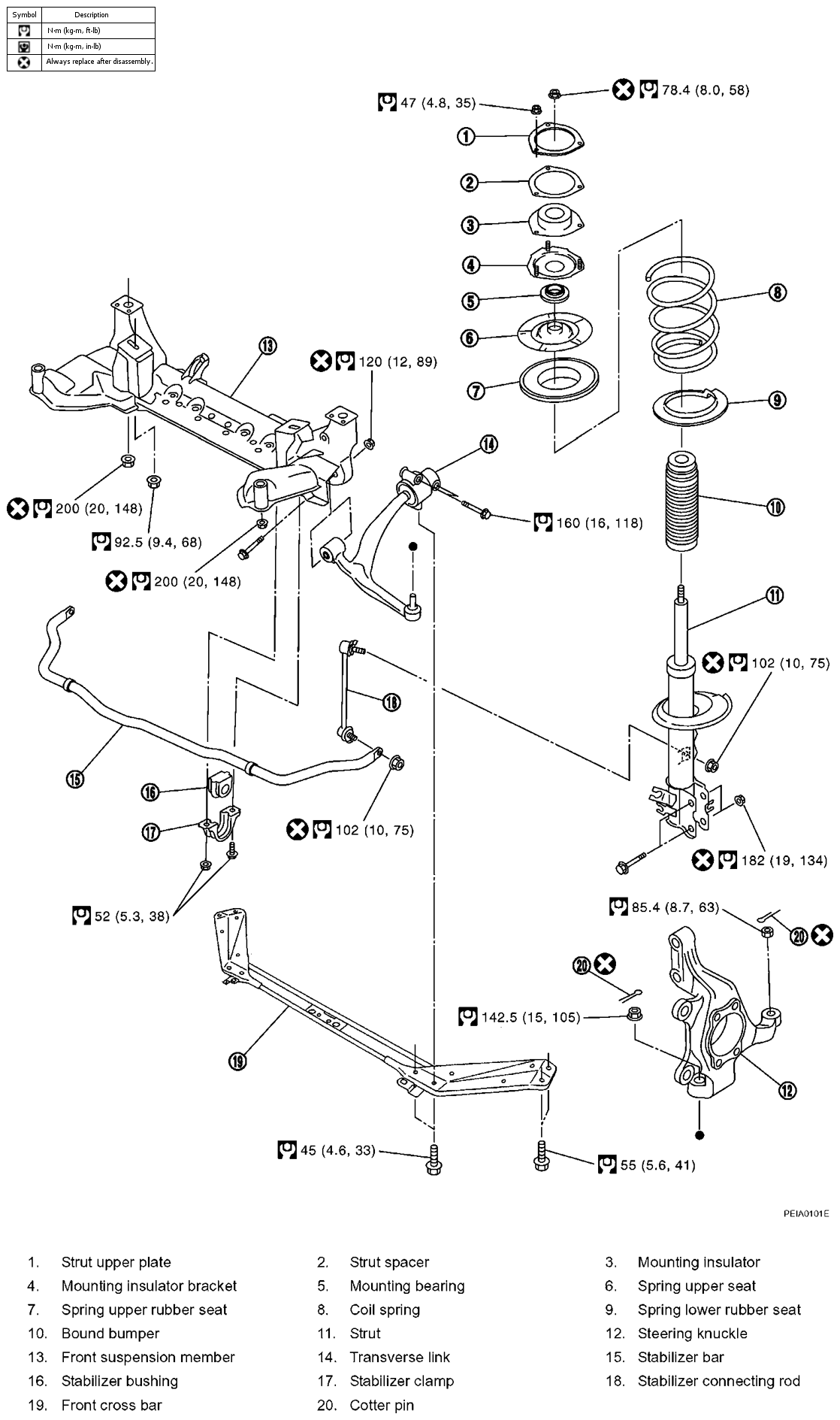

Fig 1: Replacement Components Front Suspension Assembly With Torque Specifications
G04076516Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS ", for the symbols in the figure.
