STEERING COLUMN SPECIFICATIONS
Steering column length "L1"
572 mm (22.52 in)

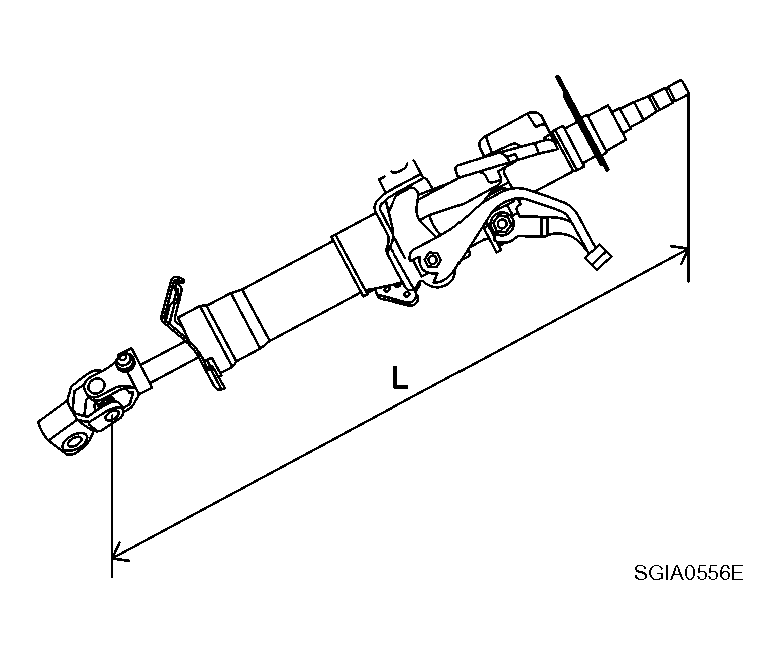

Fig 1: Identifying Steering Column Length
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
