Removal and Installation of Rear View Camera Control Unit: Removal

  1. Remove instrument clock finisher and A/T console finisher.

    Refer to "INSTRUMENT PANEL ASSEMBLY ".

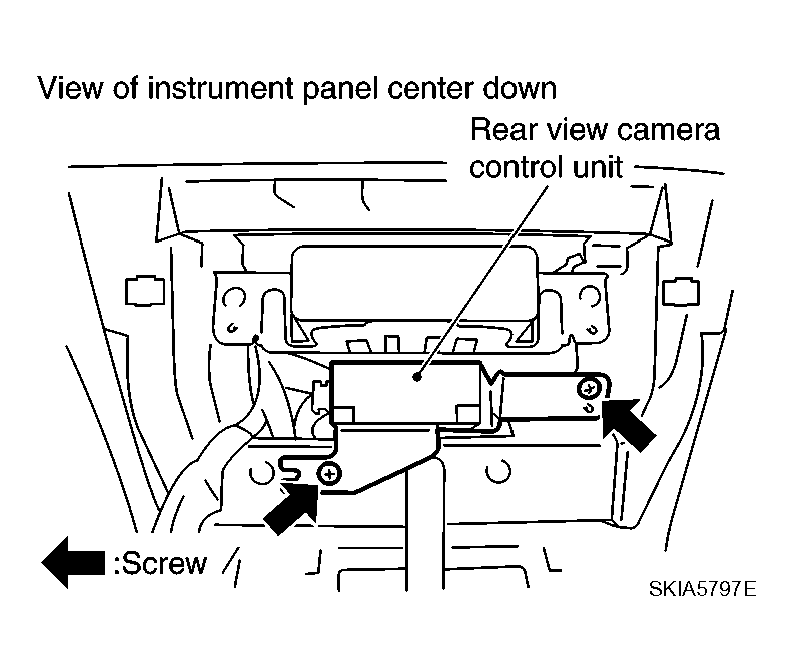

  2. Remove screws (2), and remove rear view camera control unit.
    Fig 1: Identifying Instrument Clock Finisher And A/T Console Finisher
    G04078654Courtesy of NISSAN MOTOR CO., U.S.A.
